OpenH-RF Makes Raw Ultrasound Data Usable at Scale

Most public ultrasound datasets begin after beamforming, with reconstructed B-mode images rather than the radio-frequency channel signals that generated them. That omission matters for methods that must alter image formation itself: aberration correction, speed-of-sound estimation, reverberation reduction, Doppler processing, and learned beamforming all depend on transmit-by-receive measurements and acquisition geometry. OpenH-RF assembles those inputs into a shared public resource rather than another task-specific image collection.

Core Contribution

The paper introduces OpenH-RF, a community dataset initiative containing approximately 40 TB of medical ultrasound raw channel data across 19,332 acquisitions from 38 institutions in academia and industry. It combines in-vivo, phantom, and simulated acquisitions, and attaches the information required to reproduce reconstruction: probe and acquisition parameters, metadata, and reconstruction details. The contribution is therefore not a new beamformer or model result. It is a common representation intended to make such work reproducible across scanners, probe geometries, and acquisition schemes.

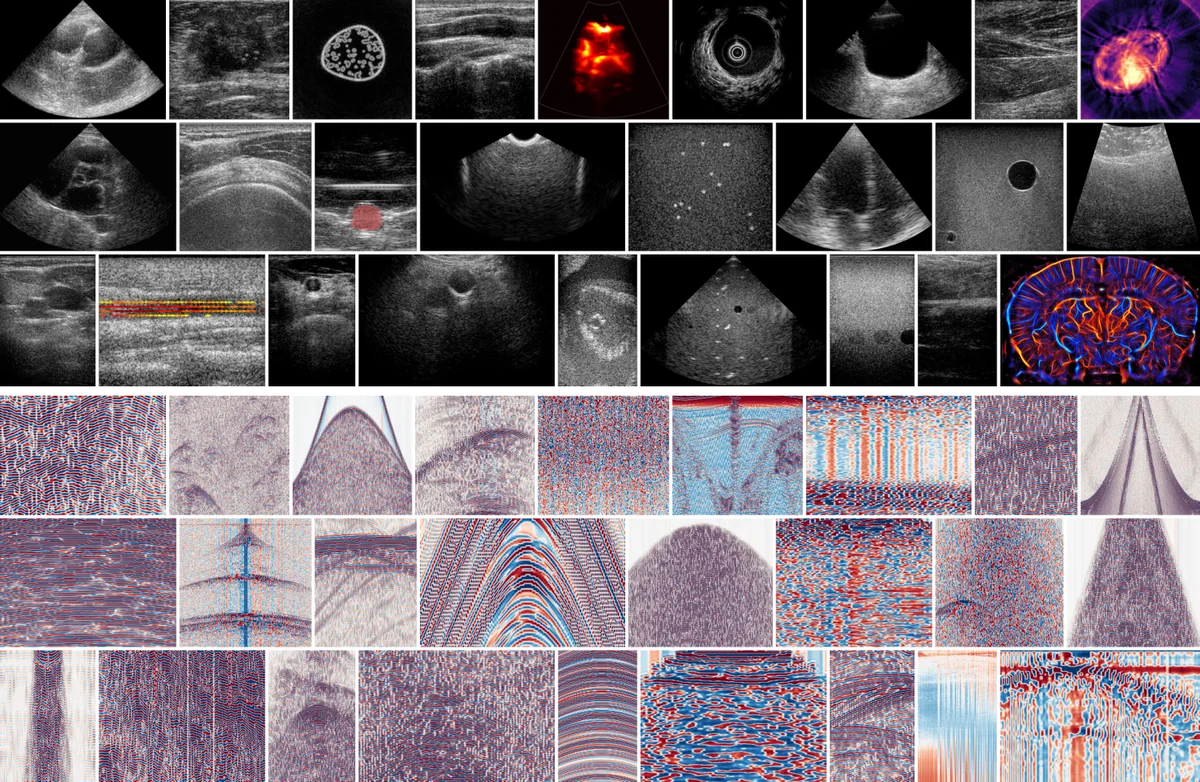

That distinction is useful. Raw channel data are much larger and less immediately legible than reconstructed images, but they retain the timing and spatial information that image-only datasets have already discarded. Figure 1 makes the gap concrete: it pairs reconstructed images with a visual impression of the corresponding demodulated RF data, while noting that a full raw tensor spans all transmits, receive elements, and axial samples. The corpus stores that complete signal rather than the display-friendly subset.

Technical Approach

Each frame can be understood as a tensor of signals recorded over multiple transmit events, receiver elements, and time samples. Beamforming aligns these measurements according to a propagation model and sums them at each image location; envelope detection and log compression then produce the familiar B-mode view. By preserving the earlier stage, OpenH-RF permits users to revisit those assumptions instead of treating a scanner reconstruction as fixed ground truth.

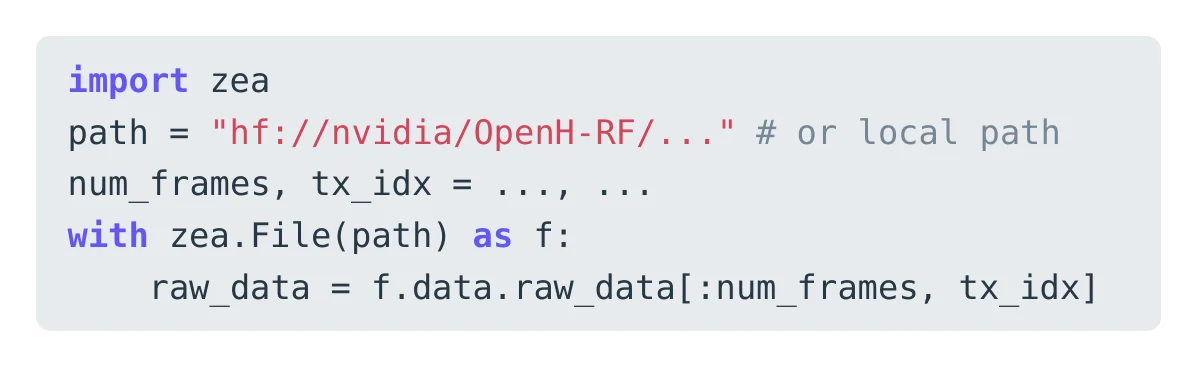

The paper’s other practical contribution is data access. The authors describe a unified, self-contained format and programmatic streaming that can retrieve only selected frames or transmits, caching the requested portion locally. That design addresses a direct usability constraint: a 40 TB corpus is not useful to many groups if each experiment requires a full download. Figure 4 illustrates selective access to a portion of a stored file, rather than wholesale retrieval.

The material spans several imaging settings and downstream tasks, including generalized reconstruction, speed-of-sound estimation, aberration correction, blood-flow imaging, motion estimation, quantitative ultrasound, and image interpretation. The extracted figures also show why a single data convention is valuable: the collection includes tracked synthetic-aperture acquisitions, volumetric sweep geometries, intravascular imaging, ring-array ultrasound computed tomography, and flow sequences. These are incompatible enough at the hardware level that metadata and geometry are part of the dataset, not ancillary documentation.

Results and Analysis

The paper’s evidence is primarily a release and coverage argument. Its strongest quantitative facts are scale and breadth: approximately 40 TB, 19,332 acquisitions, and contributions from 38 institutions. Those numbers are materially beyond the narrow raw-channel datasets typically assembled for one reconstruction problem, and the stated CC BY 4.0 license removes a common access barrier for academic and industrial experimentation.

The paper does not report a standardized model benchmark, a train/test leaderboard, or accuracy gains over prior datasets. That is appropriate to its scope, but it changes how the contribution should be judged. The evidence supports the claim that OpenH-RF makes a large and varied raw-signal collection available with selective programmatic access. It does not yet establish that training on the pooled corpus improves beamforming, flow estimation, or foundation-model transfer relative to existing data. The next useful tests are protocol-aware splits, task-specific baselines, and cross-institution generalization studies; without them, scale alone cannot show which forms of heterogeneity help rather than complicate learning.

Caveats in Practice

The collection’s heterogeneity is both its reason for existing and its main experimental challenge. Scanner settings, transducer geometry, anatomy, simulations, phantoms, and reconstruction assumptions can create shortcuts unless evaluations control for contributor and acquisition protocol. Selective streaming lowers the initial data-transfer burden, but raw-channel experiments still require substantial local storage, bandwidth, and signal-processing expertise. OpenH-RF is consequently most immediately valuable to groups building reconstruction and physics-aware learning systems, while image-only clinical models may need less of the retained signal detail.
