Modular OpenRIS Brings Passive Wireless Enhancement Closer to Deployment

Reconfigurable intelligent surfaces promise to improve coverage by shaping propagation rather than adding active radio infrastructure, but most prototypes remain expensive, rigid, and difficult to fit into buildings. OpenRIS addresses the deployment problem rather than proposing a new channel model: the authors build an open-source surface from repeatable meta-bricks that can be assembled into planar or conformal geometries. Their central claim is that discretizing the surface into manufacturable blocks need not forfeit the behavior of a continuous RIS.

Core Contribution

OpenRIS treats the physical surface as a construction kit. The paper’s contribution is the combination of a modular meta-brick, digital-twin-assisted configuration, and demonstrations intended to connect electromagnetic design to an installed wireless system. The conformal implementation is particularly relevant: instead of asking an environment to accommodate a flat panel, the surface can follow a curved mounting wall.

The authors compare the discretized implementation with a continuous RIS in full-wave simulation and experiments, reporting consistent performance rather than presenting a single headline gain. That framing is appropriate for this work. Its value is not a new record on a benchmark; it is evidence that an assembly-oriented hardware abstraction can preserve useful beam control while making shape and installation part of the design space.

Technical Approach

Each OpenRIS tile contains a $6\times46$ arrangement of meta-bricks. In the demonstrated conformal array, 12 arc-shaped tiles are arranged as a $3\times4$ surface; each tile has a 55 mm radius, arc length $\pi/6$, and height 72 mm. The resulting structure redirects incident energy toward intended receivers through its programmed reflection phases.

For stairwell coverage, the digital twin defines the array center and individual element coordinates, then derives a reflection phase matrix that maximizes received power for each sampled receiver location. The authors sample 50 receiver points on each of 13 ascending and 13 descending stair steps, yielding 1,300 positions in simulation. Rather than optimize one point at a time, they combine weighted reflection coefficients, widen the reflected beam, and use a genetic algorithm to minimize the variance of received power across those locations. This is a practical formulation of the coverage problem: maximizing a peak would leave much of a staircase poorly served.

The communication prototype uses two user-equipment transmitters and one access-point receiver, each built around USRP-2974 radio chains. A White Rabbit timing system distributes a 10 MHz reference and pulse-per-second signals over optical fiber. Source video is processed through QAM and OFDM modulation, then transmitted through the conformal OpenRIS when no direct path is used. The receive chain performs baseband conversion, channel estimation, equalization, and symbol detection; received power and constellation diagrams are used to assess the link.

Results and Analysis

The paper also builds a planar coverage-measurement system around a vector network analyzer operating with a 28 GHz excitation. A lens antenna with 35.5 dBi gain and 3° 3 dB beamwidth illuminates the surface; a receiving horn has 24.5 dBi gain and 10° 3 dB beamwidth. The measurement uses the complex forward transmission parameter $S_{21}$ relative to a reference signal, preserving amplitude and phase information rather than reducing the test to a binary connectivity result.

Figure 3 documents the two hardware paths: a conformal two-user mmWave link and a planar scanning setup. The experimental design is more persuasive than simulation alone because it includes clock synchronization, modulation, RF conversion, antennas, and a physical reflected path. Still, the supplied paper material does not establish a broad deployment comparison against conventional repeaters, active RIS hardware, or alternative passive surfaces. The reported evidence supports feasibility and configurable coverage enhancement in the tested settings; it does not yet quantify the cost, reliability, control overhead, or field performance needed to justify large-scale network replacement.

Limits in Practice

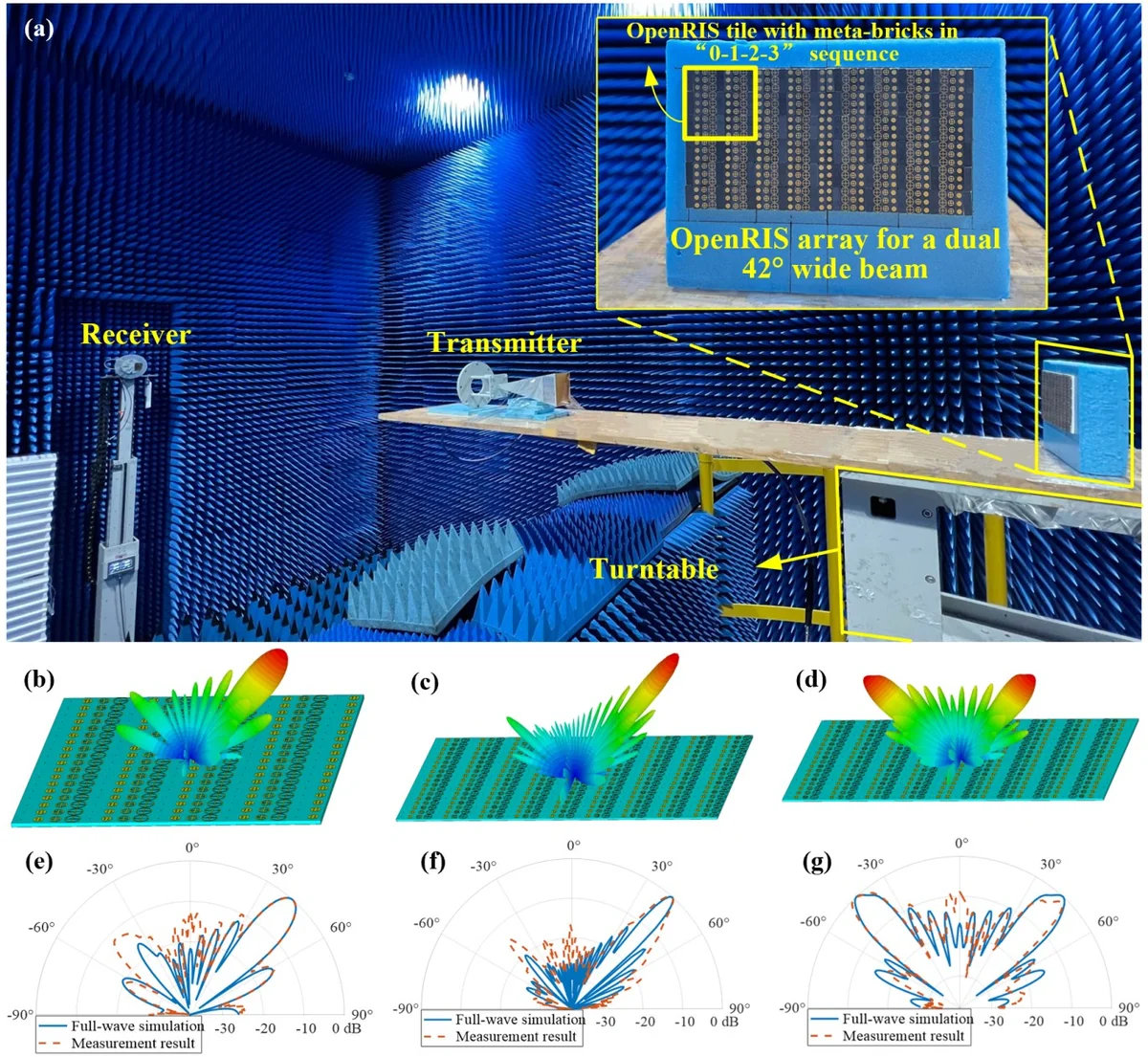

The evaluation is centered on controlled prototype scenarios, including an anechoic-chamber verification and specified stairwell simulations. The data availability statement points to the manuscript and supplementary files, including design and fabrication files, but the paper does not provide a repository URL in the supplied material. OpenRIS therefore looks most immediately useful to researchers and infrastructure designers who need a reproducible physical platform for testing shaped passive surfaces, rather than operators seeking a validated turnkey coverage product.
