Resonant Swiss Roll Reactors Improve Electrified Thermochemistry Efficiency

Electrified thermochemistry has a practical bottleneck that is not just catalytic activity: getting electrical power into a hot reaction zone without losing too much of it in coils, reactor walls, or external heat transfer hardware. Conventional induction heating can localize heat in a susceptor, but the drive coil still dissipates power and the geometry can make insulation difficult. This paper introduces an induction-heated resonant reactor in which the reactor body itself is a resonant electromagnetic structure. The authors use a Swiss roll resonator as the test platform and show that it can be tuned for volumetric heating, high coupling efficiency, and packed-bed operation for reverse water-gas shift.

Core Contribution

The main idea is to treat the susceptor not as a passive metal object warmed by a nearby coil, but as an RLC resonator that stores electromagnetic energy and dissipates it inside the reaction volume. In the authors' design, a single-turn drive coil couples wirelessly to the Swiss roll. At resonance, the effective AC resistance of the Swiss roll is enhanced relative to the coil, so most input power is dissipated in the reactor rather than in the drive coil.

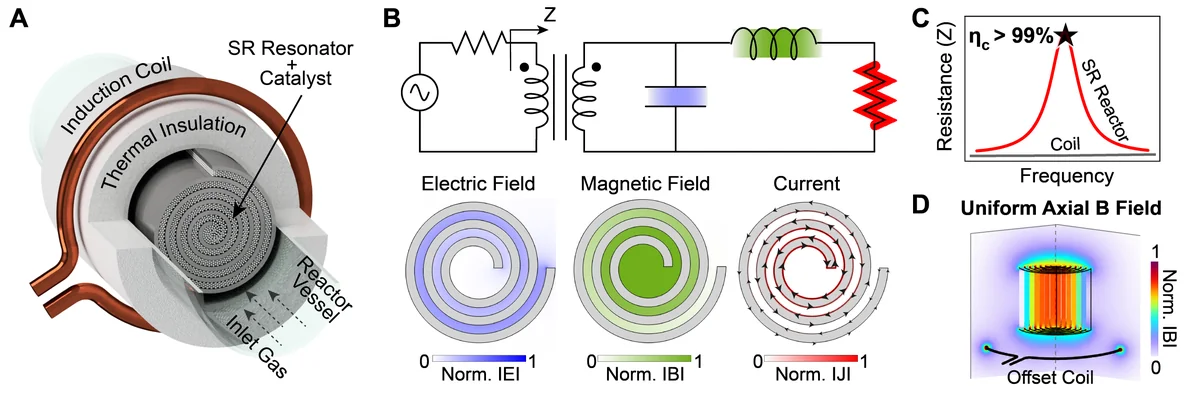

That distinction matters because it links two usually separate design choices: electromagnetic power transfer and reactor thermal design. If the heating element is the packed reactor core, the insulation can surround the whole reaction zone and the coil can sit outside the insulation. Figure 1 lays out this architecture and the circuit model behind it.

Technical Approach

The paper builds a design framework around the Swiss roll geometry. The metal walls form distributed inductors and capacitors; charging currents along the rolled sheets create magnetic fields, and surface currents determine the local Ohmic heating profile. The authors derive analytical models for the current and power profiles, compare them with numerical simulations, and validate them experimentally with temperature measurements.

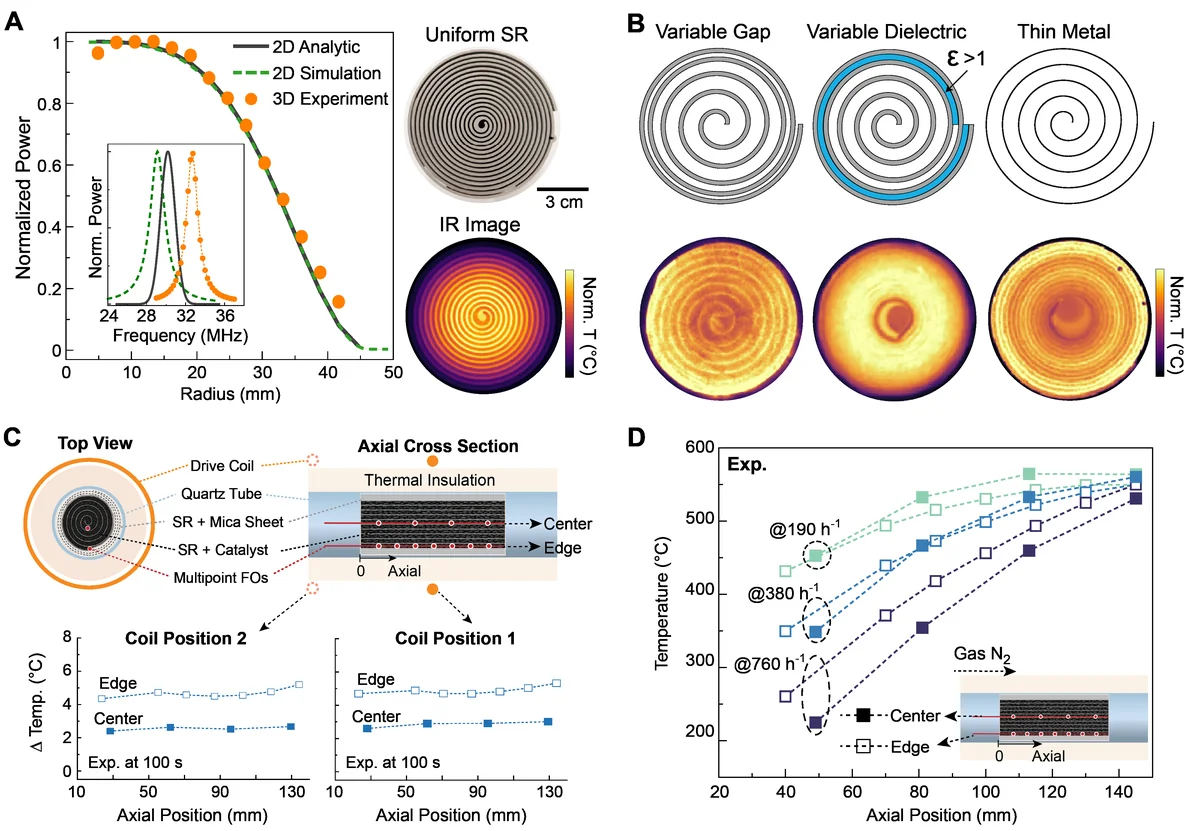

A useful part of the work is that the authors do not accept the natural heating profile of a uniform roll as fixed. The baseline uniform Swiss roll heats more strongly near the center. They then inverse-design variants that flatten the volumetric heating profile using three routes: variable gap widths, variable dielectric loading, and thin metal walls with thickness below the skin depth. The variable-dielectric version uses mica loading; the variable-gap version becomes the basis for the packed reaction demonstration. Figure 3 shows the agreement among analytical, numerical, and experimental heating profiles, as well as transient measurements under different drive-coil positions and nitrogen flow rates.

Results and Analysis

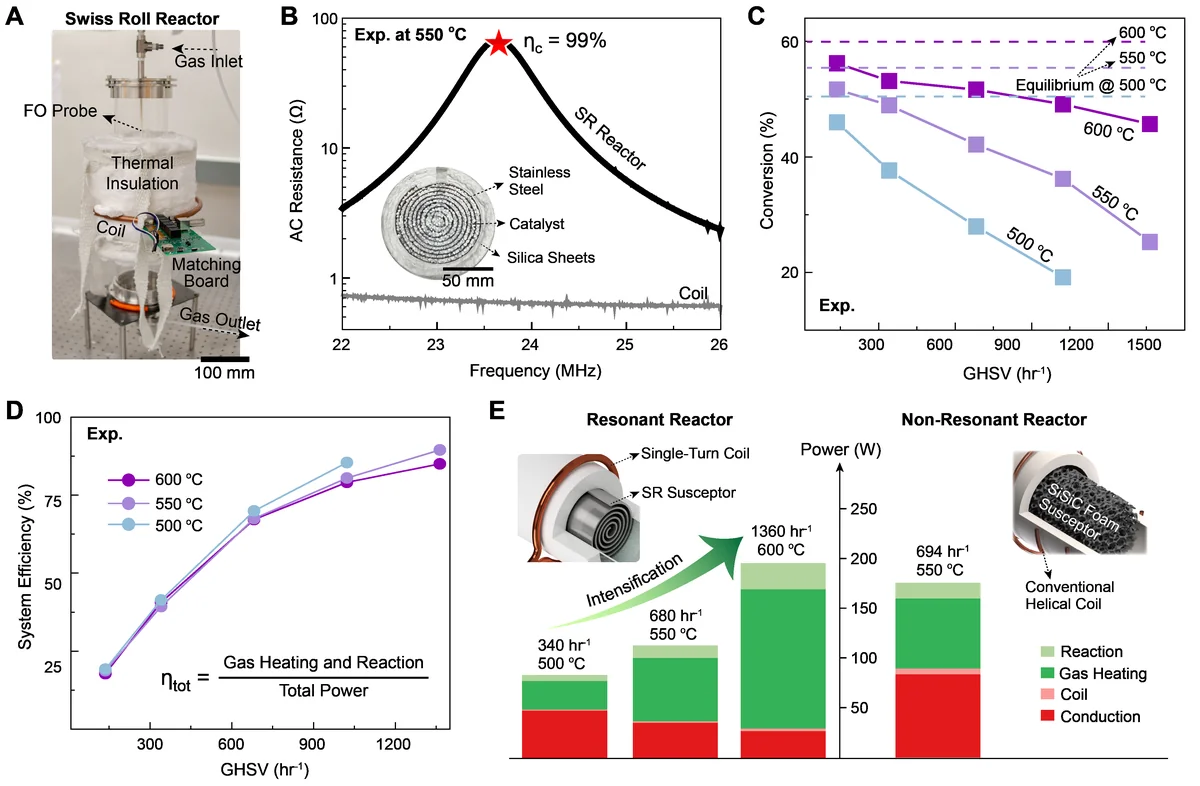

The most direct reactor demonstration is a packed Swiss roll reverse water-gas shift flow reactor. The resonator has 13 turns, is loaded with 1 mm catalyst particles, is surrounded by 55 mm of thermal insulation, and is driven by a single-turn coil outside the insulation. At 550 °C, the measured resonance gives 99% coupling efficiency between the drive coil and reactor. That is the paper's cleanest evidence for the electromagnetic claim: at the operating temperature, coil losses are made small relative to power dissipated in the reactor.

Chemically, the reactor converts CO₂ to CO at outlet temperatures of 450 °C, 500 °C, and 550 °C across varying inlet flow rates. At low flow rates, conversion approaches thermal equilibrium values, which indicates that the packed reactor can deliver the intended thermochemical environment rather than merely heating the outlet gas. The energy result is more consequential for scale-up: total system efficiency approaches 90% at high gas flow rates. Against a representative non-resonant induction-heated metamaterial reactor under comparable 550 °C and roughly 680 hr⁻¹ GHSV conditions, the resonant reactor improves total system efficiency from 45% to 67%. The decomposition in Figure 4 attributes the gain to lower coil dissipation and reduced wall heat loss, not to a change in reaction enthalpy.

The scale-up analysis is promising but still partly model-based. The authors calculate resonance frequency and quality factor versus resonator diameter under two scaling rules, then compare experimental and calculated AC resistance profiles for three Swiss rolls of different diameters. The evidence supports the claim that uniform volumetric heating can be maintained across tested sizes, and that quality factor can increase with scale when metal thickness remains near the skin depth. It does not yet prove industrial operation under long-duration cycling, catalyst aging, or full process integration.

Limitations

The study is strongest on electromagnetic and thermal reactor physics, with a targeted chemical demonstration. The RWGS experiments run for 1 hour at each condition, so durability and catalyst deactivation are not established. The comparison to non-resonant induction heating uses representative prior systems rather than a fully matched reactor built and tested side by side. The scale-up section combines experiments with calculations; it identifies favorable trends, but large reactors will still need validation under real packing, insulation, gas-flow, and materials constraints. The field-assisted configurations are design analyses rather than demonstrated chemical reactors.
