Clinical Context Improves Longitudinal Radiotherapy Registration

Adaptive radiotherapy depends on knowing how a patient's anatomy has changed between planning and treatment fractions. That mapping is used to transfer target and organ-at-risk contours, assess delivered dose, and decide whether a plan needs adaptation. Conventional deformable image registration treats each scan pair as an isolated alignment problem, even though radiotherapy provides unusually rich context: planned structures, dose distributions, clinical notes, and a sequence of earlier anatomical changes.

The authors introduce Clinical-context-Aware and Patient-adaptive Deformable Image Registration (CAP-DIR), a registration system designed around that missing information. Its evidence spans 16,361 CT examinations from 3,473 patients, four institutional cohorts, and five public benchmarks. The central result is not simply better image similarity: the reported gains extend to contour propagation, clinician judgment, and global dose mapping, which are closer to the downstream decisions adaptive radiotherapy must support.

Core Contribution

CAP-DIR makes two departures from pairwise registration. First, it incorporates radiotherapy-specific inputs—source contours, dose, and clinical text—so that the deformation estimate can prioritize anatomically and clinically consequential regions rather than optimize the body image alone. Second, it uses patient-adaptive memory derived from prior Stage 1 registration outputs, allowing the model to condition the current registration on the patient's observed deformation history.

That distinction matters because a body-wide registration score can conceal errors in small, mobile organs at risk (OARs) or treatment targets. The paper's analysis explicitly separates body and OAR performance and relates the gap between them to estimated OAR displacement. The authors' premise is that anatomy with a known treatment role should not be handled as an unlabeled intensity pattern.

Technical Approach

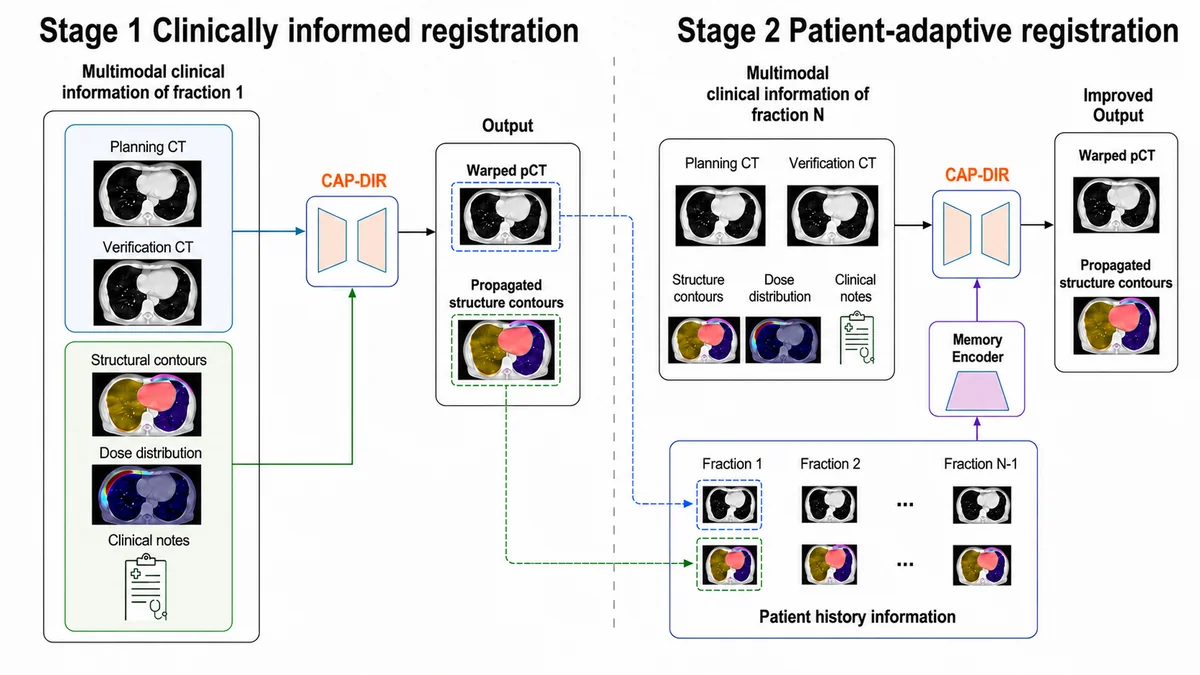

Figure 1 lays out a two-stage workflow embedded in the clinical adaptive-radiotherapy process. Treatment planning is followed by fraction-level verification imaging, deformable registration, contour propagation, delivered-dose assessment, and adaptation decisions. CAP-DIR adds clinical conditioning to the registration task and then carries forward features from prior registrations as a patient-specific deformation memory.

The design therefore combines information at two scales. The clinical-context component provides structural and treatment-related cues for the current source-target pair. The patient-adaptive component uses earlier outputs to represent a longitudinal trajectory rather than assuming that every fraction starts from no history. This is a practical formulation of temporal personalization: it does not require a new model per patient, but it gives later registrations access to patient-specific preceding changes.

Results and Analysis

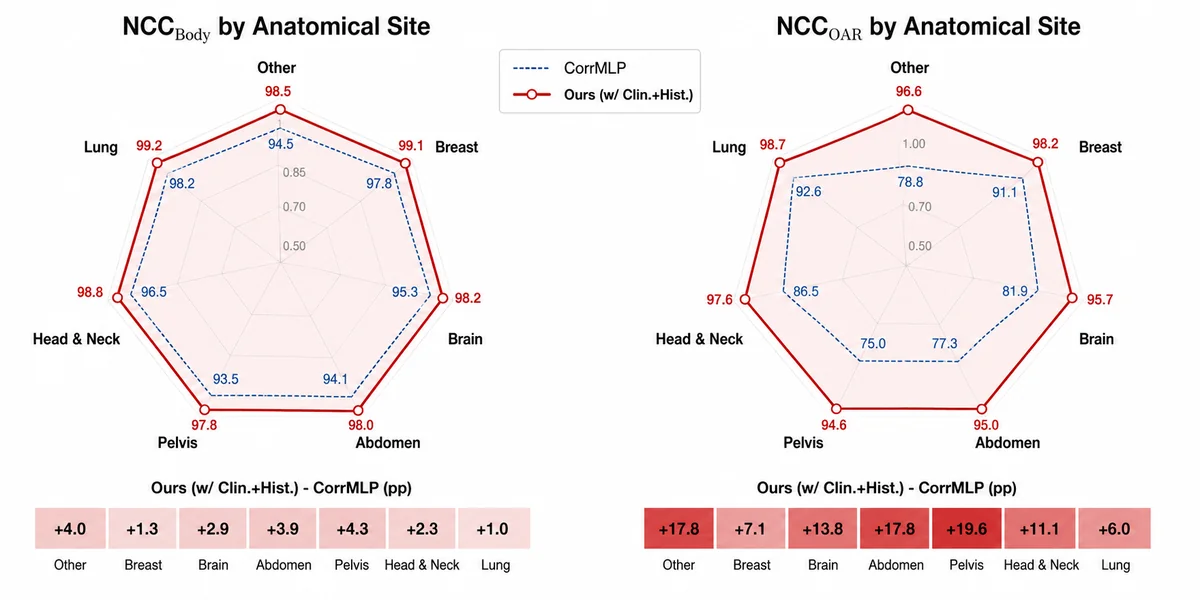

On the internal test set, CAP-DIR raised OAR-region normalized cross-correlation from 84.76% for the strongest learning-based comparator to 96.92%. The evaluation also reports low deformation folding, an important constraint because a visually plausible warp is not sufficient if its local geometry becomes nonphysical. Figure 2 separates image-similarity and deformation-regularity metrics, examines body-versus-OAR gains across anatomical sites, and extends the comparison to held-out external cohorts.

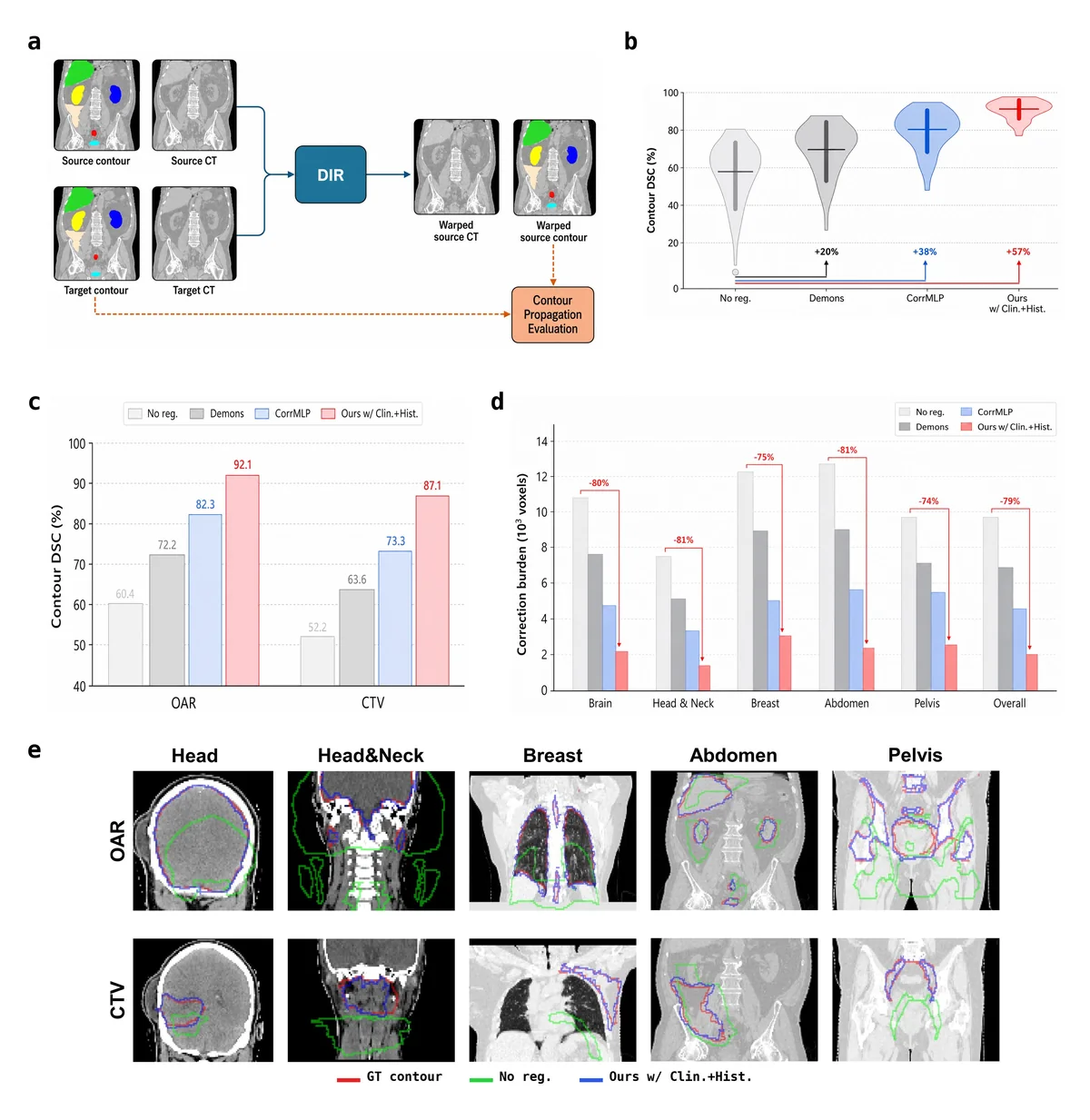

The more consequential test is contour usability. In a blinded review of 20 longitudinal cases, clinically acceptable clinical target volume (CTV) propagations rose from 45.0% to 82.5%, while acceptable OAR propagations rose from 22.5% to 62.5%. Each method contributed 40 reader-case evaluations. The paper also reports lower clinician-estimated editing time, although the supplied results do not establish how much time would be saved in a prospective treatment workflow. Figure 3 connects these ratings to direct contour-transfer accuracy and residual symmetric-difference volumes across anatomical sites.

For dose assessment, CAP-DIR reduced global dose-mapping error by 34.5% against the strongest comparator in a controlled benchmark. Taken together, the contour-review and dose-mapping results make the case more persuasive than image metrics alone: the method appears to improve outputs clinicians would actually inspect or use for accumulated-dose reasoning. The remaining question is operational rather than algorithmic—whether these gains persist under prospective deployment, with adaptation decisions and patient outcomes measured directly.

Limits of the Evidence

The clinical review is small relative to the imaging dataset: 20 longitudinal cases and 40 reader-case evaluations per method. The reported superiority across seven external cohorts supports generalization better than a single-site study, but the paper does not establish prospective effects on adaptation decisions, toxicity, or tumor control. Its strongest evidence concerns CT registration, propagated contours, and controlled dose mapping; those are necessary intermediate measures, not a demonstration of end-to-end clinical benefit.
