Wafer-Scale Photonics Delivers Broadband Trapped-Ion Addressing

A planar waveguide lens plus printed micromirror routes 405–880 nm light to 5 µm-spaced ions with -27.6 dB average crosstalk.

Editorial Desk·July 29, 2026·5 min readstrong

Underlying Paper

A broadband, individually addressing two- and three-dimensional photonic integrated circuit for trapped-ion qubit control

Trapped ions provide a high-fidelity platform for quantum information processing, yet delivery of multiple, distinct wavelengths across large networks of interaction zones remains a bottleneck. Conventional free-space light delivery lacks scalability, while on-chip grating couplers suffer from narrow operational bandwidth that increases circuit footprint and optical interfacing complexity. Here we show a broadband photonic integrated circuit capable of addressing individual ions. The circuit combines a planar waveguide lens with a micromirror fabricated using two-photon polymerization at wafer scale. This implementation can address three individual ions from $\lambda$ = 405 - 880 nm with -27 dB average intensity crosstalk at $5\,\mu\mathrm{m}$ pitch. We trap $^{40}\mathrm{Ca}^{+}$ and $^{138}\mathrm{Ba}^{+}$ ions above such devices, characterize optical crosstalk with barium ions, and demonstrate individual repumping of calcium ions. This monolithic photonic architecture brings broadband addressing in an on-chip modality to trapped-ion technology. More generally, integrating additive manufacturing into quantum devices is poised to unlock expanded design space for implementing novel quantum architectures.

arXiv:2607.25062Submitted: Jul 29, 2026v1

Scaling trapped-ion processors is partly an optical packaging problem. A useful device must deliver many wavelengths, hit individual ions a few micrometers apart, survive ultra-high-vacuum assembly, and avoid placing large dielectric surfaces where they destabilize the trap. This paper attacks that bottleneck with a two- and three-dimensional photonic integrated circuit: lithographic waveguides and planar lenses route light in the chip plane, while two-photon-polymerized micromirrors redirect and focus it onto ions above a surface trap.

Core Contribution

The central result is not just another on-chip beam coupler. The authors combine a broadband aluminum-oxide waveguide platform with a 3D-printed, aluminum-coated reflector, then integrate the resulting optics with surface-trap electrodes on 6-inch wafers. That combination gives the circuit a much wider useful spectral range than narrowband grating couplers while keeping the beam-delivery geometry compatible with ion-addressing pitches.

Figure 1 shows the architectural choice clearly: the planar lens expands and collimates light from strip waveguides, and the printed micromirror maps different incoming waveguides to different focal spots at the ion plane.

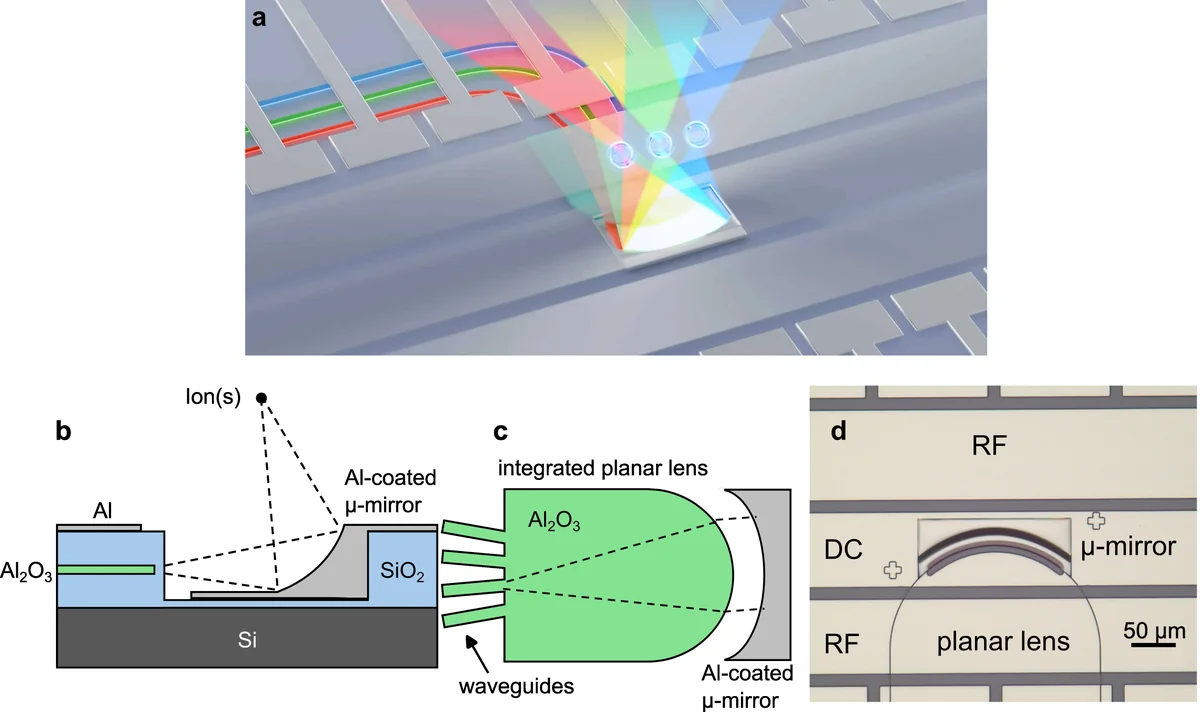

Figure 1. Architecture of the 2D-3D PIC. a, Isometric rendering of the device. The photonic layer is made up of an amorphous Al_2O_3 core with a symmetric SiO_2 cladding, patterned underneath the 200~nm Al surface-electrode layer. In the ion interaction region, a combination of lithographically defined photonics and 2PP-printed optics is used to route and shape the beam delivered to the ion location. b, Side view of the on-chip imaging system. The beam exits from the on-chip planar lens aperture and is focused by the Al-coated reflector to the ion location. c, Top view of the on-chip imaging system. The planar lens expands and collimates the optical mode from the incoming strip waveguides. The mirror focuses the optical energy onto the ion location. Each incoming waveguide is mapped to a different focal spot by the imaging system. d, Optical micrograph of a finished device showing the planar lens, the µ-mirror, and the surrounding surface-trap electrodes. The mirror has the same potential as the center DC electrode. The alignment accuracy achieved between the substrate and the printed mirror is within 1~µm.

The novelty is the packaging of these pieces into a monolithic trapped-ion device. Prior photonic ion traps have shown waveguides and grating couplers, but the bandwidth problem is severe because ion species need multiple wavelengths for cooling, repumping, state preparation, and qubit operations. Here, the same optical architecture is characterized from 405 nm to 880 nm, covering the relevant bands for calcium and barium demonstrations.

Technical Approach

The guided photonics use a 120 nm amorphous Al2O3\mathrm{Al_2O_3} core inside 5μm5\,\mu\mathrm{m} of SiO2\mathrm{SiO_2} cladding. The methods section reports band-specific waveguide widths for single-mode operation across the 375–866 nm design window: 0.55 µm in near ultraviolet, 0.8 µm in visible, and 1.6 µm in near infrared. Low-loss Euler bends were designed for each band, with simulated bend loss below 0.01 dB per 90° turn.

The free-space transform is split across two optical elements. A planar waveguide lens was optimized in 3D FDTD around 729 nm and scaled for other wavelengths; the micromirror was optimized in Zemax as a biconic-aspherical reflector with a roughly 75μm×2μm75\,\mu\mathrm{m} \times 2\,\mu\mathrm{m} aperture. The mirror surface is printed by two-photon polymerization, then metallized and electrically tied into the trap electrode stack.

Fabrication is also part of the claim. The devices are made on 6-inch silicon wafers, with 50 micromirrors printed per wafer, followed by post-processing that deposits 200 nm of aluminum for both electrodes and reflectors. The reported substrate-to-mirror alignment accuracy is within 1 µm. Packaged devices survived sequential vacuum bakes to 50, 80, 100, and 125 °C with negligible coupling loss, and the ion experiments ran below 1×10101\times10^{-10} Torr.

Results and Analysis

The optical characterization supports the broadband claim. Figure 3 reports focal-plane images at a 75 µm ion height for six wavelengths from 405 to 880 nm, plus simultaneous three-spot illumination at 515 nm and 635 nm with a 5 µm pitch. The key addressing number is -27.6 dB average intensity crosstalk between on-axis and 5 µm-offset focal spots. For trapped-ion control, that is a meaningful result because it links the photonic geometry to an ion-scale spacing rather than only reporting free-space beam quality.

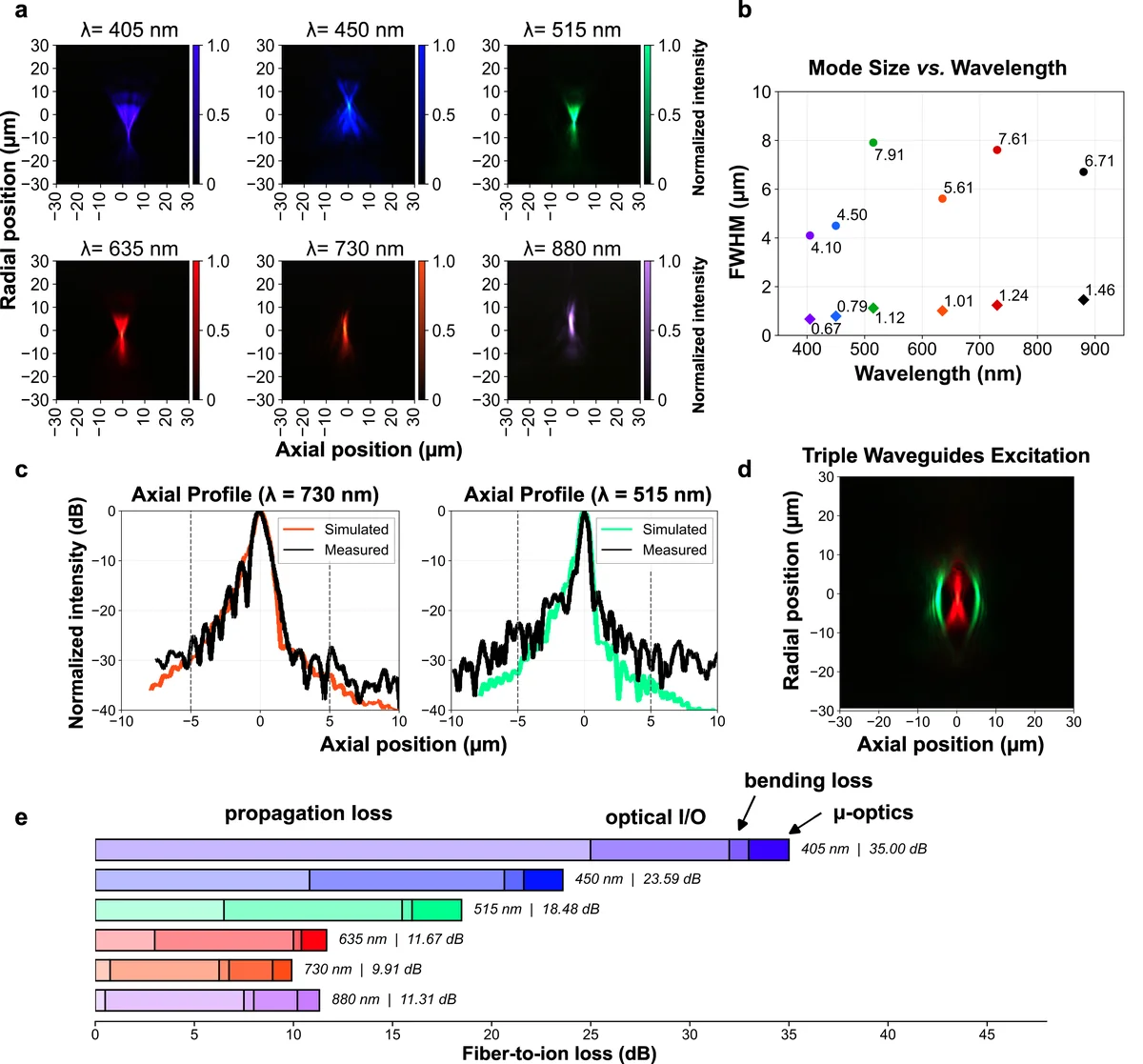

Figure 3. Broadband, micron-level focusing. a, Measured top-down focal-plane images at h = 75 µm for six wavelengths from 405 to 880 nm through the nanophotonic device. The shown color map for each wavelength is the perceived color at each wavelength except =880 nm, which is a pseudo-color. b, Axial (diamonds) and radial (circles) FWHM versus wavelength. The effective NA is different in the axial and radial directions, and so is the achieved spot size. c, Simulated (532 nm and 729 nm) and measured (515 nm and 730 nm) focal-plane intensity for on-axis and 5~µm-offset focal spots. The average intensity crosstalk is -27.6 dB. d, Measured simultaneous three-spot illumination at 515 nm and 635 nm with a 5 µm pitch. e, Measured fiber-to-ion loss across 405 nm -- 880 nm, with bar segments from left to right showing the contributions of propagation loss, optical I/O loss (from the fiber/edge couplers interface), on-chip bending loss, and the insertion loss of the µ-mirror itself. The color coding is the same as a.

The ion experiments make the device more convincing than a passive optics demonstration. The authors trap both 138Ba+^{138}\mathrm{Ba}^+ and 40Ca+^{40}\mathrm{Ca}^+ above the integrated structures. With barium, they infer 455 nm integrated-beam crosstalk from excitation rates of the S1/2P3/2S_{1/2}\rightarrow P_{3/2} transition as the ion is moved near the dielectric cutout. With calcium, they demonstrate selective 866 nm repumping of one ion in a two-ion pair spaced by 5 µm. That is a limited operation, not a full gate demonstration, but it directly tests the intended use case: wavelength-specific light delivered to one ion without equally bright illumination of its neighbor.

Figure 4 captures this distinction between optical addressing and ion-level behavior: the same paper reports trapped Ba and Ca ions, measured 455 nm crosstalk, and selective 866 nm repumping in a two-ion Ca pair.

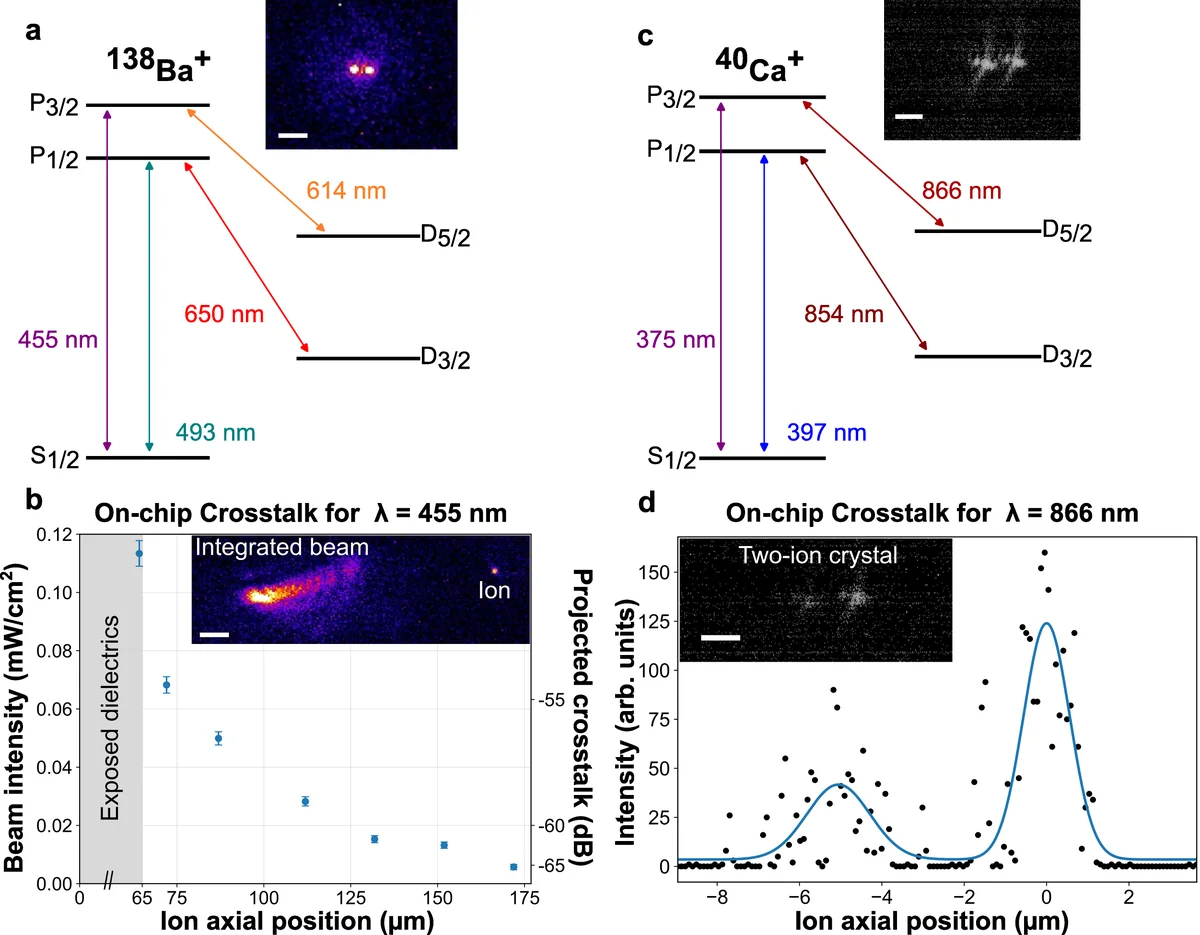

Figure 4. Ion trapping and crosstalk results. a, Relevant energy levels and optical transitions of ^138Ba^+. The inset shows the fluorescence image of two trapped ^138Ba^+ ions with free space 493 nm and 650 nm light shining onto the ions. b, Relevant energy levels and optical transitions of ^40Ca^+. The inset shows the fluorescence image of two trapped ^40Ca^+ ions directly on top of the mirror using all free-space beams. c, Measured 455~nm optical crosstalk intensity as a function of ion position near the dielectric cutout. Blue points show the intensity inferred from the measured excitation rate of the S_1/2 P_3/2 transition of Ba^+, revealing that the intensity decreases with increasing distance from the dielectric mirror. The shaded region indicates the dielectric/cutout region with its edge at x=65~µm. The ion position is plotted relative to the center of the dielectric cutout (x=0). The inset shows a camera image of the ion and the integrated beam within the same field of view. d, Demonstration of single-ion selective repumping with integrated 866 nm light delivered predominantly to one ion of a 5~µm-spaced Ca^+-ion pair. The plot shows the ion florescence intensity measured with a CCD-camera and two Gaussian fits showing the addressed ion fluorescence more strongly compared to its neighbor. The inset shows the camera image of two Ca^+ions above the mirror. All scale bars are 5 µm.

The main caveat is electrostatic, not photonic. The supplementary dielectric study shows that exposed or charged dielectric regions can create large spatially varying fields near the trap. The authors measure axial stray fields reaching tens of kV/m near the dielectric boundary and report axial secular-frequency changes of more than a factor of three over the same spatial range, corresponding to a factor-of-nine change in axial curvature. Their simulation indicates that even a 0.8 V effective dielectric potential can shift axial frequencies by several megahertz. That limits how freely such reflective dielectric structures can be placed near shuttling paths or interaction zones.

The paper therefore provides strong device-level evidence for broadband integrated addressing, but not yet a complete processor-scale solution. The optical architecture solves a real bandwidth and routing problem; the dielectric charging data show why future versions will need active charge control, shielding, or more conservative placement of exposed optical structures.

Evidence Box

strong

Key Claims

  • Broadband on-chip addressing across trapped-ion control wavelengths
  • Two-photon-polymerized micromirrors can be integrated with surface-trap electrodes
  • Individual ions can be addressed at 5 µm pitch using integrated photonics
  • Charged dielectric optics introduce electrostatic perturbations that must be managed

Key Results

  • 405–880 nm focusing demonstrated through the nanophotonic device at 75 µm height
  • -27.6 dB average intensity crosstalk for on-axis and 5 µm-offset focal spots
  • Selective 866 nm repumping demonstrated on one ion in a 5 µm-spaced ⁴⁰Ca⁺ pair
  • Axial secular frequency changed by more than 3× near the dielectric boundary, implying 9× curvature variation

Limitations & Caveats

  • No two-qubit gate or full algorithmic operation demonstrated with integrated beams
  • Dielectric charging produces tens-of-kV/m stray fields near exposed optical regions
  • Optical crosstalk suppression may still be insufficient for spectator coherence during gates
  • Evaluation covers a small number of addressed ions rather than a large multi-zone processor

Related Articles

Readers are encouraged to consult the original arXiv paper for complete details. SOTA Papers does not make claims beyond what is supported by the authors' reported evidence.
