RNO-G Beamforming Cuts Radio-Neutrino Trigger Thresholds

Radio-neutrino observatories live or die by their trigger thresholds. Askaryan pulses from ultra-high-energy neutrinos are brief, broadband radio transients buried under thermal noise, so a trigger that rejects noise without rejecting real pulses directly changes the detector’s exposure. This paper reports the design and field performance of the new RNO-G phased-array trigger, deployed from the 2025 season, for an array that currently has 8 of its planned 35 Greenland stations in the ice.

Core Contribution

The central contribution is a practical trigger architecture for an operating neutrino detector, not a simulation-only optimization. The authors replace the older high-low threshold trigger as the primary deep trigger with a phased-array design: antenna waveforms are delayed, summed into beams, squared or power-integrated, and tested against thresholds. The point is to use coherence across the vertically spaced antennas to make Askaryan-like plane-wave impulses grow faster than incoherent thermal fluctuations.

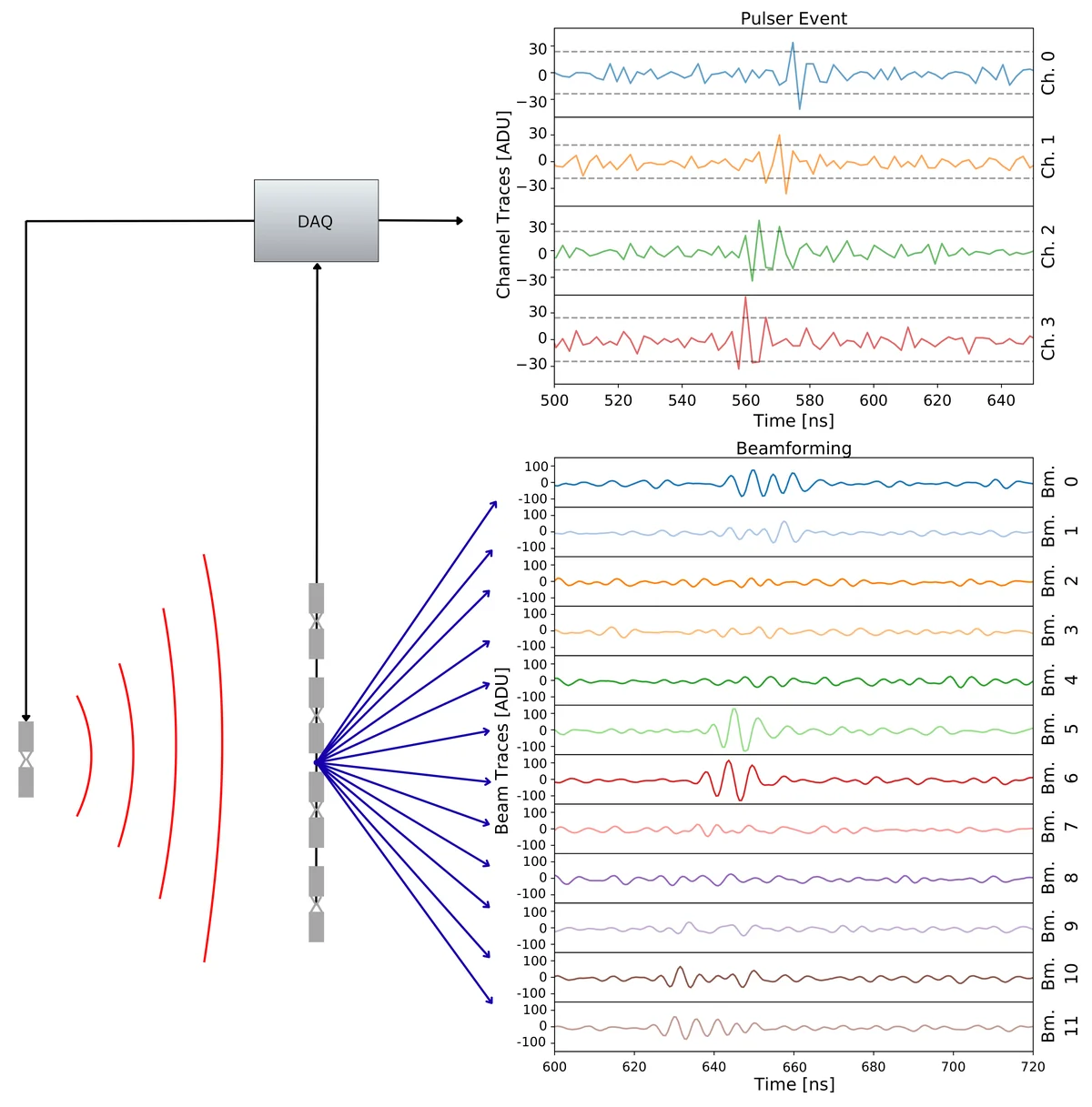

Figure 1 gives the cleanest visual intuition. In an in-situ pulser event, the beam closest to the incoming RF direction has the largest coherent signal after upsampling and beamforming, while off-direction beams show weaker or destructively interfering traces.

Technical Approach

The trigger pipeline is built around finite-rate digitized waveforms, digital upsampling, delay-and-sum beamforming, and a power-integration decision. The paper devotes substantial space to the firmware-facing details because they matter: interpolation changes pulse timing, the finite impulse response low-pass filter sets the usable bandwidth after zero-stuffing, and the integration window must be long enough to collect Askaryan pulse power without admitting too much thermal noise.

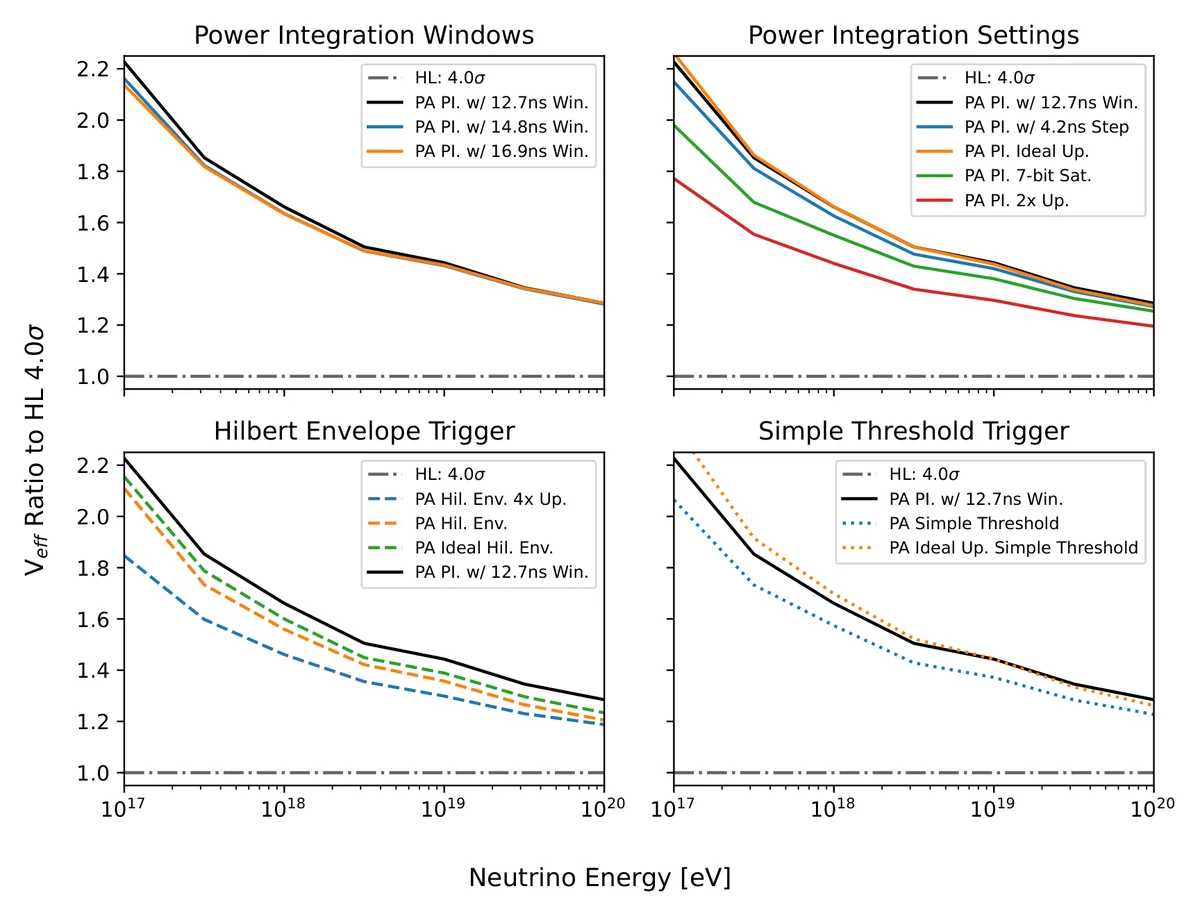

The authors compare several trigger variants in simulation, including idealized references, a Hilbert-envelope option, simple amplitude thresholds on beamformed traces, and power-averaging settings. Their selected design is the phased-array power-integration trigger with a 12.7 ns integration window. That choice is motivated by simulated Askaryan pulses across view angles from the Cherenkov angle: wider off-cone signals need longer windows, but too long a window starts to dilute the threshold advantage. Figure 6 summarizes this design trade-off against the high-low trigger and alternative beamformed triggers.

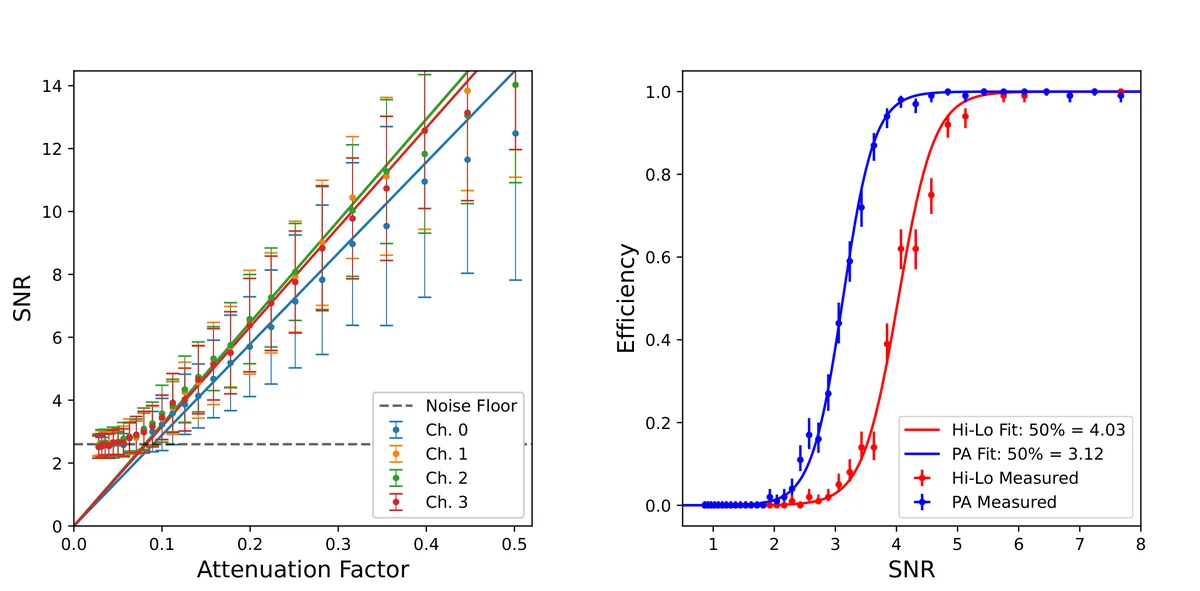

The validation path is also concrete. The paper uses laboratory tests, field pulsers, and embedded calibration sources to measure trigger efficiency as a function of signal-to-noise ratio. The SNR definition is tied to observed waveform amplitudes, with special handling for saturation at high amplitudes and thermal-noise saturation near low SNR. Figure 8 shows the measured efficiency procedure for one pulser and station: the attenuation scan maps pulser setting to waveform SNR, then an efficiency curve estimates the trigger turn-on.

Results and Analysis

The headline result is a 25% average reduction in the SNR required to trigger, measured across the paper’s test configurations. For an instrument whose science reach is exposure-limited at the highest neutrino energies and threshold-limited at lower energies, that is a material gain: a lower trigger threshold admits fainter Askaryan pulses and therefore increases the volume of ice from which detectable signals can arrive.

The agreement between simulation and data is a second important result. The paper reports that simulated trigger efficiencies are within 10% of measured data after in-situ validation. That does not make the effective-volume estimate a direct measurement of neutrino sensitivity, but it does make the simulation chain more credible than an unconstrained design study. Using the data-informed trigger model, the authors estimate that the phased-array trigger increases RNO-G effective volume by more than a factor of 2 below 0.1 EeV and by at least 1.3× even at 100 EeV.

Those gains have different meanings across energy. Below 0.1 EeV, the factor-of-two improvement is the main physics argument for the trigger: threshold reduction changes whether weak signals enter the sample at all. At 100 EeV, where signals are stronger, the smaller but still positive 1.3× gain indicates that beamforming is not only a low-energy patch; it expands acceptance even when events are easier to trigger.

Caveats in Practice

The evidence is strong for trigger behavior and credible for effective-volume impact, but the scope is still bounded. RNO-G is not yet the full 35-station detector, and the validation uses pulser signals as controlled proxies for neutrino-induced Askaryan emission. The paper does compare pulser models with simulated Askaryan pulse structure, including frequency content and view-angle dependence, yet calibration pulsers cannot cover every geometry, ice-propagation condition, or hardware state expected in future data. The result is best read as a well-tested detector upgrade with a data-anchored sensitivity projection, rather than a completed measurement of neutrino performance from the full observatory.
