Microcalorimeter Muonic Spectroscopy Sharpens Beryllium-9 Radius

Nuclear charge radii anchor comparisons between electron scattering, isotope-shift measurements, and ab initio nuclear theory. For $^9\mathrm{Be}$, the commonly used radius has been based on electron scattering, while muonic-atom spectroscopy offered a higher-sensitivity route that had not yet been demonstrated with microcalorimeter x-ray detection. This paper reports that demonstration: a direct measurement of the $2p \to 1s$ transition in muonic $^9\mathrm{Be}$, followed by an extraction of the nuclear charge radius from the transition energy.

Core Contribution

The main result is a new value for the $^9\mathrm{Be}$ charge radius, $r_c = 2.5506(51)$ fm, derived from a measured transition energy of 33,391.48(34) eV. The authors state that the x-ray energy is 30 times more precise than the previous best muonic measurement and that the resulting radius is 2.4 times more precise than the commonly used electron-scattering value. The shift is not just a smaller error bar: the new radius differs from that reference by 2.3 combined standard deviations.

The genuinely new piece is instrumental as much as nuclear. The experiment uses a metallic magnetic calorimeter to resolve muonic x rays in the tens-of-keV range, with enough stability and calibration control to turn a single muonic transition into a competitive charge-radius measurement. That matters because muonic atoms have much larger finite-nuclear-size sensitivity than ordinary electronic atoms, but the practical measurement depends on separating the target line from nearby backgrounds, escape peaks, calibration lines, and detector effects.

Technical Approach

The experiment identifies x rays in time coincidence with incoming muons and compares them against anti-coincident spectra used for calibration and background characterization. The visible supplementary peak list separates the coincidence spectrum, where the beryllium target peak of interest appears at about 33.4 keV, from the anti-coincidence spectrum containing lines from sources and materials including americium-241, neptunium-237, lanthanum and barium x-ray fluorescence targets, iron-55, copper, niobium, and silver. That bookkeeping is central to the measurement: a 33 keV line is only useful if nearby calibration and escape features are modeled rather than mistaken for signal.

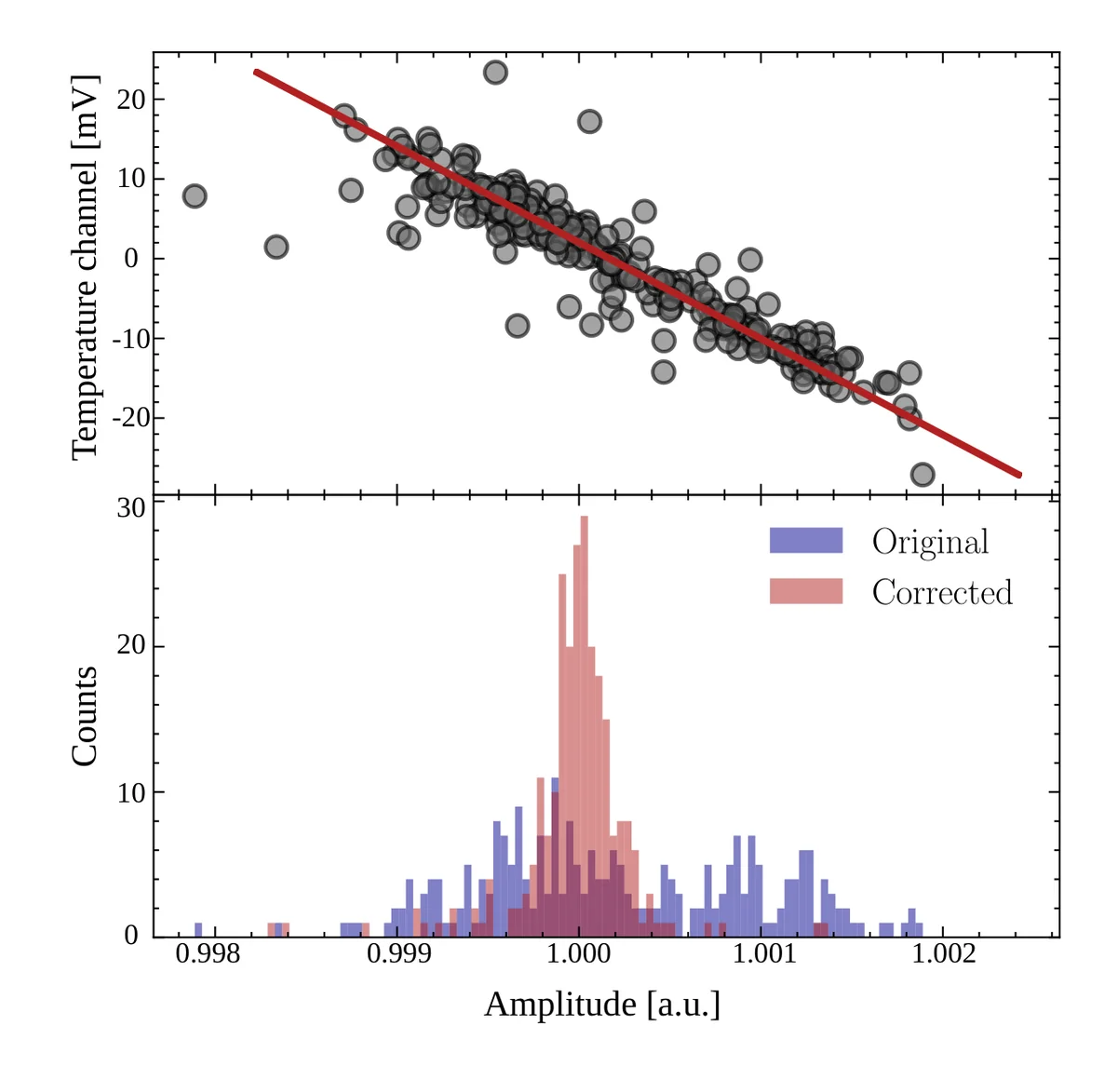

Figure 1 shows one of the detector-level corrections behind the quoted precision. The pulse amplitude from 60 keV photons is correlated with the baseline voltage of a temperature-sensitive channel, and a linear correction narrows the reconstructed line. This is a practical point, not a cosmetic one: without stabilizing the calorimeter response, the statistical precision of the muonic peak would not translate into an accurate transition energy.

The analysis then applies event selection and spectral fitting to the coincidence and anti-coincidence data. The paper’s cut examples and broad-spectrum peak table indicate that the authors treat muon timing, pileup or event-shape rejection, and line assignment as part of the energy-extraction problem, rather than as after-the-fact cleaning. The transition energy is then connected to the nuclear radius through the atomic theory for muonic beryllium, where the finite size of the nucleus shifts the $2p \to 1s$ energy.

Results and Analysis

The headline number is 33,391.48(34) eV for the $2p \to 1s$ transition. From that, the paper extracts $r_c(^9\mathrm{Be}) = 2.5506(51)$ fm. Against the previous muonic spectroscopy result, the transition-energy uncertainty improves by a factor of 30. Against the commonly used electron-scattering radius, the radius uncertainty improves by a factor of 2.4 and the central value moves by 2.3 combined standard deviations.

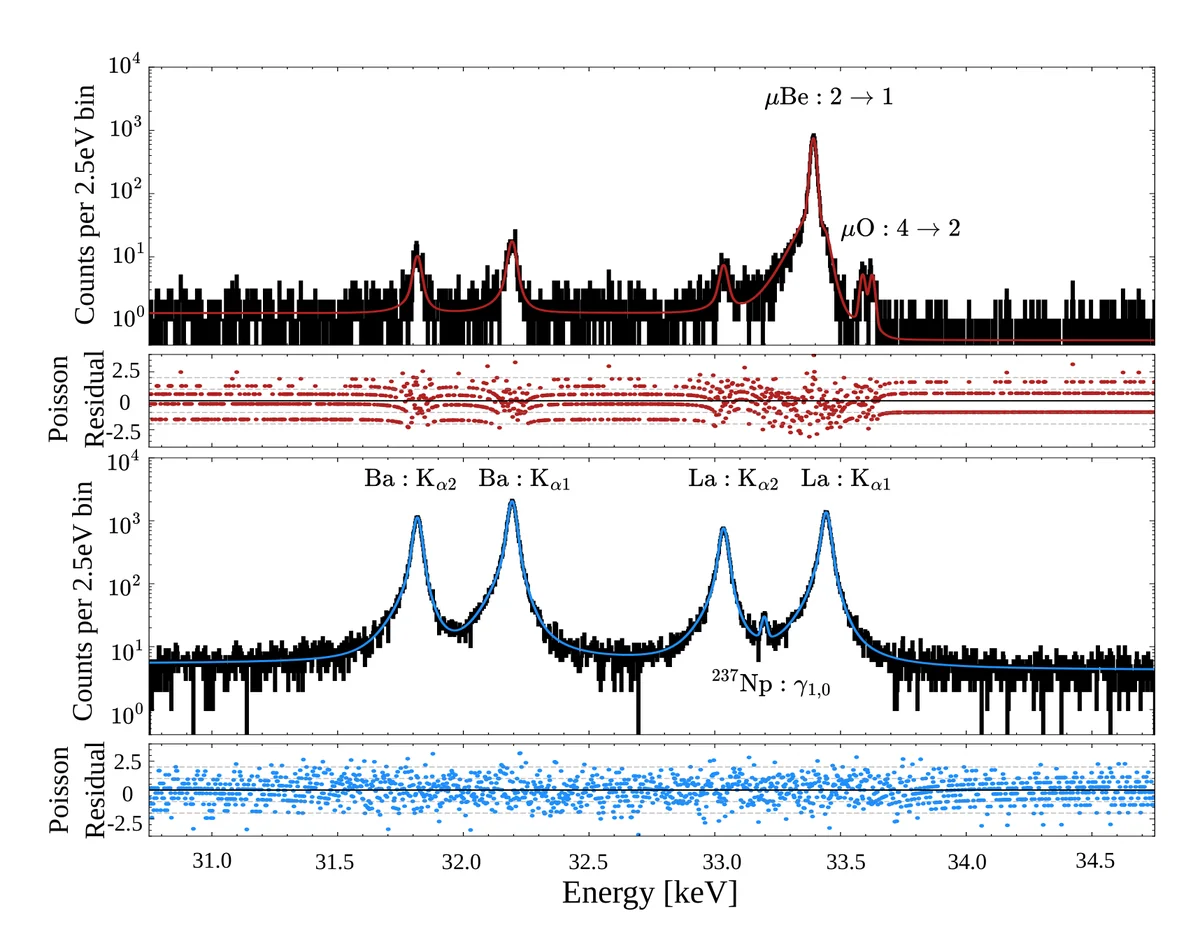

Figure 2 gives the compact view of why the measurement is credible: the coincidence spectrum isolates the muonic x-ray signal, while the anti-coincident spectrum supplies calibration structure. The fitted spectra combine 35 pixels in the area of interest, which also shows that the result is not a single-pixel artifact. The visual evidence is consistent with a careful metrology paper: the claim rests less on a new theoretical trick than on detector stability, line identification, and calibration over the relevant energy range.

The result should be read as strong evidence for a revised $^9\mathrm{Be}$ radius within the assumptions of the atomic and nuclear corrections used in the extraction. The 2.3σ tension with electron scattering is suggestive rather than decisive; it is large enough to motivate reanalysis or independent measurements, but not large enough to treat the older value as simply wrong. The broader significance is that microcalorimeter-based muonic x-ray spectroscopy now looks viable for charge-radius work, especially for nuclei where electron scattering is difficult or existing radii are limited by older experimental systematics.
