Laser-Driven Plasma Reproduces Intermittent Magnetic Turbulence

Intermittent magnetic turbulence is directly measured in the solar wind, but for most astrophysical systems it is inferred through models and remote observations. The problem is not only that the relevant plasmas are far away; it is that the magnetic field structure is clustered, scale-dependent, and tied to particle transport, so matching a single average field strength is not enough. This paper reports a laboratory route to that regime: start from a homogeneous magnetized plasma, seed it with a randomized laser intensity pattern, and reconstruct the evolving magnetic field with proton radiography.

Core Contribution

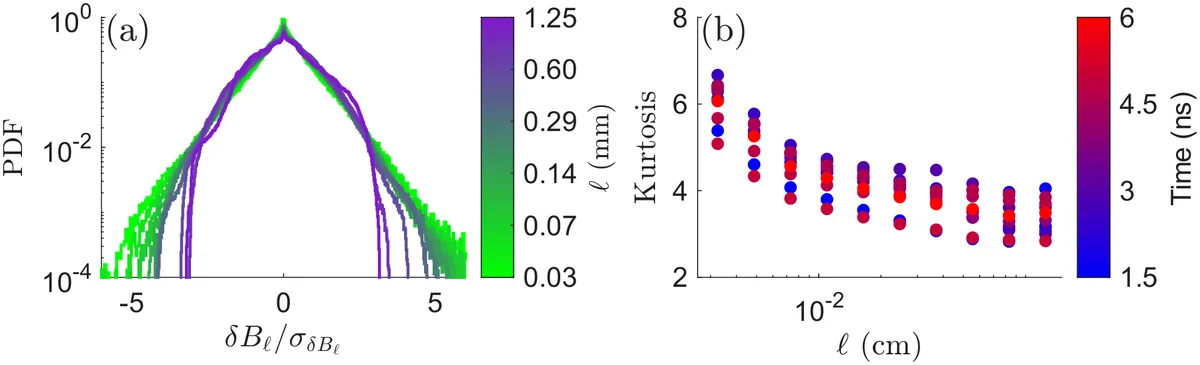

The central claim is experimental rather than algorithmic: a controlled laser-plasma setup can generate intermittent magnetic turbulence with diagnostics detailed enough to compare against space-plasma statistics. The authors do not merely show filamentary proton images. They retrieve path-integrated magnetic field maps, compute magnetic power spectra across ion and electron scale regions, measure increment probability distributions, extract structure-function scaling exponents, and track magnetic-field curvature over time. That combination matters because intermittency is a statistical property of the field, not a visual label.

Technical Approach

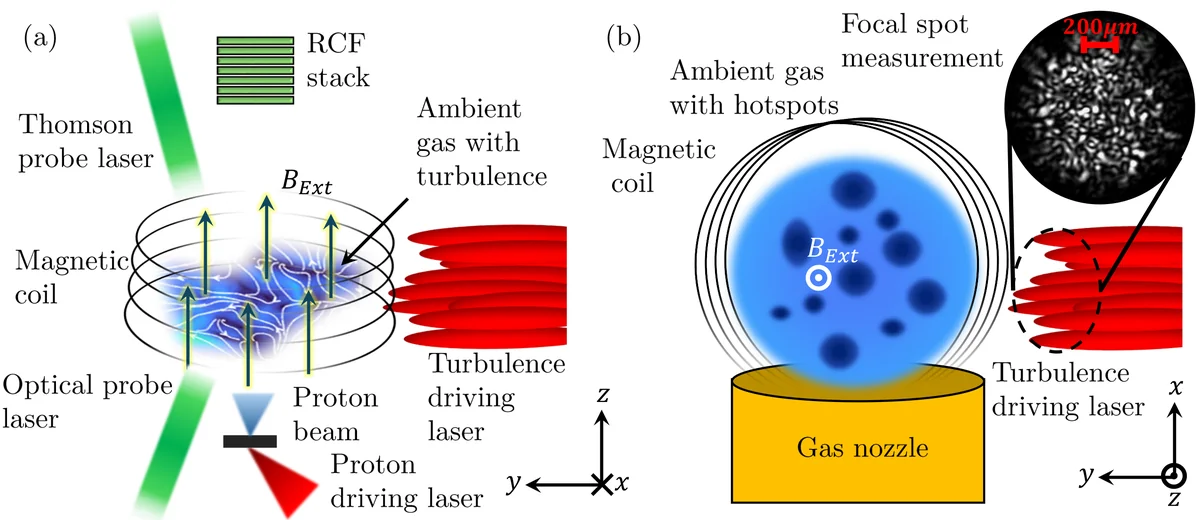

The experiment places an ambient hydrogen plasma inside a coil that supplies a 10 T background magnetic field along the $z$ axis. A randomized speckled laser beam propagates through the plasma along $y$, with average speckle diameter of about 20 µm, and drives local perturbations. A separate ultra-short laser pulse generates MeV protons that propagate along the external field and record the deflections caused by the turbulent magnetic structure on radio-chromic film layers. Figure 1 shows the geometry: the turbulence drive, the guide field, the proton probe, and the auxiliary Thomson-scattering and interferometry diagnostics.

The magnetic maps are reconstructed from proton radiographs using the PROBLEM code. The paper is careful about the metrology: lower-energy proton layers can overstate localized caustic effects, while the radiography can also understate magnetic amplitude in caustic regions. The authors correct amplitudes across radio-chromic film layers by using ratios of probing proton velocities, and they average quantities with similar sampling times because of temporal jitter between the seeding laser and proton probe.

The background plasma is characterized independently. Interferometry and Thomson scattering give density near $n_e = 5\times10^{17}\,\mathrm{cm}^{-3}$, with a Thomson-scattering fit reporting $T_e = 48.3$ eV and $T_i = 4$ eV; an inverse-Bremsstrahlung estimate gives $T_e = 46$ eV for the same density. The inferred plasma beta is about 0.1, and the electron Larmor-radius to collisional mean-free-path ratio is $2.2\times10^{-2}$, supporting the authors' claim that the plasma is magnetized and not dominated by collisional effects.

Results and Analysis

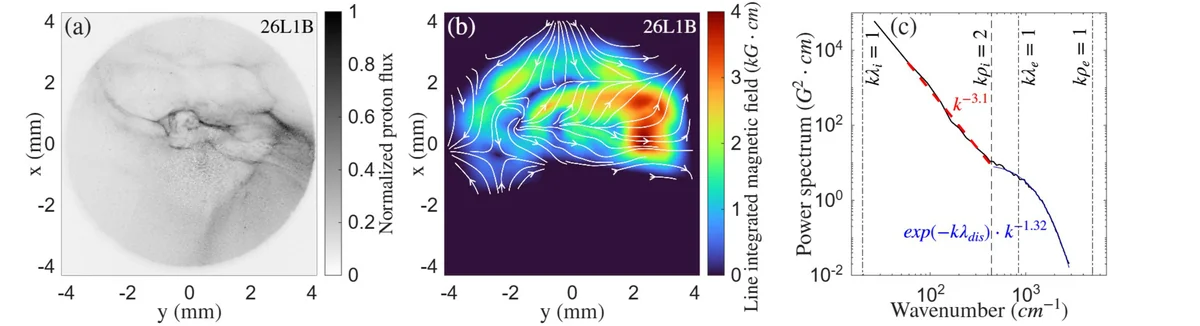

The clearest empirical object is the reconstructed magnetic field map in Figure 2. A 5 ns randomized laser beam in a low-density plasma produces fragmented magnetic structure; the corresponding power spectrum is fit separately in ion-scale and electron-scale regions, with vertical markers for relevant plasma scales. The authors report that the ion-region spectral exponent and the electron-region dissipation scale evolve approximately linearly in time. They also track RMS and maximum magnetic fluctuations, again parameterized with linear trends.

The astrophysical scaling appendix narrows the interpretation. For a typical solar flare comparison, the authors use laboratory parameters including $B_{\mathrm{guide,lab}}=10^5$ G, $n_{\mathrm{lab}}=5\times10^{17}\,\mathrm{cm}^{-3}$, and $T_e=46$ eV, and compare them with a flare scale of $10^6$ km, $V_{\mathrm{astro}}=616$ km/s, and $n_{\mathrm{astro}}=10^{12}\,\mathrm{cm}^{-3}$. The derived scaling factors include $a=5\times10^{11}$, $b=2\times10^{-6}$, and $c=0.21$, giving a magnetic-field scaling of $3\times10^{-4}$: the 10 T laboratory guide field maps to about 30 G, a plausible solar-flare value. A 1 ns laboratory time maps to about 38 minutes.

That is a meaningful case for relevance, but it is not a universal laboratory replica of astrophysical turbulence. The evidence is shot-based, path-integrated, and reconstructed through a forward model. The paper supports the narrower claim: this platform can generate and diagnose magnetic turbulence whose spectra, intermittency measures, curvature statistics, and similarity scaling make it a credible laboratory analogue for selected magnetized astrophysical plasmas.
