European XFEL Reaches Hard X-Ray Attosecond Nanofocusing

Hard x-ray free-electron lasers can already deliver femtosecond pulses with high peak power, but pushing the same regime into attosecond timing changes the experimental target. The value is not only shorter exposure. A nanofocused attosecond pulse with enough fluence can probe electronic motion while still driving nonlinear x-ray processes that normally require the largest XFEL facilities. This paper reports such a source at the European XFEL: hard x-ray attosecond pulses focused by total-reflection optics to intensities comparable to the highest values previously reached in the hard x-ray regime.

Core Contribution

The central result is an experimental operating point rather than a new algorithm or theory. The authors combine hard x-ray attosecond pulse generation at the European XFEL with total-reflection focusing x-ray optics, then characterize both the spectral selection and the focused beam. The claimed payoff is a nanofocused attosecond hard x-ray pulse with peak intensity on the order of $10^{20}$ W/cm².

That number matters because it moves attosecond hard x-ray operation closer to experiments that need both time resolution and field strength: higher-order nonlinear light-matter interactions, damage-limited structural measurements, and coherent control of atoms or molecules. The paper’s evidence for the intensity is not only an optics calculation. It uses saturation in amplified spontaneous emission from copper atoms as an experimental indicator that the focused pulses reached the intended regime.

Technical Approach

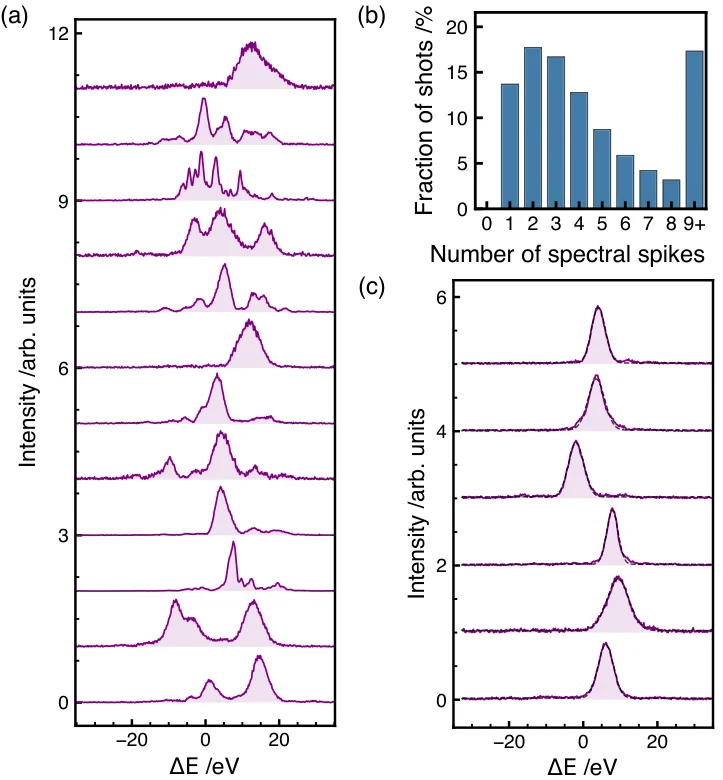

The workflow begins with the spectral structure of the attosecond XFEL pulses. Figure 1 shows that the source produces shot-to-shot spectra with discrete spikes, and the authors analyze 74,000 pulses to count how often single-spike events occur. Representative single-spike spectra are fit with Gaussian curves, which matters because the later focusing and intensity estimate depend on selecting pulses with a narrow, identifiable spectral feature rather than averaging over multi-spike SASE structure.

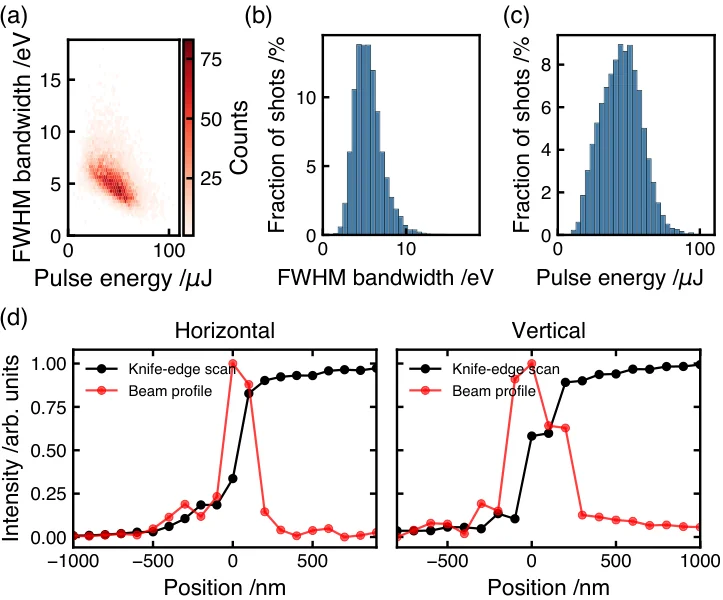

The selected pulses are then sent through total-reflection focusing optics. Figure 2 connects two practical quantities: the full-width-at-half-maximum spectral bandwidth and pulse energy, measured over 10,000 shots. The same figure reports the bandwidth and energy distributions and includes a knife-edge scan used to infer the focused intensity distribution. This is the key diagnostic bridge in the paper: the beam is not treated as an ideal focus, but as a measured spatial distribution coupled to a measured shot population.

Results and Analysis

The strongest evidence in the paper is the combination of single-shot statistics, focus characterization, and a material response that changes with intensity. The spectral dataset is large by the standards of a source-characterization paper: 74,000 pulses for spike counting and 10,000 focused single-spike shots for the bandwidth-energy correlation. Those measurements support the claim that the result is not a single favorable shot, but an operating regime that can be selected and characterized.

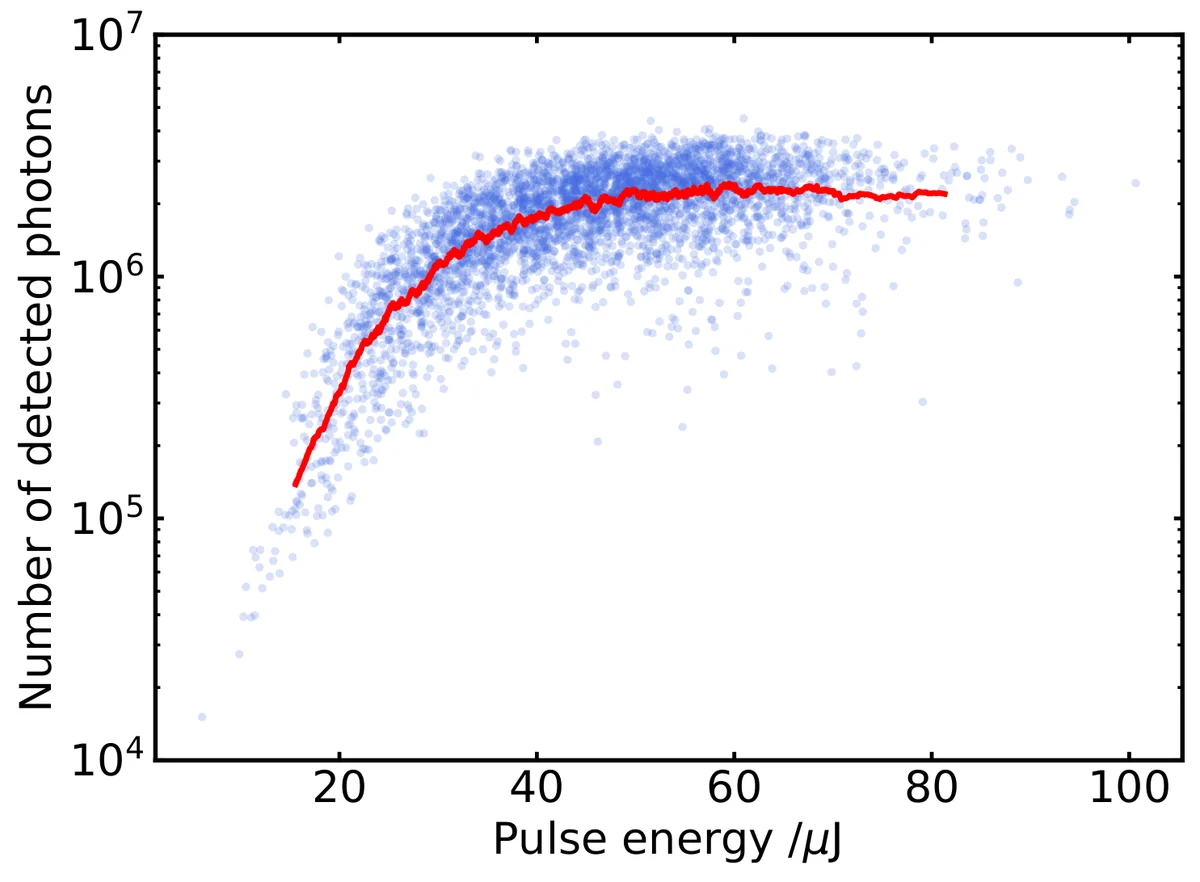

The peak intensity claim is anchored at roughly $10^{20}$ W/cm². The authors support it through fluorescence from a 20-µm-thick copper foil irradiated by single-spike pulses. Figure 3 plots the number of detected fluorescence photons over the shot sequence, with a moving average, and the paper interprets saturation in amplified spontaneous emission from copper atoms as confirmation that the focused attosecond pulses enter the high-intensity hard x-ray regime.

The interpretation is credible because the diagnostics are complementary: spectra identify usable attosecond pulses, the knife-edge scan constrains the focal spot, and the copper response tests whether the inferred intensity produces the expected nonlinear atomic signal. The result is still a source demonstration, not a full scientific application. The paper does not show damage-free structure determination or coherent control as completed experiments; it argues that the pulse conditions now make those experiments more plausible.

Caveats in Practice

The main caveat is selectivity. The figures emphasize single-spike pulses, bandwidth distributions, and pulse-energy variation, which means users will likely work with filtered shot populations rather than a uniform pulse train. The intensity confirmation is also indirect: saturation in copper amplified spontaneous emission is a strong physical marker, but it is not the same as a direct attosecond temporal-field measurement at focus. For experimental groups, the practical question is whether the usable fraction of shots, stability, and target survivability match the needs of a specific measurement. Within that scope, the paper provides a solid demonstration that European XFEL can deliver nanofocused hard x-ray attosecond pulses in a regime relevant to nonlinear x-ray science.
