Binding Energy Reshapes Compton Electron Emission

The quasi-free-electron picture treats Compton scattering as a photon colliding with an electron that is initially almost free, with binding energy added as a correction. That approximation is useful for broad kinematic estimates, but it discards the Coulomb field through which the ejected electron must travel. This paper measures the full momentum balance for 20 keV photon scattering from Ne 2p, Ne 2s, C 1s, O 1s, and Ne 1s electrons, finding orbital-dependent departures from the quasi-free prediction.

Core Contribution

The central contribution is a differential experimental test of how binding energy and the residual ion jointly affect Compton ionization. Rather than inferring electron behavior from an inclusive spectrum, the authors reconstruct electron, recoil-ion, and scattered-photon momenta event by event. They then examine electron emission relative to the photon momentum-transfer direction at fixed electron energies.

The paper's claim is more specific than a generic bound-state correction: the ionic potential can scatter emitted Compton electrons after the photon interaction, including into the backward hemisphere. The effect changes with the orbital from which the electron originates. This makes the initial-state momentum distribution only part of the explanation; final-state propagation in the Coulomb potential also matters.

Technical Approach

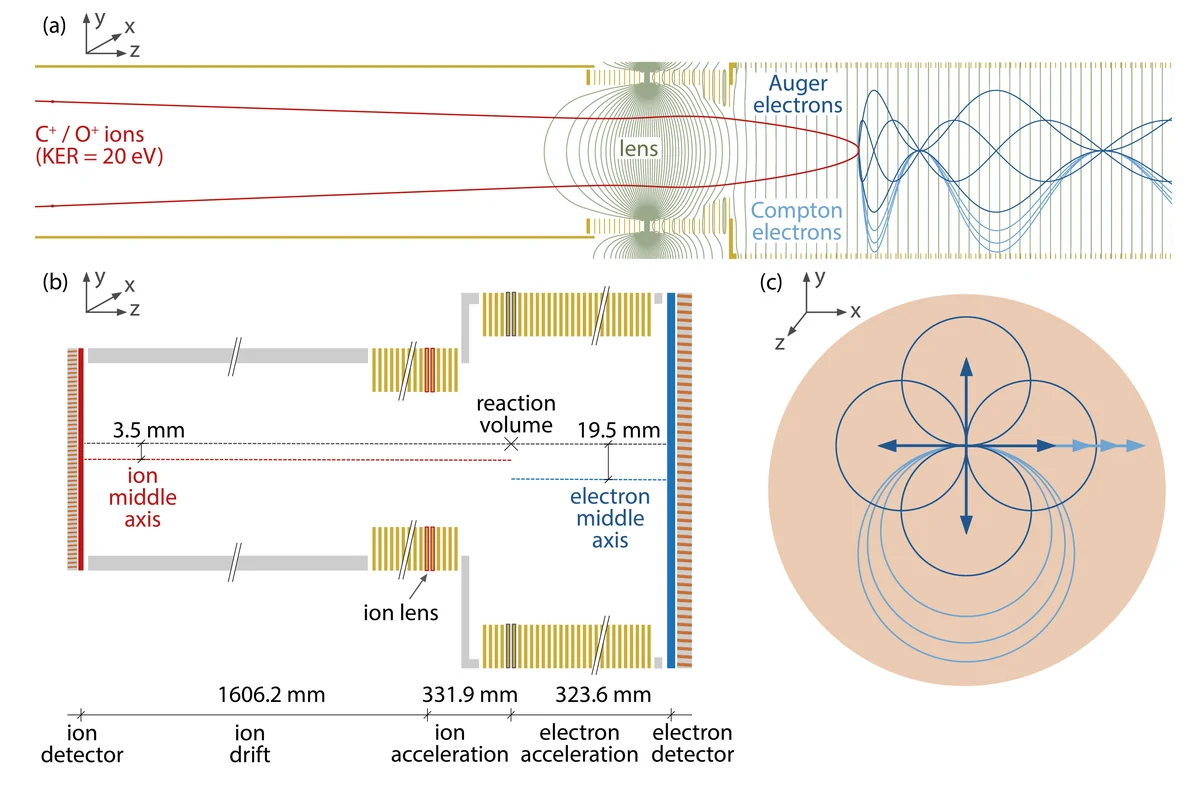

The experiment uses a COLTRIMS reaction microscope with a 150 mm electron detector, an ion lens and drift region, and magnetic guiding fields. The geometry is designed to collect forward-directed Compton electrons up to 2 keV while retaining ion momentum resolution of about 0.13 a.u. For molecular CO targets, coincident C+ and O+ fragments provide the recoil information; the spectrometer simulation shown in Figure 2 lays out how high-energy electron and ion trajectories are brought onto their respective detectors.

For each event, measured electron and ion momenta are used to calculate the scattered-photon momentum, assuming a 20 keV incoming photon. The analysis compares the measured energy--angle distributions with the binary-encounter locus for an electron initially at rest. It also adds two progressively less simplified reference cases: a 2% incident-photon bandwidth and an initial momentum distribution appropriate to the Ne L shell. Those comparisons separate broadening associated with the source and bound-state momentum from distortions that remain attributable to the residual potential.

Results and Analysis

The Ne L-shell distributions show that the free-electron kinematic curve is not an adequate description across the measured photon scattering angles. In the L-shell analysis, the reference curve subtracts an average binding energy of 28.3 eV, calculated from the 2s and 2p contributions. Yet the measured distributions still differ from both the electron-at-rest prediction and the initial-momentum-broadened expectation. The reported mismatch is therefore not reduced to a binding-energy offset.

For Ne K-shell ionization, where the ionization potential is 870.2 eV, the paper presents absolute yields and angular projections under the same 20 keV photon conditions. The emission maps compare all momentum-transfer angles with subsets at 20°--30° and 50°--60°. Across L- and K-shell cases, the measured electron patterns contain population opposite the nominal momentum-transfer direction, which the authors identify as Coulomb-potential scattering and back-reflection.

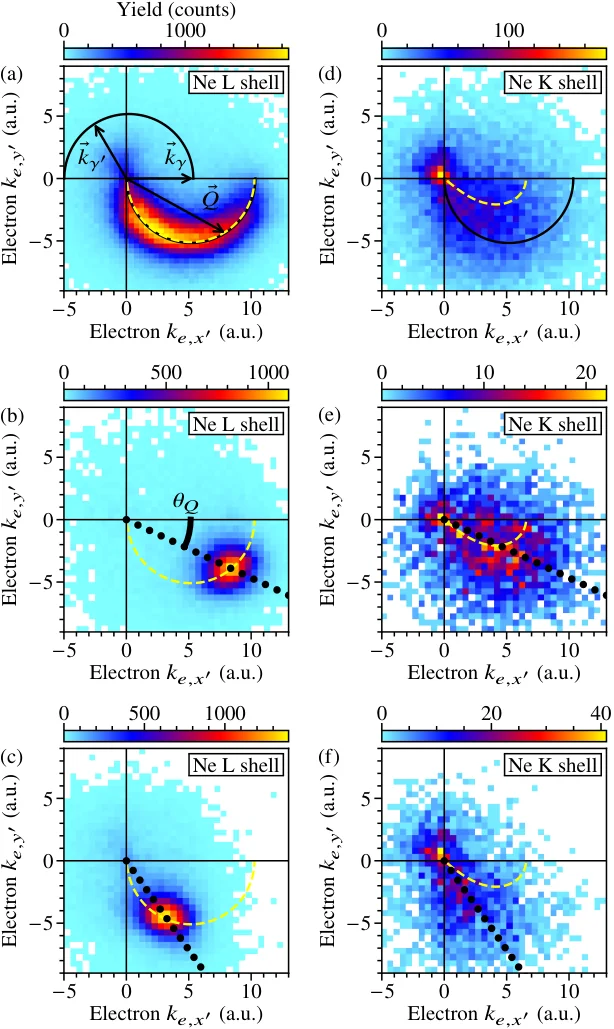

Figure 6 makes the distinction visually direct: the data are plotted against momentum-transfer curves for a free electron at rest and for a binding-energy-corrected version. Neither curve by itself represents the observed angular structure. The comparison is persuasive because it is repeated for outer-shell and inner-shell ionization rather than resting on a single target.

The evidence supports the narrower conclusion that quasi-free kinematics miss orbital-dependent final-state effects under these conditions. It does not establish a universal correction for Compton scattering: the study fixes the incident photon energy at 20 keV and examines a selected set of neon, carbon, and oxygen orbitals. For atomic-physics modeling and coincidence experiments, however, the result is consequential: treating binding energy solely as an energy subtraction can misplace both the electron-energy distribution and the emission direction.
