Permanent-Magnet Penning Trap Reaches 47 ppb Axial Stability

Precision Penning-trap experiments usually depend on large superconducting solenoids to supply a stable magnetic field. That infrastructure supports demanding measurements, but it also constrains cost, size, and transportability. The authors report a cryogenic alternative: a Penning trap operated at 4 K inside an NdFeB permanent-magnet assembly, with non-destructive image-current detection for ions and electrons.

The paper’s central result is a functioning experimental chain rather than a new frequency-estimation algorithm. It loads, confines, and detects protons, H₂⁺ ions, and electrons; resolves individual protons and H₂⁺ ions with superconducting resonators; and measures a 47 parts-per-billion shot-to-shot axial-frequency stability. That is the relevant benchmark for axial-mode precision work, although the paper does not show a full flagship measurement such as a particle magnetic moment.

Core Contribution

The distinctive engineering choice is to replace the usual superconducting field source with a compact permanent-magnet system while retaining a cryogenic, compensated five-pole Penning trap and resonant image-current detectors. The reported central field is 280 mT. The authors position this as a route to lower-infrastructure experiments and, eventually, compact systems for storing and transporting exotic particles such as antiprotons.

This is a meaningful integration result because permanent magnets bring a different stability problem: their field depends on temperature, while precision frequency measurements translate small field changes directly into measurement noise. The authors therefore characterize both the magnet geometry and the frequency consequences of the assembled system rather than treating the magnet as a fixed field source.

Technical Approach

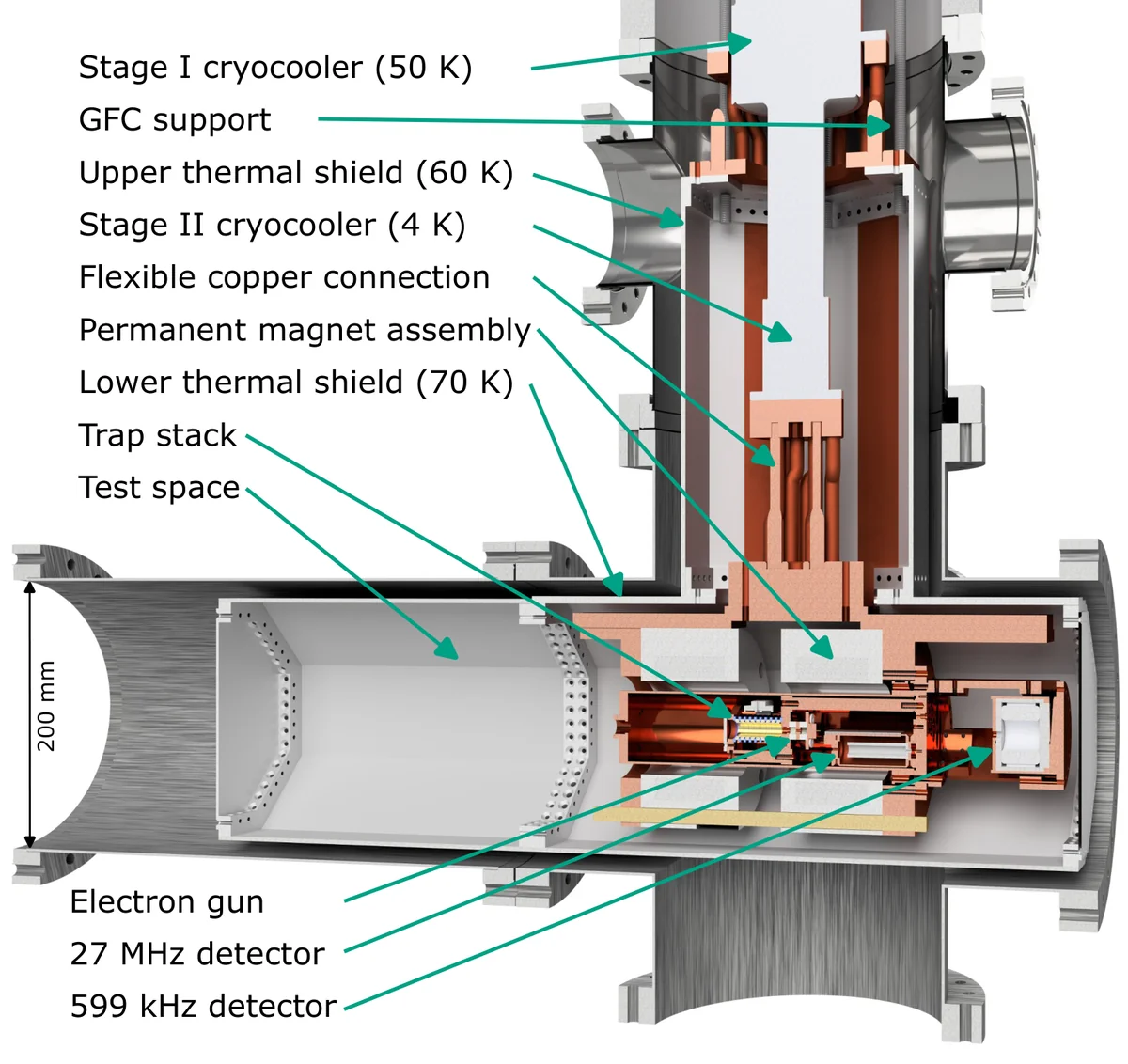

Figure 1 shows the physical arrangement: a two-stage Gifford--McMahon cryocooler, radiation shields, an Aubert-configuration permanent-magnet assembly, and the electrode stack at its center. Flexible copper braids thermally anchor the system, while glass-fiber-composite supports reduce conductive heat load. The instrument includes separate non-destructive detection paths near 599 kHz for ions and 27 MHz for electrons, plus an electron gun for loading.

The trap is a compensated, orthogonalized five-pole design with extended endcaps and a 9 mm inner electrode diameter. Correction and ring-electrode voltages tune the electrostatic potential. The authors use the signal-to-noise ratio of a single-particle axial dip to identify the best compensation setting, an operational check that the electric-field geometry is suitable for precision detection.

The magnet assembly comprises 56 NdFeB ring magnets. Finite-element field-line calculations guide the arrangement, while Hall-probe measurements quantify how changing ring spacing changes the magnetic-bottle term. The reported scaling is 8.2(1.4) T/m² per 1 mm spacing change. A trapped-particle measurement independently extracts the axial field coefficients by shifting a particle along the trap axis and fitting its cyclotron-frequency response.

Results and Analysis

The particle demonstrations establish that the device is not only mechanically and cryogenically complete. The authors observe axial dips from 43(2) H₂⁺ ions, approximately 800 trapped electrons, and proton ensembles whose dip-width scaling yields a single-proton width of 7.11(2) Hz. These measurements support the claimed single-particle sensitivity for protons and H₂⁺, though they are detector-characterization results rather than a direct comparison against a superconducting-trap measurement.

For axial-frequency readout, the paper reports a 15 mHz fluctuation noise floor and a long-term drift of about 300 mHz. At the stated axial frequency of 599.274 kHz, the abstract summarizes the shot-to-shot stability as 47 ppb. The authors attribute the observed noise floor to independently measured power-supply noise and describe the long drift as unimportant over reasonable averaging intervals. That distinction matters: short-run axial readout is already credible, but thermal behavior remains the limiting system property.

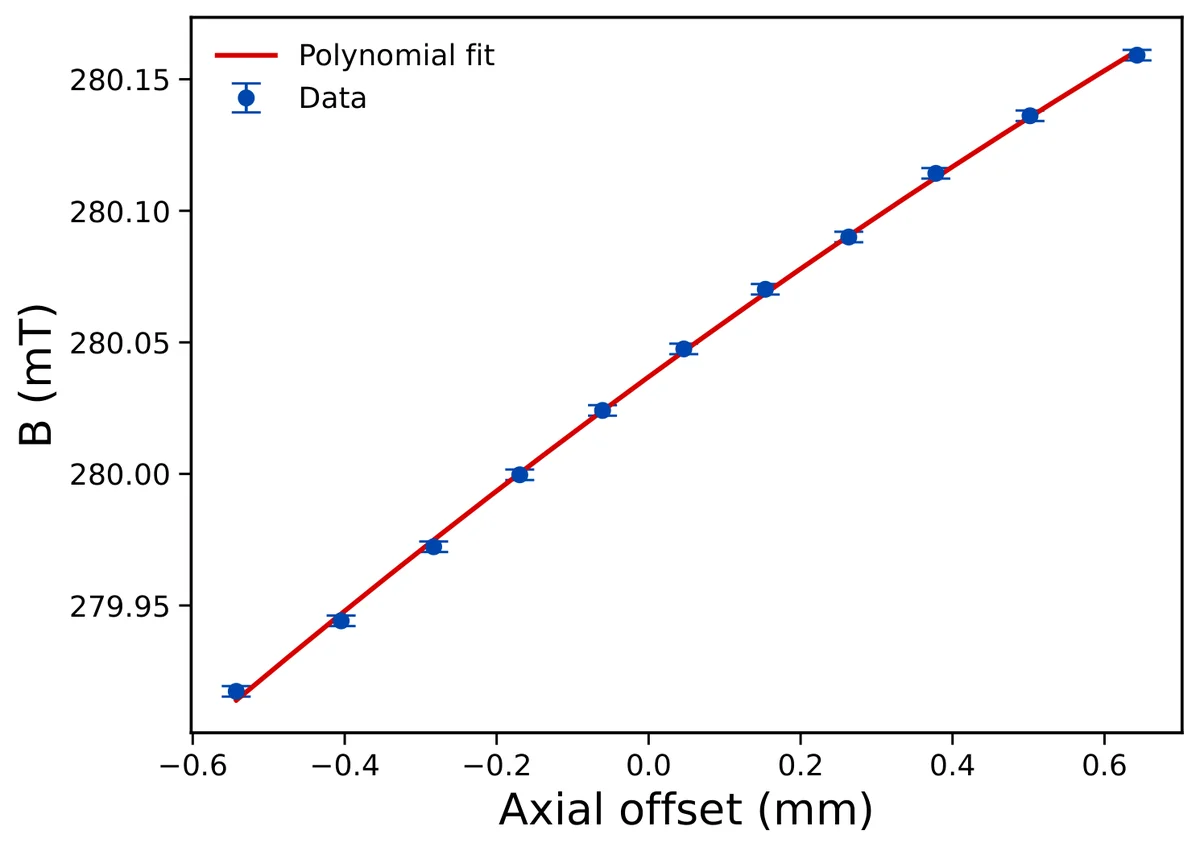

Figure 7 provides the more direct field characterization from a trapped particle. A parabolic fit to cyclotron frequency versus imposed axial displacement gives $B_1 = 211.0(1.8)$ mT/m and $B_2 = -28.4(5.1)$ T/m². The method connects magnet imperfections to an in-trap observable, which is stronger evidence than a room-temperature Hall-probe scan alone.

The modified-cyclotron measurement is less precise: its reported shot-to-shot scatter is 0.14 ppm, presently limited by millikelvin-scale temperature fluctuations of the permanent-magnet assembly. The authors outline thermal stabilization, magnetic shielding, field correction, and higher-sensitivity detection as improvements, and project more than an order-of-magnitude progress. That projection is plausible as an engineering direction, but it is not yet demonstrated in this instrument. The present evidence supports compact axial-mode measurements and component development; it does not yet establish parity with leading superconducting systems across the full set of high-precision observables.

Practical Limits

The device is presently specialized around a 280 mT permanent field and axial-mode detection. Its temperature coefficient couples cryogenic stability to magnetic-frequency stability, and the paper’s own highest-level cyclotron result remains temperature-limited. Future antiproton transport, particle injection and ejection hardware, SQUID-based detection, and additional particle sources are described as planned extensions rather than experimentally validated capabilities.
