Laser-Plasma Accelerator Delivers Microcoulomb Beams and Joule X-Rays
A kilojoule-class PETAL pulse drives mixed wakefield and direct laser acceleration, producing electron beams above 1 µC and broadband bremsstrahlung at the joule level.
Underlying Paper
Microcoulomb-level electron beam and multi-Joule hard X-rays driven by a high-efficiency laser-plasma accelerator
We report on the production of ultrahigh-charge relativistic electron beams and the development of a laser-wakefield acceleration platform at the LMJ facility. Making use of the kilojoule-class, sub-picosecond PETAL laser pulse focused onto a supersonic helium gas jet, electron beams carrying a total charge beyond 1 $\mu$C were generated, with energies up to $\sim$500 MeV. Given the ps-scale laser pulse duration, an on-target intensity approaching $10^{19}~\mathrm{W/cm^2}$, and a plasma density reaching 2% of the critical density, electron energisation arises from a combination of self-modulated laser wakefield acceleration (SMLWFA) and direct laser acceleration (DLA). The resulting electron spectrum exhibits a Maxwellian-like distribution, characteristic of this mixed SMLWFA/DLA regime. The total energy carried by the electron beam is estimated to be up to 17 J, within a sub-ps duration. A broadband Joule-level photon beam was also produced by Bremsstrahlung, demonstrating the potential for future applications. Experimental results are supported by start-to-end numerical simulations, including 3-D particle-in-cell and Monte-Carlo particle transport calculations. These findings pave the way for applications requiring high-charge electron beams, including the generation of high-power secondary radiation or particle sources. The use of these beams to probe matter in high-energy density states driven by the nanosecond-duration LMJ beams represents another promising avenue.
High-charge laser-plasma accelerators are attractive when the priority is total beam energy and secondary-radiation yield rather than a narrow, quasi-monoenergetic electron spectrum. Most laser-wakefield work operates with far less charge, which constrains bremsstrahlung brightness and limits coupling to dense or extended targets. Mahieu and colleagues report a platform at the Laser Mégajoule facility that moves into a different operating regime: a sub-picosecond, kilojoule-scale PETAL pulse produces relativistic electron beams above 1 µC, with detected energies reaching roughly 500 MeV and estimated beam energy as high as 17 J.
Core Contribution
The central contribution is an experimentally demonstrated high-efficiency laser-to-electron source based on a deliberately mixed acceleration regime. Rather than presenting a conventional bubble-regime wakefield accelerator optimized for spectral quality, the authors use a supersonic helium jet at densities up to 2% of the critical density. The long, intense drive pulse self-modulates in plasma, supporting self-modulated laser wakefield acceleration (SMLWFA), while direct laser acceleration (DLA) also energizes trapped electrons.
That choice produces the Maxwellian-like spectrum expected from mixed SMLWFA/DLA, but it also makes the source useful for applications that value charge and deposited energy. The paper’s practical claim is therefore narrower and more consequential than a claim of improved beam quality: kilojoule-class laser infrastructure can generate a sub-picosecond, multi-joule relativistic electron pulse and convert it into a broadband hard-X-ray source.
Technical Approach
PETAL is focused onto the helium gas jet at an on-target intensity approaching . In this parameter range, the pulse duration is on the picosecond scale rather than the tens-of-femtoseconds range commonly associated with short-pulse wakefield operation. The authors attribute the electron energization to the combined action of a laser-driven plasma wake and the transverse laser field acting directly on electrons. This is also why the measured distribution is broad rather than peaked at one energy.

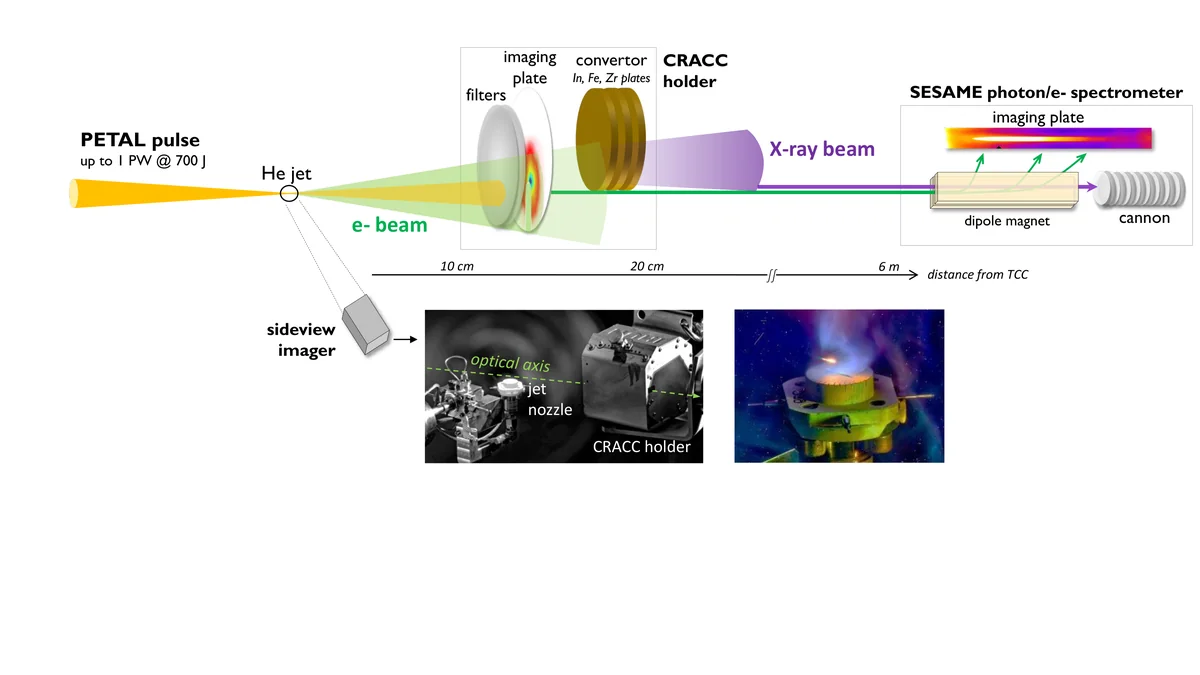

Figure 1 situates the experiment geometrically, showing the top-view setup and target-chamber-center images recorded before and during a shot. The diagnostic layout matters here because the result depends on integrating a high-charge, broad-spectrum beam rather than selecting a small high-energy fraction.
The interpretation is supported with start-to-end modeling: three-dimensional particle-in-cell calculations address the laser-plasma interaction and electron acceleration, while Monte-Carlo particle-transport calculations connect the electron beam to the bremsstrahlung output. This division of labor is appropriate for the experiment, although it also means that the photon-source estimate inherits assumptions from the simulated electron distribution and transport geometry.
Results and Analysis

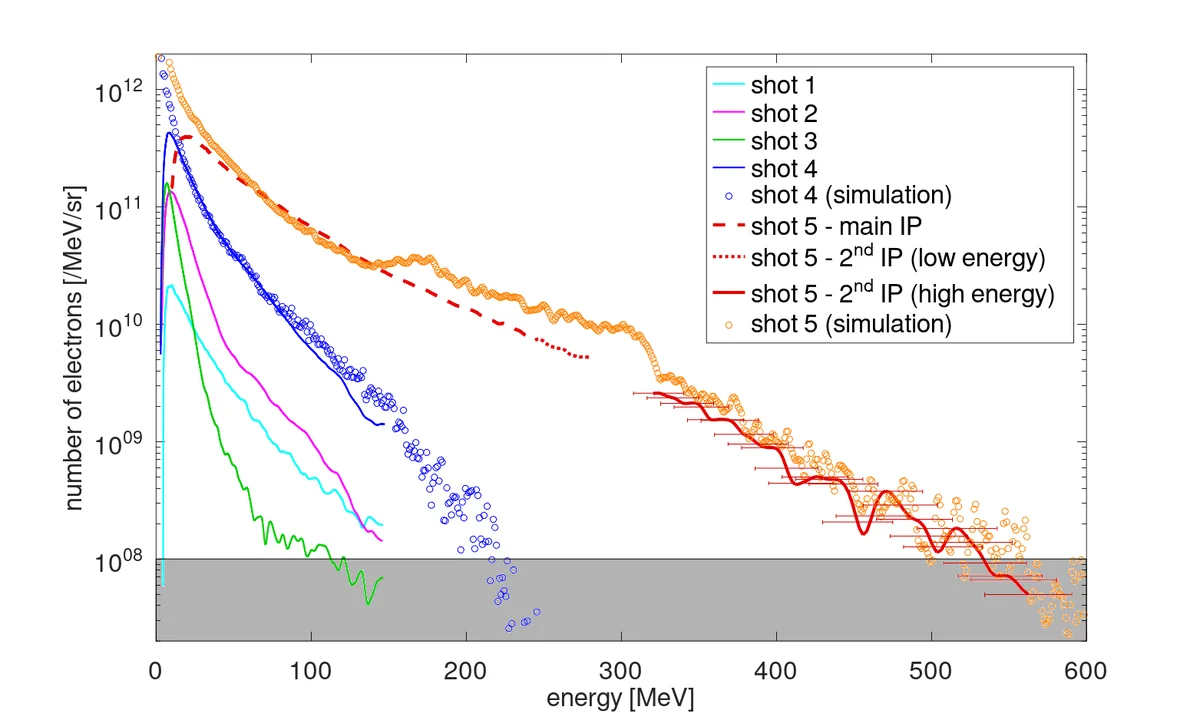

Across the reported shots, the measured electron spectra extend into the relativistic range; for the final shot, the SESAME high-energy detection range was extended beyond 500 MeV. Figure 3 compares measured on-axis spectra with simulations. The caption identifies measured curves and simulated points, flags the electrons/MeV/sr average detection threshold, and notes that shots 1–4 were limited to 150 MeV in the high-energy diagnostic range. That instrumentation detail is essential: the absence of a measured tail above 150 MeV in the earlier shots is not evidence that no such electrons were present.
The headline quantities are substantial for a laser-plasma source: total charge beyond 1 µC, electron energies up to about 500 MeV, and up to 17 J estimated in the electron beam. The accompanying broadband bremsstrahlung reaches the joule level, demonstrating that the charge-rich spectrum can be converted into hard radiation rather than merely diagnosed as an electron-beam result. For high-energy-density-matter probing, this may be more valuable than a cleaner spectrum because secondary-source yield scales with the available electron population and energy.
The evidence supports the existence of the mixed-regime, high-charge source and its bremsstrahlung conversion. It does not establish a general replacement for low-charge, high-quality wakefield injectors: the reported spectrum is Maxwellian-like, the energy estimate is model-assisted, and the experiment is tied to a specific kilojoule-class facility and gas-target configuration. The work is best read as a demonstrated route to high-fluence secondary sources, with source optimization still open.
Evidence Box
strongKey Claims
- •Mixed SMLWFA/DLA produces ultrahigh-charge relativistic electron beams
- •Kilojoule-class PETAL pulses can drive multi-joule electron beams
- •Broadband bremsstrahlung can provide a joule-level hard-X-ray source
Key Results
- •Total electron charge beyond 1 µC from the helium gas jet
- •Electron energies detected up to approximately 500 MeV in shot 5
- •Electron-beam energy estimated up to 17 J within a sub-ps duration
- •PETAL intensity approaches 10¹⁹ W/cm² at plasma density up to 2% of critical
Limitations & Caveats
- •Maxwellian-like spectrum rather than a narrow energy peak
- •Shots 1–4 had a 150 MeV high-energy SESAME detection limit
- •17 J beam-energy estimate depends on start-to-end simulations
- •Evaluation is tied to one kilojoule-class facility and helium-jet configuration
