FLARE Extends Laboratory Access to Multiple X-Line Reconnection

Magnetic reconnection converts magnetic energy into particle heating, bulk flows, and radiation across solar, astrophysical, and fusion plasmas, yet laboratory experiments have had limited access to the large-system, high-Lundquist-number regimes where multiple X-lines and plasmoids emerge. The Facility for Laboratory Reconnection Experiments (FLARE) is built to close part of that gap. It retains the controllable two-flux-core geometry of MRX while enlarging the machine, strengthening its magnetic systems, and separating several drive functions that were previously more coupled.

Core Contribution

FLARE is primarily an experimental facility paper, not a claim of a newly measured reconnection scaling law. Its contribution is an engineered platform intended to move systematically across the reconnection phase diagram using the Lundquist number $S$ and normalized system size $\lambda$. The stated design targets are $S\sim10^5$ and $\lambda\sim10^3$, whereas initial anti-parallel operation is reported at $S\sim2{,}500$ and $\lambda\sim60$.

What is new relative to MRX is the combination of larger adjustable flux-core separation, stronger and highly segmented magnetic coils, independent ohmic heating, and separate inner and outer drive coils. That separation matters experimentally: it should let operators change the reconnection electric field and its spatial profile without equivalently changing the background field geometry. The facility is therefore positioned for controlled comparisons of collisional, collisionless, and hybrid multiple-X-line regimes rather than as a single-purpose pulsed device.

Technical Approach

The two toroidal flux cores have a major radius of 75 cm and a minor radius near 15.5 cm. Their toroidal-field windings use 60 turns split into four parallel 15-turn segments, reducing inductance and toroidal-field ripple; the peak current per segment is 62.5 kA. The poloidal-field system is designed around high-current, rapid flux changes, while the flux-core separation can be adjusted from 0.8 m to 1.6 m to vary the macroscopic system size.

Table 4 shows how the electrical design is distributed across the machine: the flux-core poloidal field is specified at 135 kA per segment, ohmic heating at 90 kA, guide field at 40 kA, and the inner drive coils at 40 kA. The authors report that the guide-field conductors carry 40 kA for 40 ms, while the drive-coil systems are designed to generate reconnection electric fields up to about 300 V/m. This segmentation is a practical response to the inductive constraints of pulsed reconnection experiments, although realized rise times can exceed the shortest circuit estimates because of stray impedance.

The diagnostic design is similarly oriented toward cross-checking. Magnetic probe arrays reconstruct flux contours; triple Langmuir probes infer local plasma parameters with a stated 10%–20% standard uncertainty; a 1550 nm heterodyne Michelson interferometer measures line-integrated density; ion Doppler spectroscopy supplies ion temperature and flow; and a fast camera records visible emission. The interferometer uses a 40 MHz frequency shift and a roughly 6 m plasma path. The camera operates at 60,000 frames/s over 256 × 128 pixels, or up to 120,000 frames/s with a reduced field of view.

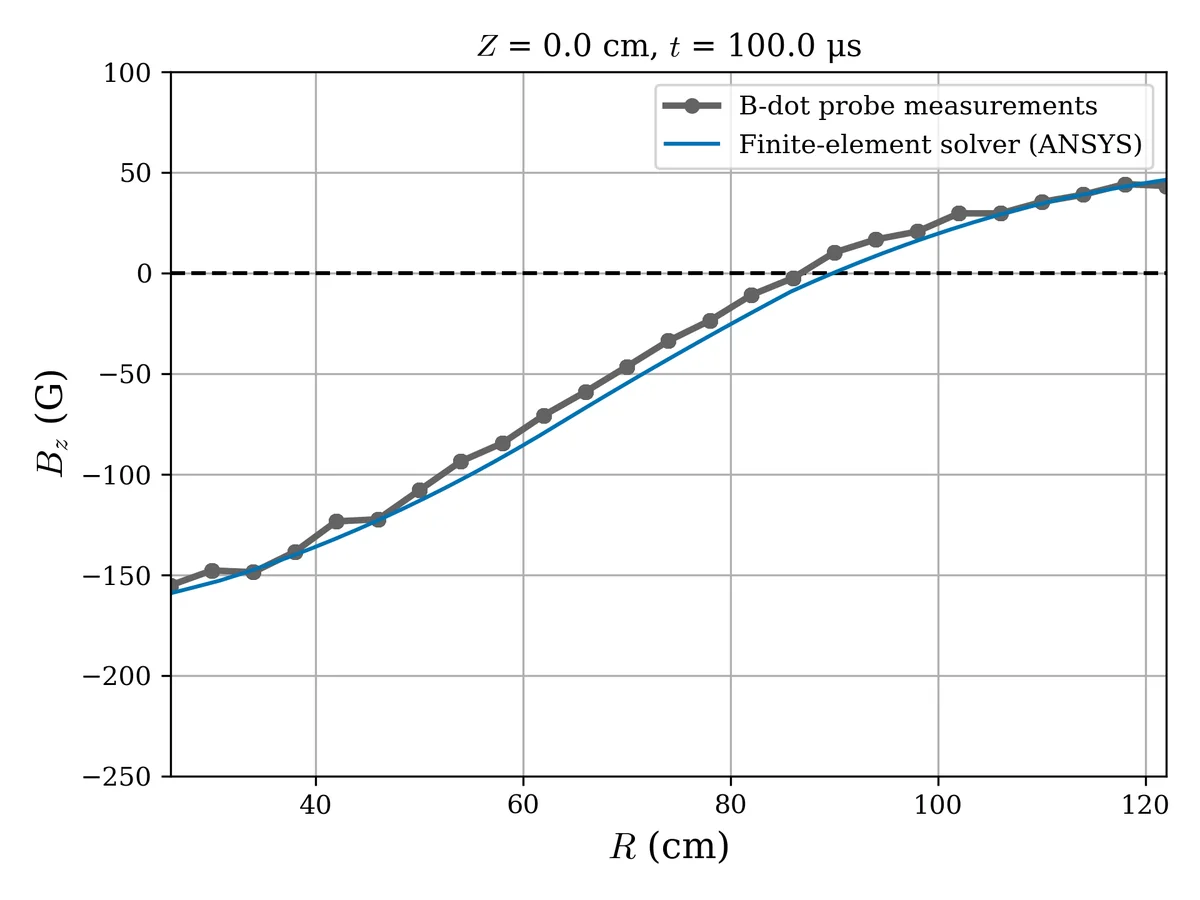

The vacuum-field validation is an important engineering check rather than a plasma-physics result. Figure 8 compares B-dot measurements with an ANSYS Maxwell finite-element calculation over a radial cut at $Z=0$ and $t=100\,\mu\mathrm{s}$; the plotted profiles track closely across the measured range. That agreement supports the claim that the flux-core field configuration and the treatment of vessel eddy currents are adequate for interpreting later plasma measurements.

Results and Analysis

Initial operation demonstrates symmetric push-pull reconnection, spheromak merging, and asymmetric downstream configurations. Fast-camera images at 210 $\mu\mathrm{s}$ during pushing and 293 $\mu\mathrm{s}$ during pulling show emission structures overlaid with probe-reconstructed flux contours. The reported qualitative agreement is useful because it ties optical observations to a magnetic-topology diagnostic, but it does not yet establish reconnection rates, plasmoid statistics, or particle-heating scalings in the target regime.

At the current Stage 2.5 operating point, the authors report electron density $0.5$–$30\times10^{19}\,\mathrm{m}^{-3}$, electron temperature 10–15 eV, reconnecting field about 0.05 T, and system size $L=0.8$ m. These conditions already reach multiple-X-line-accessible territory in the authors' phase-diagram framing, but they remain well below the facility's eventual $S$ and $\lambda$ targets. The paper therefore provides credible evidence that the apparatus, magnetic calibration, and initial diagnostics work together. Evidence for the broader astrophysical and fusion-relevant parameter-space program will depend on future higher-energy operation and quantitative reconnection measurements.

Limits in Practice

The paper reports commissioning-stage capabilities rather than a completed survey of the proposed phase diagram. Several upgrades are still planned, including additional drive-coil installation, advanced diagnostics, higher discharge energy, and integration with fully kinetic simulations. The strongest conclusion is consequently narrow: FLARE is operational and configurable at its present parameters; its intended reach to $S\sim10^5$ and $\lambda\sim10^3$ is a design objective, not yet an experimentally demonstrated operating point.
