SuperSUN Sustains High-Density Ultracold Neutron Production

Ultracold neutron experiments are often limited less by detector technique than by source phase space: experiments on neutron lifetime, electric dipole moments, and low-energy neutron interactions need large UCN populations, controllable spectra, and stable delivery over long running periods. This paper reports the first operating results from SuperSUN at the Institut Laue-Langevin, a superthermal UCN source that converts a broad-spectrum cold neutron beam in isotopically pure superfluid $^4\mathrm{He}$ below $0.6\,\mathrm{K}$. The central result is an experimentally characterized source that can run continuously and can also store UCN in the converter before extraction.

Core Contribution

The paper's contribution is not a new neutron-production principle; superthermal conversion in superfluid helium is established. What is new here is the demonstrated source implementation at high intensity, with two operating modes that serve different experimental needs. In continuous mode, SuperSUN extracts UCN while the cold beam remains on. In accumulation mode, it stores produced UCN behind a closed valve, shuts off the beam, and then releases the stored population. That distinction matters because some experiments want rate stability, while others benefit from high-density pulses or from removing beam-related backgrounds before measurement.

Figure 1 shows the apparatus layout: a cold-neutron extraction guide, a UCN converter and valve, a VAT shutter, and a vertical guide to the detector. The 90-degree bend before the shutter displaces the UCN extraction path from the direct cold neutron beam, which is a practical design choice for background control rather than just geometry.

Technical Approach

SuperSUN uses inelastic scattering in cold superfluid helium to downscatter incident neutrons into the ultracold range. The source is operated below $0.6\,\mathrm{K}$ so that upscattering is suppressed enough for UCN storage to become useful. The paper then characterizes production, storage, extraction, and the resulting energy spectra through timed sequences: accumulation time $t_a$, optional holding time $t_h$, and controlled valve opening.

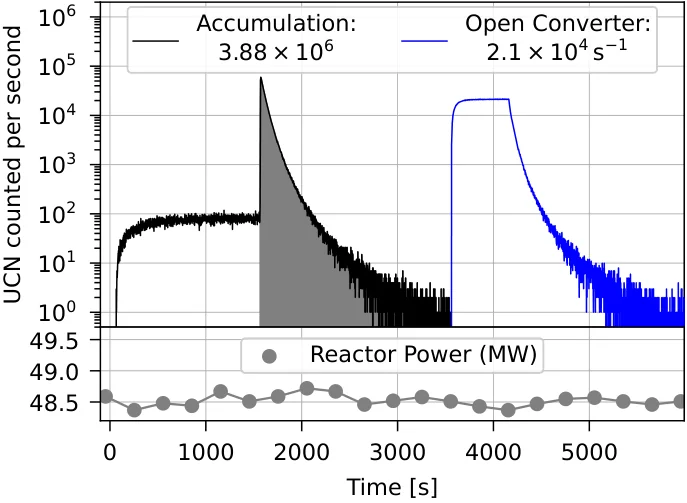

Figure 2 captures the two operating modes directly. In a 1500 s accumulation run, a closed converter leaks about $80\,\mathrm{s}^{-1}$ through a monitoring hole in the UCN valve; after the cold beam is shut off and the valve is opened, the extracted UCN population is the shaded peak area, reported as $3.88\times10^6$. In continuous mode, with the UCN valve open and the beam on, the paper reports a steady extracted rate of $2.1\times10^4\,\mathrm{s}^{-1}$ before the beam is shut off after a chosen interval.

The source also offers spectral control. The paper reconstructs in-situ total-energy spectra from extraction data and a physical model, with storage and extraction thresholds marked in the plotted spectra. By combining two accumulation/hold sequences, specifically $(1500\,\mathrm{s},800\,\mathrm{s})$ and $(150\,\mathrm{s},0\,\mathrm{s})$, the authors show that the delivered spectrum can be made nearly flat across a useful low-energy range. That is a practical knob for experiments whose systematic errors depend on the UCN energy distribution.

Results and Analysis

The headline numbers are substantial for this class of source: $21{,}000\,\mathrm{s}^{-1}$ continuous extraction, $273\,\mathrm{cm}^{-3}$ saturated storage density in the source, and demonstrated continuous operation over 60 days with an intense broad-spectrum cold neutron beam. The accumulation-mode example gives $3.88\times10^6$ extracted UCN after 1500 s of accumulation, while the delayed-extraction measurement shows that a large stored population remains measurable after an 800 s holding period.

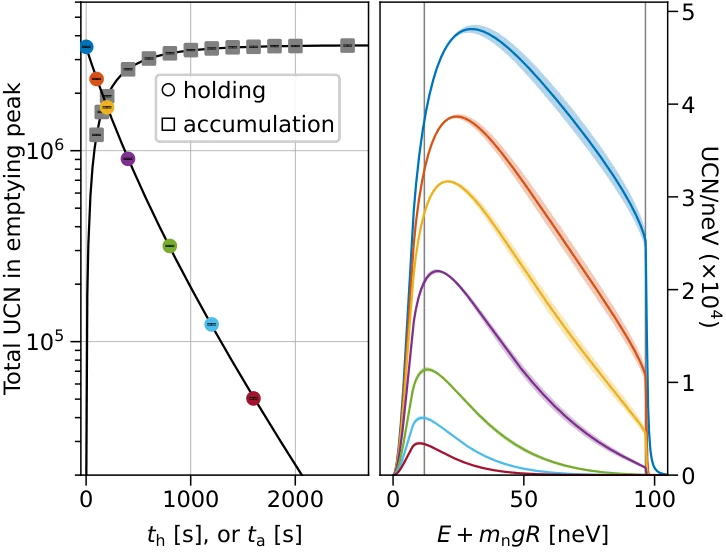

Figure 5 is the most useful summary of the source characterization. The left panel varies total extracted UCN number with holding time at fixed $t_a=1500\,\mathrm{s}$ and with accumulation time at fixed $t_h=0\,\mathrm{s}$, then fits both scans with the authors' physical model. The right panel converts the holding scan into in-situ total-energy spectra, including fit uncertainty bands. The visible trend is the expected one: longer holding removes higher-loss components, reducing total population while reshaping the spectrum toward the stored low-energy component.

The evidence supports the paper's main source-performance claims because the same apparatus is tested in continuous extraction, accumulation, delayed extraction, and spectral-reconstruction modes. The strongest result is operational: the source is not just a short commissioning pulse but a machine that ran for 60 days under beam. The main caveat is that the paper characterizes the source, not the full downstream physics sensitivity of any one experiment. The spectral results are also model-dependent: the reconstructed in-situ spectra rely on fitted storage and extraction parameters, so they are best read as a calibrated source model rather than a direct energy-resolved detector measurement.
