Quantum Memory Enables On-Demand Microwave-Optical Transduction

Microwave-optical transduction is one of the hard interface problems in distributed quantum hardware: superconducting qubits operate naturally at microwave frequencies, while long-distance links need optical photons. Many transducer proposals try to convert photons directly, but direct conversion has to fight efficiency, noise, timing, and cryogenic integration at once. This paper takes a different route. It treats transduction as a quantum-memory operation: store a microwave excitation in a Rydberg ensemble, then retrieve it on demand as an optical photon.

Core Contribution

The main claim is not only that microwave-to-optical conversion can be performed in cold atoms, but that memory-assisted conversion changes the operating model. The authors propose an on-demand microwave-optical quantum transducer, or OMQT, based on cascaded electromagnetically induced transparency. In the scheme, an incoming microwave field is mapped into a collective highly excited Rydberg state, held for a programmable time, and later read out through an optical transition.

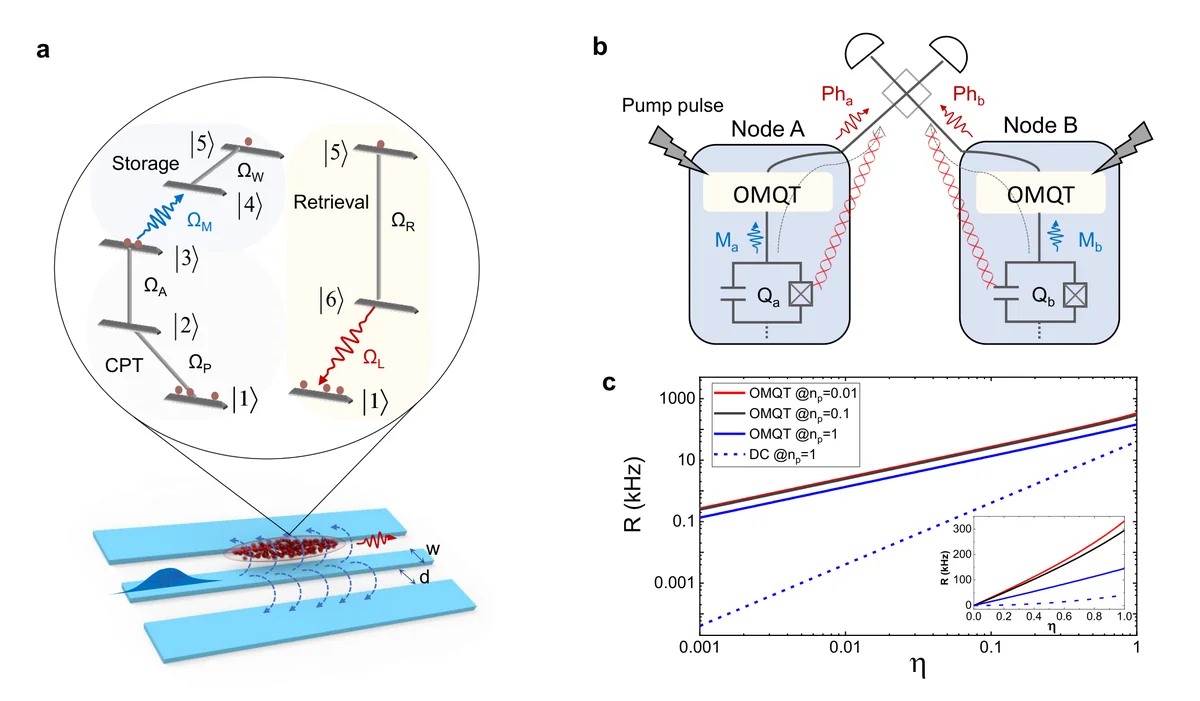

Figure 1 lays out both the device concept and the network motivation: a cigar-shaped atomic ensemble above a coplanar waveguide acts as the microwave interface, while optical retrieval supplies the telecom-facing side of a repeater-style node.

The genuinely new element is the combination of transduction and storage in the same atomic medium. That matters because timing control is not an add-on in quantum networks; remote entanglement generation depends on synchronizing probabilistic events. The paper’s rate model argues that even when conversion efficiency is below unity, on-demand storage can improve entanglement generation compared with direct conversion because it reduces the cost of waiting for successful remote events.

Technical Approach

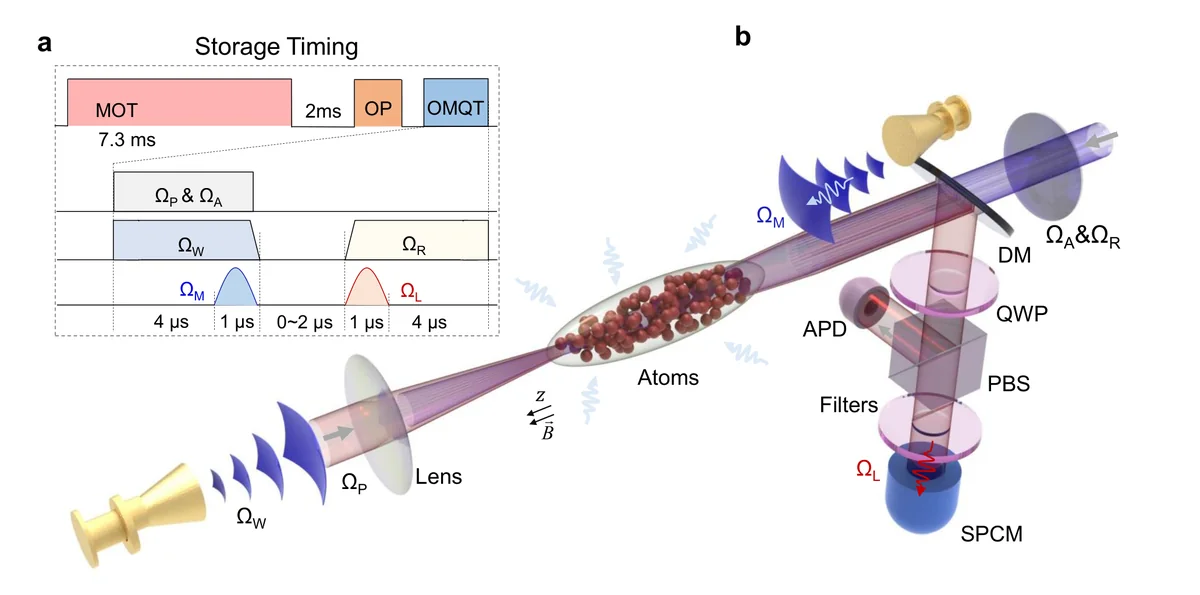

The experiment uses a cold atomic ensemble with a six-field sequence: magneto-optical trap loading, optical pumping, microwave input, write and read controls, and auxiliary fields. The microwave photon is slowed and stored through a Rydberg EIT process; the stored excitation is retrieved optically using a second EIT pathway. The contact-sheet pages show the timing diagram, the optical and microwave layout, and the separation between input microwave pulses, slow-light pulses, retrieved optical pulses, and recalled noise.

Figure 2 is useful because it makes clear that the demonstration is not a cavity-enhanced solid-state device. It is a free-space cold-atom setup with antennas, lenses, polarization optics, filters, and single-photon detection. That choice is central to the paper’s argument: the authors want high microwave optical depth without requiring optical cavity coupling, which is often a difficult cryogenic constraint.

The paper models the efficiency with a microwave optical depth $d_M$ that can be very large for Rydberg transitions. In the idealized scaling discussed around the storage data, the fitted optimal-storage form approaches unity as $d_M$ increases, with the reported fit behaving like $\eta_I = 1 - 80796/d_M$. The experimental question is whether that favorable scaling survives single-photon-level operation and short storage delays without excess noise.

Results and Analysis

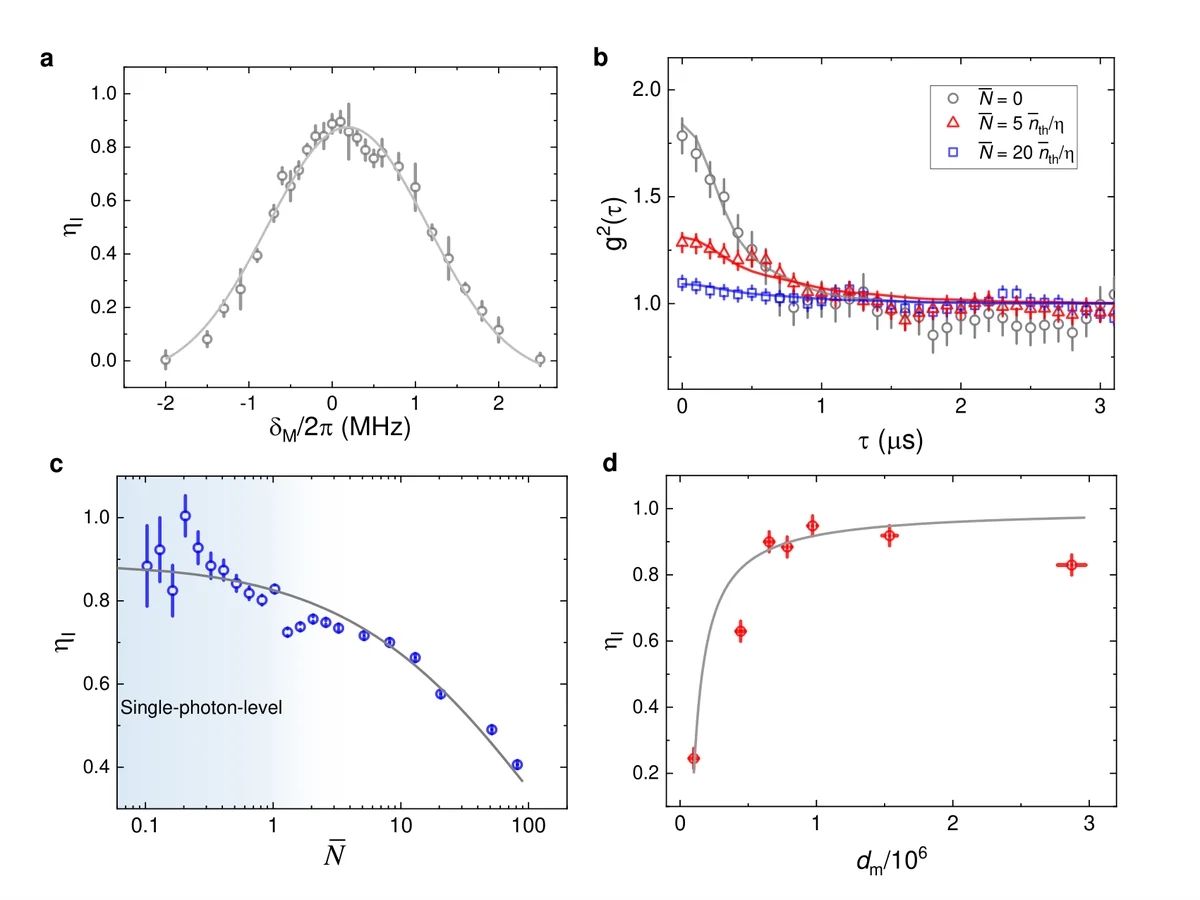

The strongest supported result is the proof-of-concept conversion experiment. The authors report on-demand microwave-to-optical transduction with 2.3 MHz bandwidth, a noise-equivalent temperature of 26 K, and around 90% area-normalized storage efficiency. In the storage-efficiency analysis, the fit in Figure 4 gives $\eta_0 = 88\%$ and a dephasing rate of $\gamma_0/2\pi = 12.8$ kHz. Those numbers support the central physical point: the ensemble can store microwave excitations with modest decoherence on the demonstrated timescale.

Figure 4 also gives the most compact view of the evidence. It combines efficiency versus microwave pulse width, second-order autocorrelation measurements of retrieved optical photons at several noise levels, efficiency versus input photon number, and scaling with microwave optical depth. The single-photon-level shaded region is important because the claimed application is quantum networking, not classical frequency conversion.

The noise analysis is more mixed. Figure 3 decomposes recalled noise components after a 50 ns storage time and plots area-normalized storage efficiency and recalled noise versus storage time. The paper reports that the count data were collected over 2 × 10^4 cycles, with fits to Gaussian and exponential decay functions and error bars from three measurements. That is enough to support a controlled laboratory demonstration, but not enough to establish deployed transducer performance.

Limitations

The main caveat is scale. The demonstrated system is a proof-of-concept cold-atom transducer, while several headline implications depend on extrapolating to cryogenic, integrated, high-efficiency interfaces near superconducting processors. The paper argues that the approach is cryogenically compatible and extendable to high single-photon conversion efficiency, but the contact-sheet figures do not show an integrated cryogenic experiment with solid-state qubits.

A second caveat is that the reported efficiency is area-normalized storage efficiency, not a complete end-to-end quantum network efficiency including coupling, filtering, detection, fiber transmission, and synchronization overhead. The work is still meaningful because it isolates a hard memory-transduction step and measures it carefully. It should be read as a credible atomic-interface demonstration, not as a finished repeater module.
