Mechanistic Tumour Dynamics Extend Oncology Endpoint Forecasting

Oncology trials often face the same interim-decision problem: tumour measurements arrive early, while progression-free survival and overall survival remain censored. A survival analysis based only on accumulated events has limited information at these early cut-offs, while repeated sum-of-longest-diameter measurements can already describe how a patient's tumour burden is changing. PIONEER addresses that gap by fitting tumour growth and event timing in one Bayesian joint model, then deriving PFS, OS, objective response, and remaining-trial forecasts from the same posterior.

Core Contribution

The central idea is to make tumour dynamics the bridge between immature longitudinal data and immature time-to-event endpoints. The paper does not treat SLD as a preprocessing step or a plug-in biomarker. Instead, it estimates each patient's latent tumour trajectory and passes tumour-derived time-varying covariates into a multistate hazard model. Event data also feeds back into the latent state through the joint likelihood, so the model is not a two-stage pipeline where uncertainty is frozen after the first fit.

Figure 1 shows the full coupling: patient covariates enter both the mechanistic SLD submodel and the illness-death-with-dropout submodel, while $W_i(t)$ carries tumour-derived summaries into the hazards.

That coupling is the paper's main technical claim. It matters because interim oncology decisions are usually made exactly when the endpoint curves are least informative and the longitudinal tumour data are most informative.

Technical Approach

The mechanistic component represents target-lesion burden with two latent compartments: a treatment-responsive component and a refractory component. Growth is attenuated with a Gompertz-style term, while sparse and noisy SLD observations are linked to the latent state through an observation model. The resulting posterior gives patient-specific tumour trajectories rather than only observed SLD points.

The event component is a five-transition multistate model. Patients begin progression-free, can progress, die directly, or drop out, and can later die after progression or after leaving trial follow-up. Transitions out of the initial state use clock-forward time, while post-progression death and off-trial death use sojourn time. This distinction is important: the model treats death and dropout as continuously observed weekly hazards, but non-target progression is gated by scheduled tumour assessments.

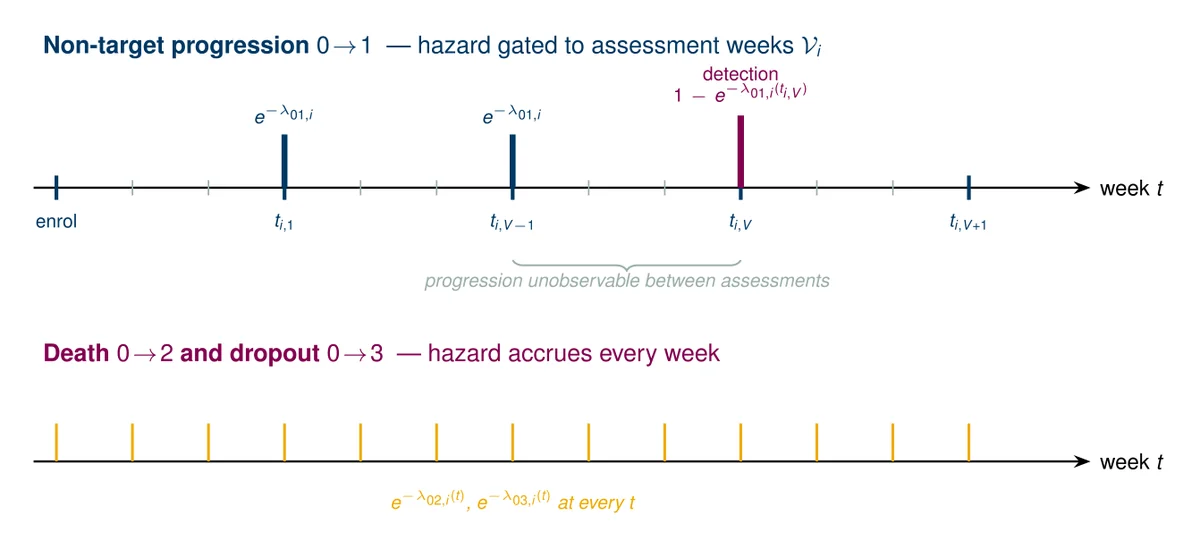

Figure 3 makes that observation model explicit. Progression can only be detected at visits, while death and dropout can occur on any week of the analysis grid.

Endpoint prediction is then performed by posterior forward simulation. For each posterior draw, PIONEER routes a patient through competing event times, combines deterministic target-lesion progression with stochastic non-target progression, and reads off PFS and OS from the realized path. Conditional forecasts start from the observed patient state at the data cut-off; unconditional forecasts start from treatment initiation. This gives the endpoints a common probabilistic source instead of fitting SLD, PFS, and OS in separate models and reconciling them afterward.

Results and Analysis

The case study uses extensive-stage small-cell lung cancer data from two trials, with 497 patients across Lilly CXCR4 target arms and Amgen Darbe historical arms. The paper evaluates dynamic prediction by leave-future-out cross-validation at interim enrolment cut-offs, then compares the model's posterior predictive endpoint curves with the mature Kaplan-Meier readout.

The headline empirical result is early calibration under severe censoring. At month 4 of enrolment, with only 9 patients observed, the PFS forecast covers the mature month-19 Kaplan-Meier curve. At month 11, with 39 patients observed, the OS forecast has converged toward the mature curve, giving at least 8 months of advance forecasting. The authors also show posterior predictive checks for tumour burden: progressed patients' SLD paths are fitted around observed measurements and event times, while censored patients receive forward tumour and RECIST-category forecasts beyond their last scan.

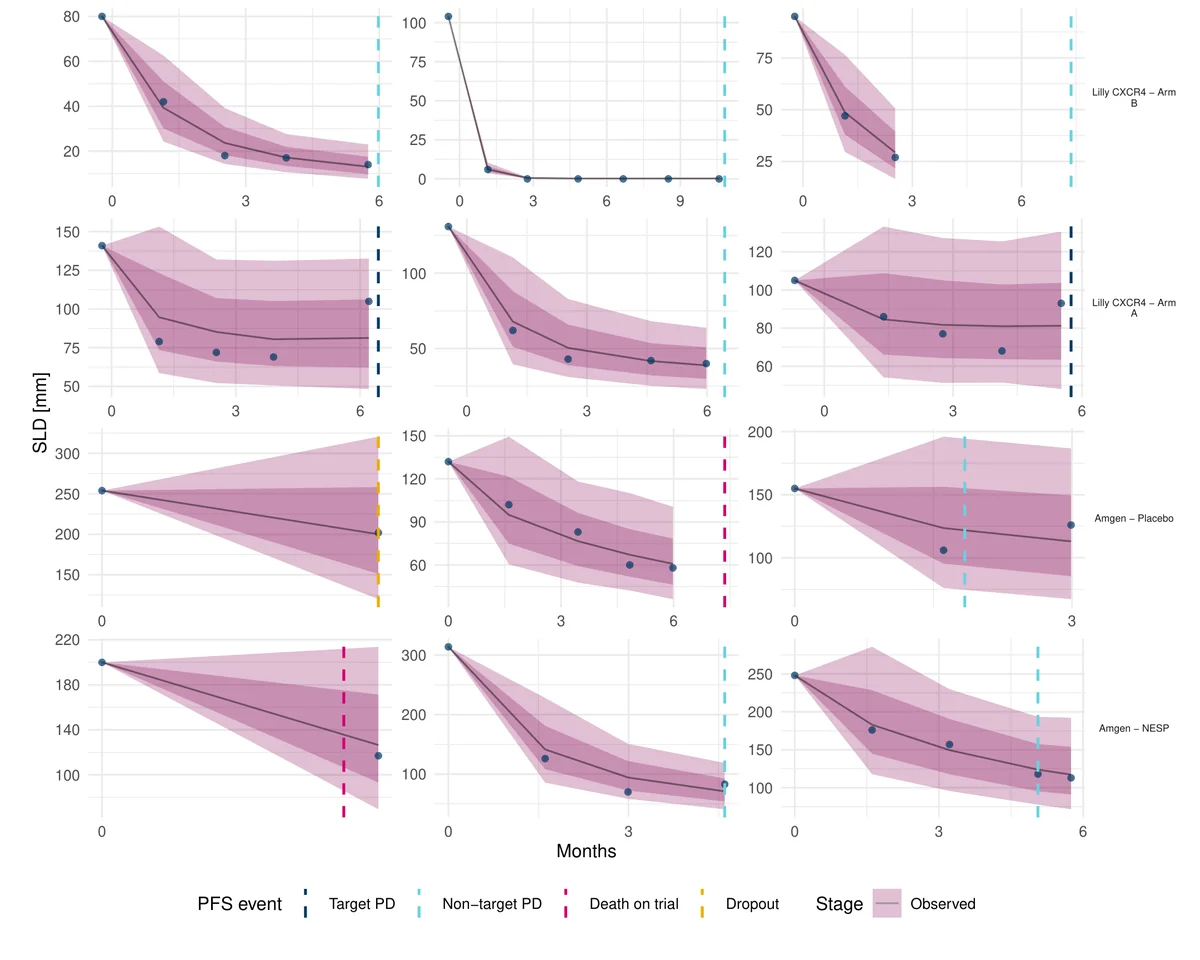

Figure 6 is useful because it tests the claimed mechanism rather than only the final endpoint curves: if the latent SLD trajectories were visibly misaligned with observed progression cases, the downstream PFS forecasts would be harder to trust.

The evidence supports PIONEER as a promising trial-monitoring framework, but the scope is narrower than the modelling architecture. The strongest support comes from one disease setting with retrospective cross-validation, not from prospective decision use across multiple oncology indications. The model also depends on scheduled-assessment assumptions, transition structure, and mechanistic SLD choices that may need revalidation when imaging cadence, dropout mechanisms, or post-progression follow-up differ. The practical takeaway is therefore specific: when early tumour measurements are dense enough and survival events are still sparse, a joint mechanistic-state-space model can use those longitudinal measurements to produce calibrated endpoint forecasts at interim cut-offs.
