Hybrid X-Ray Optic Raises IAXO Signal Reach

Solar axion searches are limited by a practical optics problem: the expected X-ray signal is faint, extended across the solar core, and concentrated in energy bands that do not map cleanly onto a standard astronomical telescope design. BabyIAXO and IAXO also impose a large 700-mm magnet bore, so the optic has to collect area without loading thin mirror shells beyond what fabrication and mounting can tolerate. This paper presents an optimized X-ray telescope design for that setting, tying the shell geometry, mounting scheme, coating stack, and detector-plane spot size to the axion signal model rather than to a generic point-source astronomy requirement.

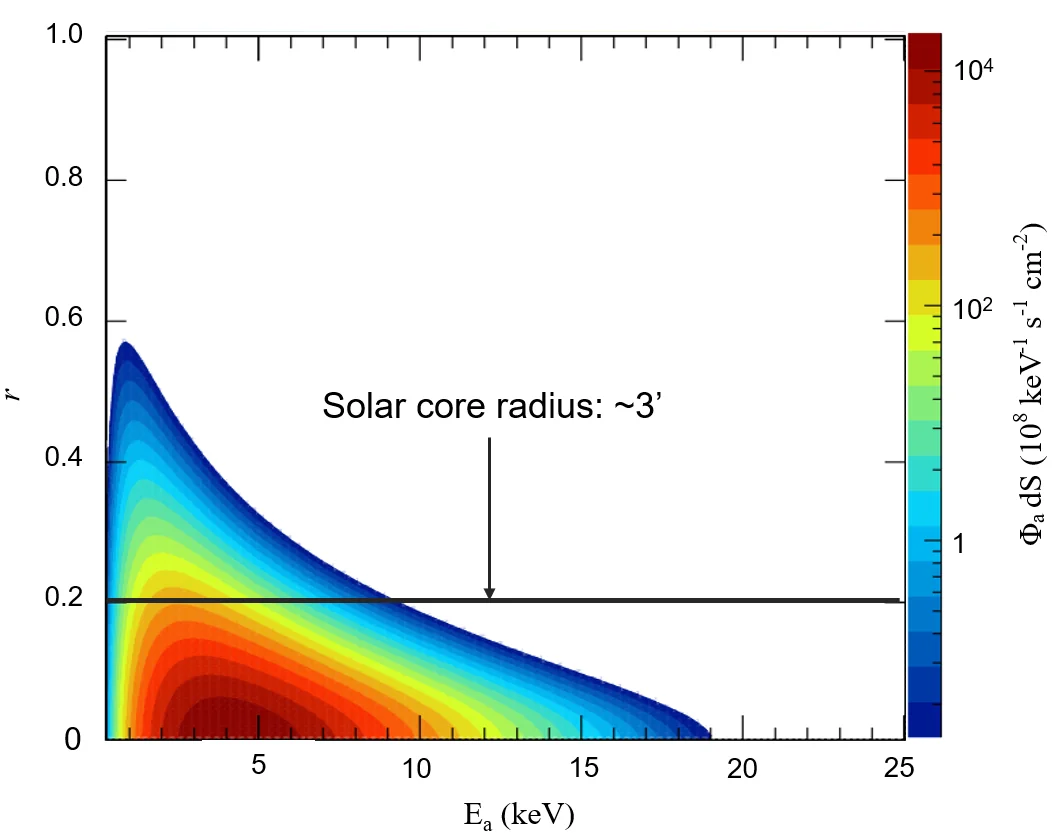

Figure 1 frames the target source model: Primakoff axions are not a uniform disk signal, and their surface luminosity varies with both energy and radius on the solar disk.

Core Contribution

The main contribution is an end-to-end optical design for BabyIAXO and IAXO that maximizes signal-to-noise ratio under the actual axion-search constraints. The authors do not treat effective area, angular resolution, and manufacturability as separate objectives. They tune the shell layout for the axion spectra and spatial distribution, then use coatings to retain reflectivity over the relevant X-ray band.

The result is a design target rather than a completed instrument measurement. Within that scope, the numbers are material: the optic is projected to cover 0.03–15 keV, exceed 2400 cm² of effective area near 1 keV, stay above 1700 cm² around 3 keV, and provide more than a 55-fold SNR increase after fabrication errors are included. For an axion helioscope, that is the quantity that matters most, because the science return is set less by a single imaging metric than by how much background can be rejected while preserving the expected solar-core signal.

Technical Approach

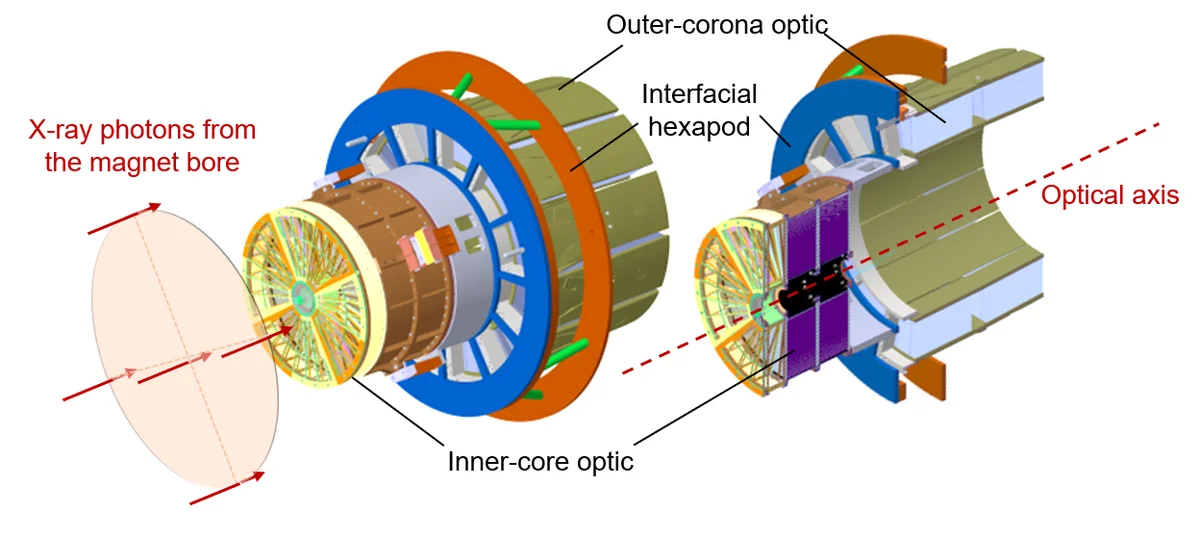

The design uses a hybrid optic mounting concept intended to cover the full magnet bore while reducing stress on the mirrors. Figure 2 shows the mechanical idea: a structure oriented toward the magnet bore, with the mirror assembly positioned along the optic axis so that large-area coverage does not require a conventional monolithic support approach.

On the optical side, the shell layout is optimized against two source properties: the energy-dependent axion spectrum and the radial distribution of emission on the solar disk. That distinction matters because an on-axis source at infinity is not the same problem as a few-arcminute solar-core emission profile. The paper therefore evaluates both the conventional point-spread function and the focal spot expected for the axion signal distribution at the detector plane.

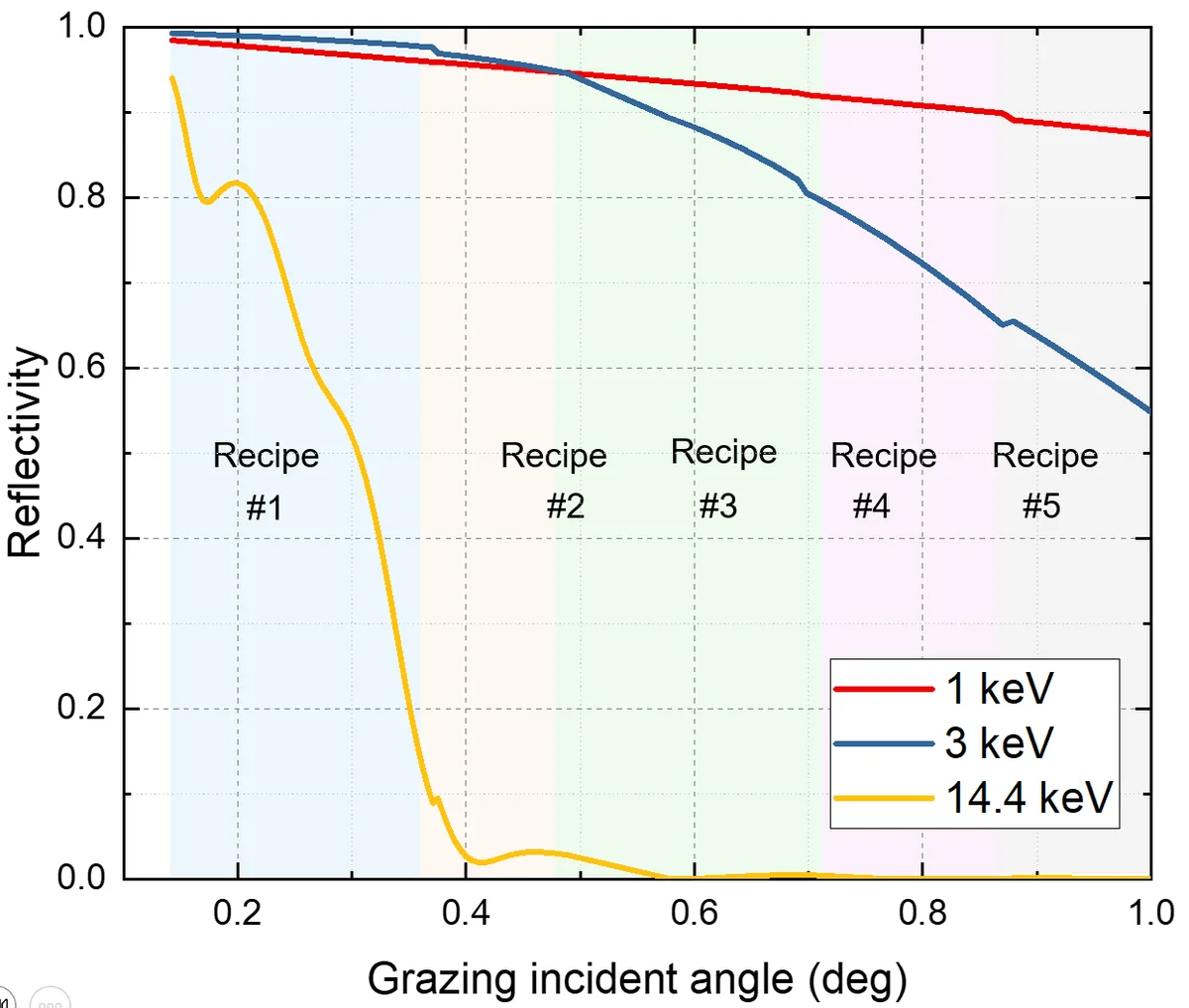

The coating design is the other major lever. Figure 3 reports the reflectivity behavior of the combined coating recipes at 1 keV, 3 keV, and 14.4 keV as a function of grazing incidence angle. Those energies correspond to different parts of the physics case: the lower-energy ABC axion spectrum, the Primakoff peak around 3 keV, and the 14.4 keV line associated with nuclear transitions. The design problem is therefore not simply to maximize soft X-ray throughput, but to avoid giving up too much response at higher energy while maintaining area where the expected flux is largest.

Results and Analysis

The paper reports a half-power diameter of about 46 arcseconds for an on-axis point source at infinity. For the more relevant extended axion signal, modeled within an approximately 3-arcminute-radius solar core, the focal-spot HPD broadens to about 120 arcseconds. That larger number is not a failure of the design; it reflects the source geometry. The question is whether the focused signal remains compact enough relative to the detector background to improve SNR, and the authors’ simulations say yes.

The effective-area results are the strongest part of the case. Area above 2400 cm² near 1 keV is well matched to the ABC peak, while area above 1700 cm² around 3 keV preserves sensitivity near the Primakoff peak. The broad 0.03–15 keV response also keeps the design from being tuned too narrowly to a single model component. The reported more-than-55-fold SNR gain, including fabrication errors, is the headline implication: the optimized telescope is not just cleaner imaging hardware, but a sensitivity multiplier for the helioscope.

The evidence should still be read as a design-validation result. The paper combines optical modeling, coating calculations, PSF and focal-spot simulations, and a fabrication-error budget, but it is not yet a full end-to-end measurement of a built telescope operating inside BabyIAXO or IAXO. The design appears well matched to the experimental constraints; the remaining risk is whether fabrication, alignment, coating performance, and detector integration preserve the simulated gains at instrument scale.
