GaN Polariton BIC Laser Forms Bright Solitons

Bound states in the continuum are usually discussed as dark optical modes: they sit inside the radiation continuum but avoid coupling out because of symmetry or interference. That makes them attractive for high-Q photonics, but it also creates a practical tension for polariton devices. A mode that is protected from radiation is difficult to observe directly, yet polariton lasing and nonlinear self-organization depend on measuring how the mode fills, shifts, and reshapes under pumping. This paper studies that problem in a GaN waveguide patterned with a one-dimensional grating, where a symmetry-protected polaritonic BIC appears at the center of momentum space and becomes the lasing state under nonresonant excitation.

Core Contribution

The main claim is not only that the authors observe a polariton BIC in GaN, but that this BIC can host a bright soliton once polariton density is high enough. The mechanism is specific: near the BIC, the polariton dispersion has negative effective mass along the relevant direction, while polariton-polariton and polariton-reservoir interactions are repulsive. In that sign combination, the interaction-induced blueshift can balance dispersion and localize the condensate. The result is a lasing mode whose energy, linewidth, real-space size, and momentum-space width evolve consistently with soliton formation rather than with ordinary extended-mode condensation.

That is the useful distinction. The BIC first appears as a suppression of emission and a polarization vortex, both signatures of the symmetry-protected state. Above threshold, the same state becomes visible through nonlinear population build-up and blueshifts away from its perfectly dark condition. The paper therefore connects three normally separate pieces: BIC topology, polariton lasing, and nonlinear soliton physics in a wide-bandgap semiconductor platform.

Technical Approach

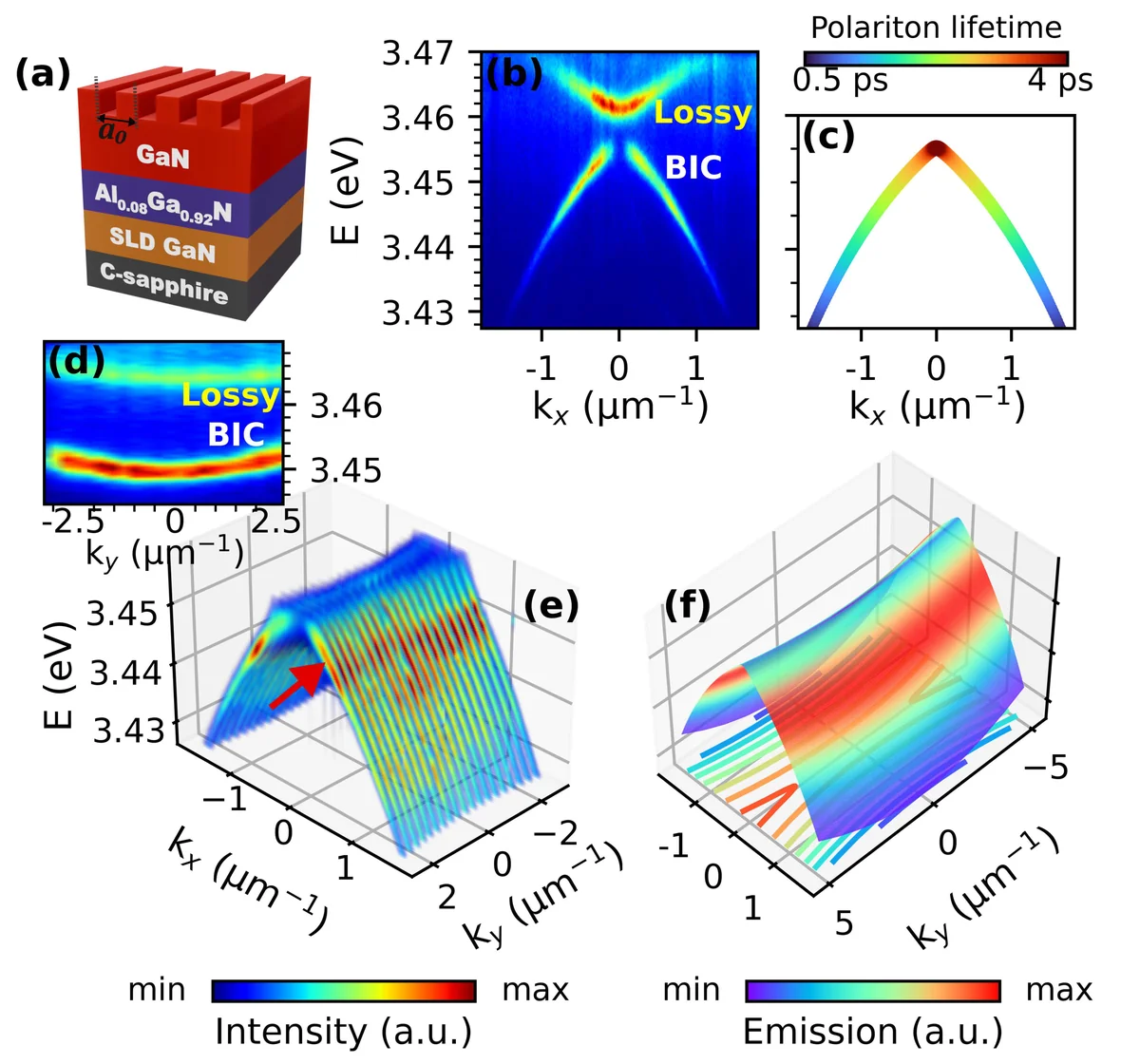

The device is a GaN waveguide with a one-dimensional grating. The grating folds guided polariton modes so that a symmetry-protected BIC occurs near $k_x = k_y = 0$. Angle-resolved photoluminescence maps the polariton dispersion along directions perpendicular and parallel to the grating, while polarization-resolved measurements probe the vortex structure around the BIC. Figure 1 shows the device concept and the measured versus calculated dispersion surfaces, including the BIC at the center and the transverse parabolic behavior at nonzero $k_x$.

The paper then uses pump-power-dependent spectroscopy to follow the transition into lasing. At low pump, emission is weak at the BIC because the state is protected against radiation. As the pump rises, the polariton population accumulates at the BIC and the emission line narrows. The spectra are reported at $k_x = 0.15\,\mu\mathrm{m}^{-1}$, and the integrated BIC emission is measured over 3.456–3.462 eV. The threshold curve and linewidth collapse provide the lasing evidence; the subsequent blueshift and wavefunction reshaping are the evidence for the soliton interpretation.

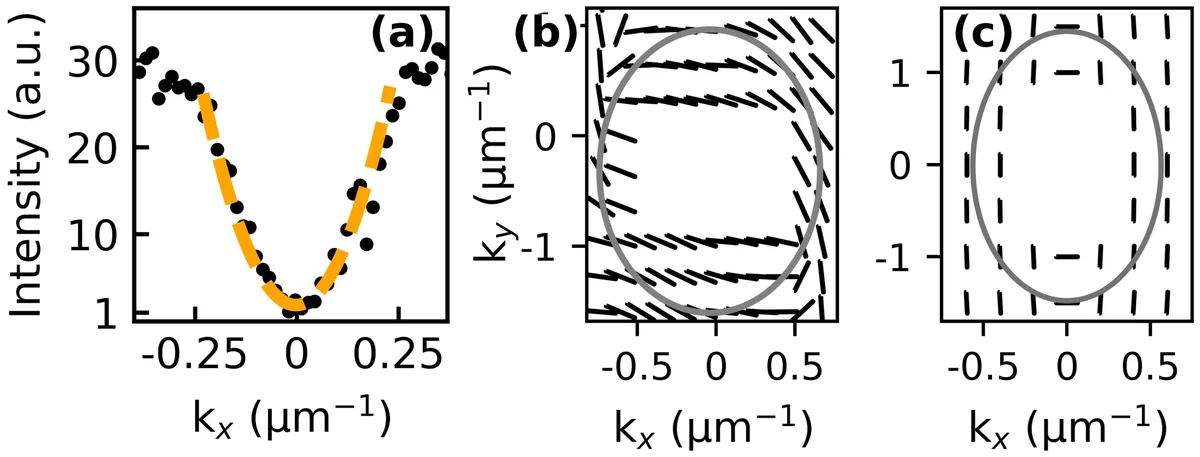

Figure 2 is important because it addresses the identification of the BIC itself rather than the nonlinear state. The measured intensity minimum follows the expected quadratic behavior, and the linear polarization orientation winds around the dark point. The central experimental region is weak, as expected for a BIC, so the polarization vortex is inferred from the surrounding signal and compared with theory.

Results and Analysis

The experimental evidence has two layers. First, the BIC assignment is supported by the suppression of emission at the symmetry-protected point, the measured polarization vortex, and agreement with calculations. The theory panels use a finite exciton lifetime of 2 ps, which matters because the experimental BIC is not an ideal infinite-Q mathematical state; it is embedded in a real polariton system with material loss and finite measurement resolution.

Second, the lasing and soliton claims are tied to pump-dependent observables. Figure 3 reports spectra across powers normalized to the lasing threshold using a 28 µm pump spot. The BIC emission intensity shows a threshold-like increase, while the linewidth of the BIC peak decreases at threshold. At high pump, a detector ghost appears at 3.45 eV because the BIC peak is intense, a small but useful reminder that the strongest signal also creates measurement artifacts.

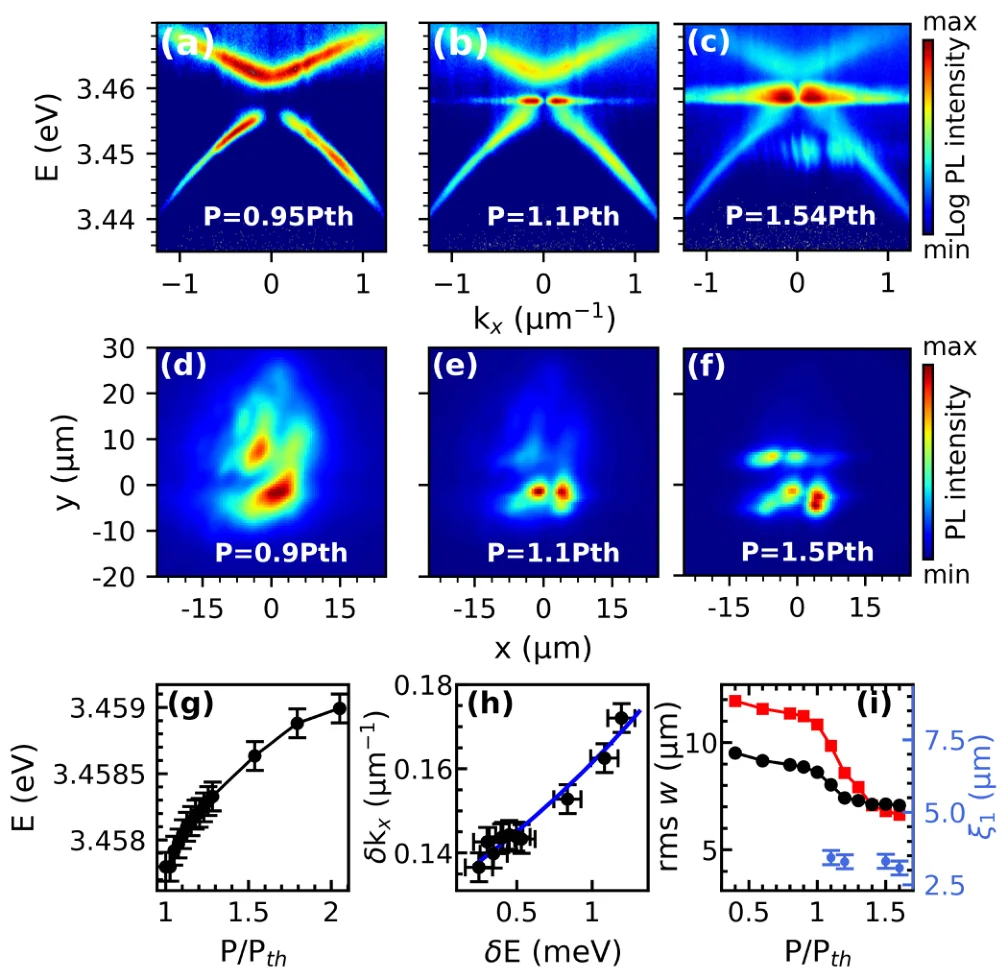

The soliton evidence comes from the combined momentum-space and real-space data in Figure 4. Above threshold, the BIC blueshifts with pump power and broadens in $k$-space, while the real-space emission becomes localized. The authors compare the measured soliton size in momentum space against the soliton blueshift energy and report agreement with a theoretical curve. They also track root-mean-square widths along $x$ and $y$, separating the direction associated with the BIC from the transverse direction. This multi-observable consistency is stronger than a single linewidth or intensity threshold would be.

A smaller-pump experiment in Figure 5 tests the localization picture under a different excitation geometry. The measured and simulated real-space emission profiles are fitted to extract the gap-soliton width versus pump, with corresponding momentum-space widths. The trend again supports the interpretation that increasing density compresses the state in real space while changing its reciprocal-space width.

The evidence is convincing for the existence of nonlinear BIC lasing and consistent with bright soliton formation in this device. The main caution is scope. The paper demonstrates one material platform and one patterned waveguide geometry, with theory used to interpret the density-dependent wavefunction rather than a direct phase-sensitive soliton measurement. For device physics, that is still a meaningful result: it shows that a nominally dark polariton BIC can become an active nonlinear lasing state whose spatial profile is set by the balance of negative mass and repulsive interactions.
