Flying Focus Extends Thomson Scattering Interaction

Relativistic Thomson scattering can turn compact laser-plasma accelerators into bright x-ray sources, but the interaction is short: a tightly focused laser pulse and a relativistic electron bunch cross through one another over a limited distance. Raising the laser intensity is not a clean fix, because stronger fields can push the interaction into nonlinear regimes that broaden the spectrum and reduce spectral density where many applications need it. This paper reports an experimental route around that trade-off: make the focus itself move with the electron bunch.

Core Contribution

The central result is an experimental demonstration of flying-focus enhanced Thomson scattering. The authors combine longitudinal chromatic aberration, angular dispersion, and group-delay dispersion so that different colors focus at different positions and times. By tuning the group-delay dispersion, the focal point follows the near-counterpropagating electron bunch produced by a laser wakefield accelerator, extending the spatial and temporal overlap without relying on a fully compressed, high-$a_0$ pulse.

That distinction matters. Conventional focusing concentrates the pulse into a short, intense interaction. The flying-focus configuration deliberately spreads the pulse in time and arranges the focal velocity so the electrons remain near the focus longer. The result is not just a higher-yield operating point, but a more controlled interaction that can preserve useful spectral density while reducing nonlinear effects.

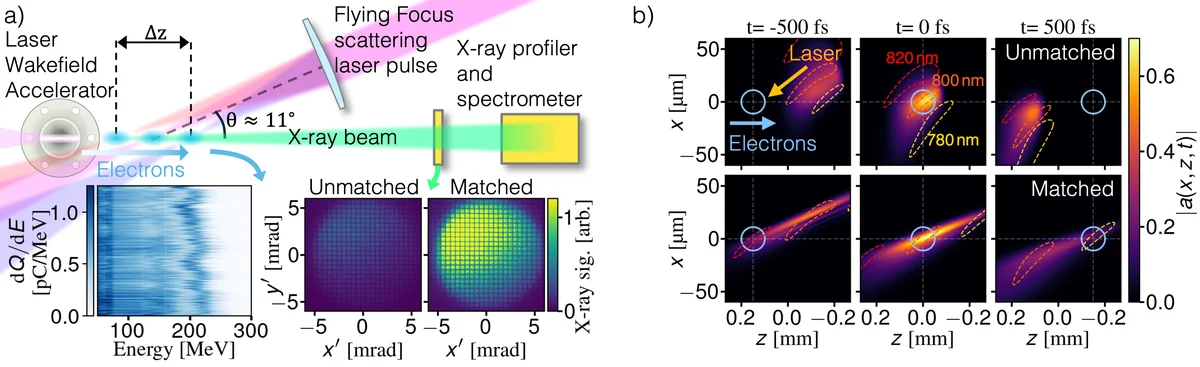

Figure 1 captures the mechanism: the zero-GDD chromatic focus is crossed only briefly by the electron bunch, while the matched-GDD case keeps the bunch near the focus across the interaction region.

Technical Approach

The experiment uses a laser wakefield accelerator to generate the electron bunch and a second scattering pulse modified by spatiotemporal optics. The scattering pulse is engineered with chromatic focusing and angular dispersion, then its focal velocity is controlled by adjusting group-delay dispersion. This lets the researchers compare ordinary compression against a matched flying-focus condition in which the focus tracks the electron trajectory.

The diagnostic strategy combines x-ray profile and spectral measurements with modeling of the laser field and Thomson emission. The key experimental control knob is the group-delay dispersion of the scattering laser: changing it changes the motion of the focal point, so the measured x-ray signal can be tested directly against the expected velocity matching condition.

Results and Analysis

The strongest experimental evidence is the group-delay-dispersion scan. The measured x-ray signal peaks when the flying-focus trajectory matches the electron trajectory, rather than at zero GDD, which corresponds to optimal pulse compression. The model reproduces the trend for a best-fit flying-focus angle of 8.5°, with uncertainty bands shown by nearby model curves. This is a direct test of the mechanism: if the gain came only from pulse energy or ordinary focusing, the optimum would not be expected to shift to the matched flying-focus condition.

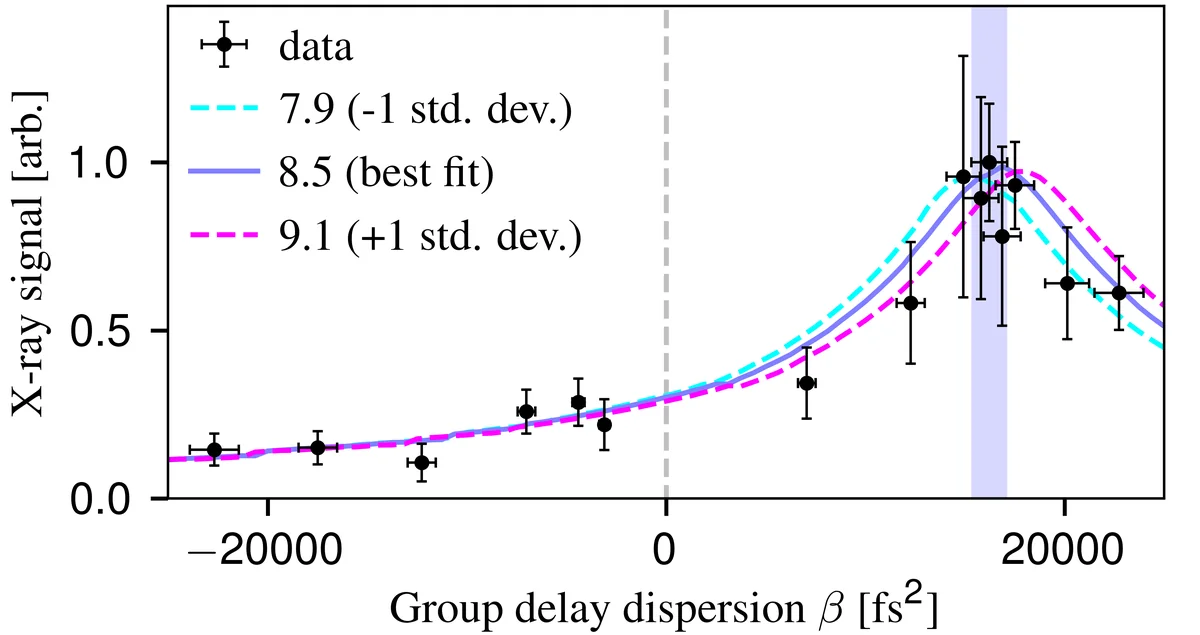

Figure 2 is the key experimental plot because it connects the control knob, GDD, to measured x-ray yield and to the modeled focal trajectory.

The timing scan adds a second check. The paper reports that synchronization sensitivity also depends on GDD, with the highest timing sensitivity occurring in the matched-focus region. That behavior is consistent with a trajectory-matched interaction: when the focus is engineered to follow the bunch, timing becomes a sharper experimental parameter rather than an incidental alignment detail.

The spectral measurements support the lower-nonlinearity interpretation. For the matched flying focus, the measured detector-incident x-ray spectrum agrees with Ptarmigan simulations after scaling by the measured photon yield. A simulated fully compressed pulse reaches higher photon energies and has a more synchrotron-like shape, but it gives lower spectral density below MeV energies incident on the detector than the matched flying-focus case. The practical implication is narrow: the flying focus is not simply “more x-rays” in every part of phase space. It shifts brightness toward the spectral region favored by the extended, lower-$a_0$ interaction.

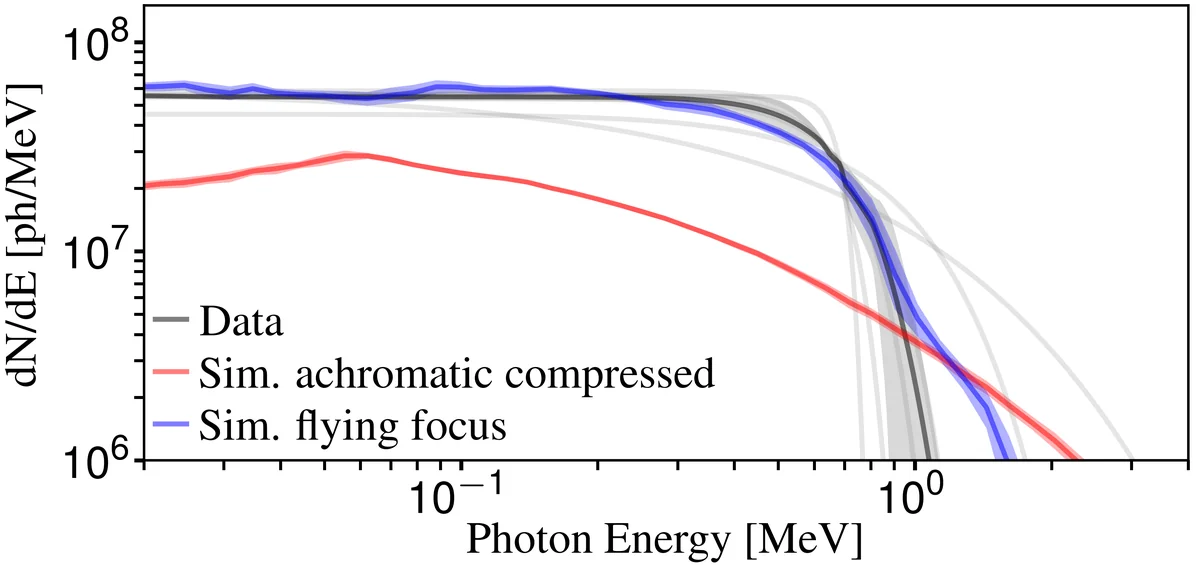

Figure 4 shows the measured spectra against the matched-focus simulation and the fully compressed comparison, making the trade-off visible.

The projected scaling is larger than the measured demonstration. Ptarmigan simulations compare matched flying-focus and conventional focusing cases at different electron energies and collision angles, including configurations with $a_0 = 0.6$ versus 5.5 and $a_0 = 1.0$ versus 16.6. Those simulations suggest orders-of-magnitude gains in spectral density and brightness under favorable conditions. The paper supports that direction, but the strongest evidence remains the measured yield optimization and spectral agreement in the demonstrated setup, not the full projected brightness increase.
