Dense Plasma Experiments Reveal Reduced Ion Stopping

Ion stopping in dense plasma sets how charged-particle energy is deposited in inertial-confinement-fusion targets and astrophysical matter, but the strong ion-plasma coupling regime has been hard to isolate experimentally. The difficulty is not just making a dense plasma. A convincing measurement also has to know the projectile charge state, ion spectrum, target state, and beam timing well enough that an apparent stopping anomaly is not an artifact of charge exchange or target uncertainty. The authors address that problem with a short-pulse, quasi-monoenergetic carbon-ion beam and simultaneous measurements of transmitted energy and charge state.

Core Contribution

The central result is a direct experimental benchmark for ion stopping beyond the weak-coupling assumptions built into common dielectric-response and binary-collision models. The experiment sends laser-accelerated carbon ions, centered around 583 keV/u or about 7.0 MeV for C5+, into a heated foam plasma with electron temperature $T_e \approx 17$ eV and density $n_e \approx 4\times10^{20}$ cm$^{-3}$. The paper reports that the ion-plasma coupling parameter reaches $Z \approx 3.8$, with related weak-coupling measures around $g \approx 2.1$ and $\eta \approx 1.1$, placing the beam-plasma interaction outside the nominal range for the standard linear models.

That matters because the measured stopping power is smaller than those models predict. The paper’s interpretation is specific: nonlinear screening from many-body interactions and quantum softening of the electron-ion interaction both reduce the effective stopping, and a hybrid calculation using molecular dynamics with quantum corrections matches the data more closely than the alternatives tested.

Technical Approach

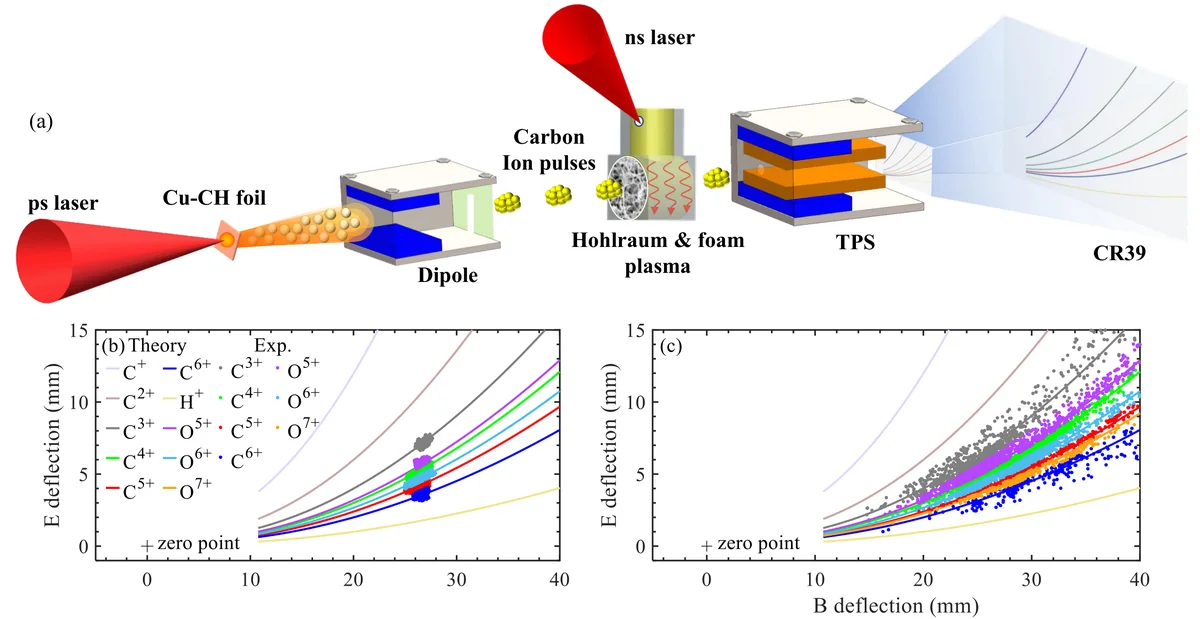

Figure 1 shows the experimental chain. A picosecond laser drives a broad-spectrum ion beam from a CH-coated copper foil through target-normal sheath acceleration; a magnetic dipole and slits select ions with a common momentum-to-charge ratio; time of flight then separates ion species and charge states before they enter the plasma target. The target is a foam heated by nanosecond-laser-driven hohlraum radiation, and transmitted ions are recorded with a Thomson parabola spectrometer coupled to CR39 film.

The key design choice is to pair energy-loss measurements with charge-state measurements. In dense plasma, the projectile charge state evolves while the ion slows, and different stopping theories can appear to disagree simply because they assume different effective charges. The authors model that evolution with atomic-state population kinetics coupled to stopping calculations. Their simulations indicate that charge fractions equilibrate within roughly 0.01 mm in each calculation step, so the effective charge can be treated as depending almost instantaneously on local ion velocity along the trajectory.

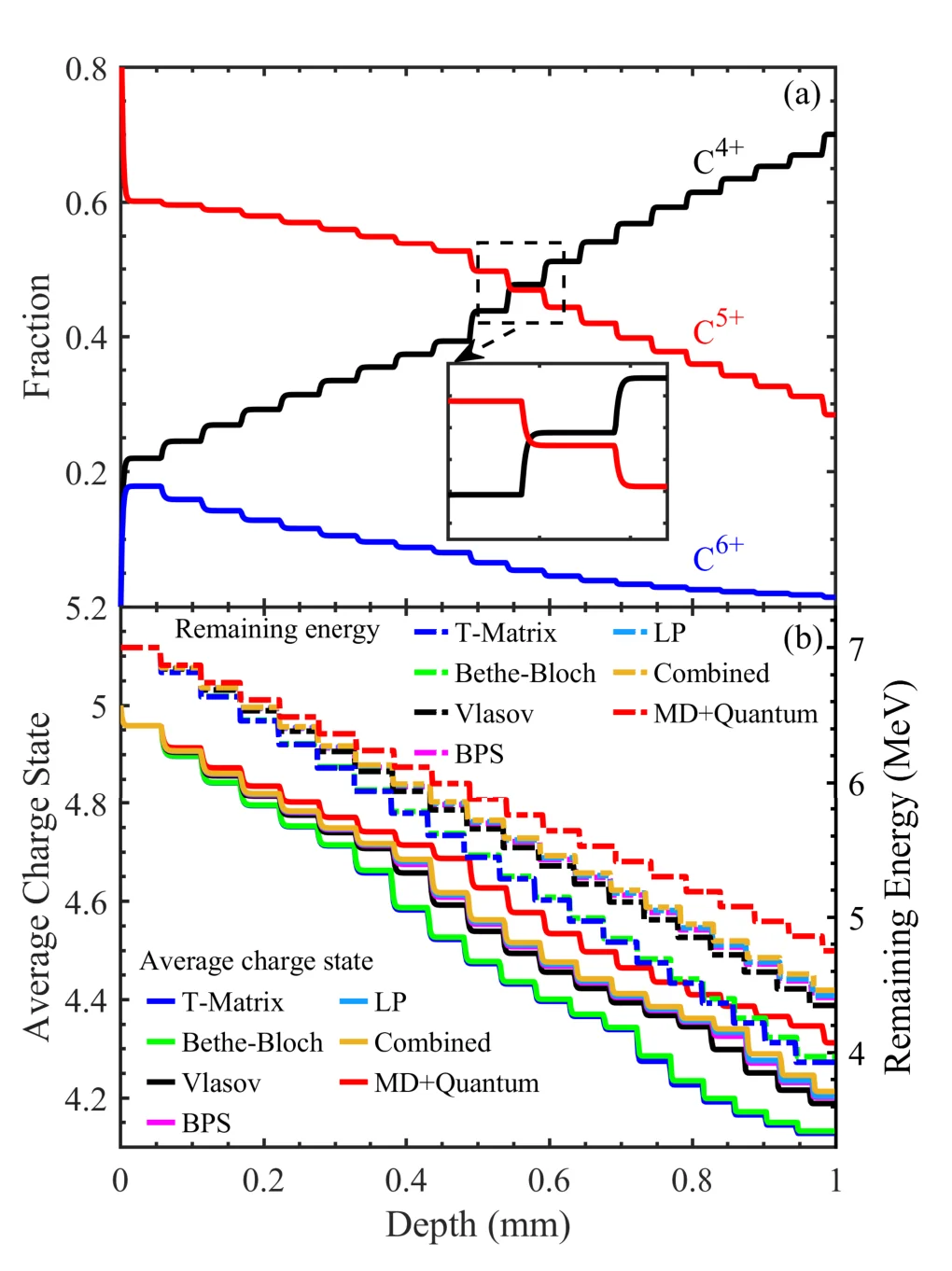

Figure 3 captures this coupling between charge evolution and stopping. In the model run shown, low charge states C1+, C2+, and C3+ are around seven orders of magnitude below the plotted fractions, while the average charge and residual ion energy change with penetration depth. The paper compares T-Matrix, Bethe-Bloch, Vlasov, Brown-Preston-Singleton, Li-Petrasso, Zwicknagel’s combined model, classical molecular dynamics, and molecular dynamics with quantum corrections.

Results and Analysis

The reference spectra and transmitted spectra show the result as a peak shift: incident quasi-monoenergetic carbon ions lose energy in the target, and the downshift of the fitted central peak gives $\Delta E$. In the plasma case, the measured energy loss is about 1.9 MeV, with the average transmitted charge state near 4.3. The comparison in Figure 4 is the strongest evidence in the paper: the common stopping models predict larger losses, mostly around 2.6–3.3 MeV, while the MD-plus-quantum calculation lies close to the experimental point at about 2.2 MeV within the stated uncertainty.

The charge-state comparison is also useful. Models that overpredict energy loss tend to underpredict the average charge state, because slower ions favor recombination over ionization. The MD-plus-quantum treatment matches the observed average charge state near 4.3, while several conventional models sit lower, around 4.1–4.25. That does not make the hybrid model a complete theory of stopping in all dense plasmas, but it does support the paper’s narrower claim: once the interaction leaves the weak-coupling regime, linear response and two-body collision approximations miss physics that matters at the measured scale.

Caveats in Practice

The evidence is strong for this parameter window, not universal. The benchmark uses carbon ions in one dense-plasma regime, around 17 eV and $4\times10^{20}$ cm$^{-3}$, with a 7.0 MeV C5+ example and a short 0.26 ns ion pulse. The authors also state that broader parameter coverage is needed, especially for slower and more highly charged ions, where coupling effects should be more pronounced. For fusion and astrophysical modeling, the practical takeaway is therefore calibrated: standard stopping models can overestimate energy deposition in this strong-coupling regime, and first-principles calculations that include nonlinear screening and quantum effects should be tested against measurements rather than used only as theoretical corrections.
